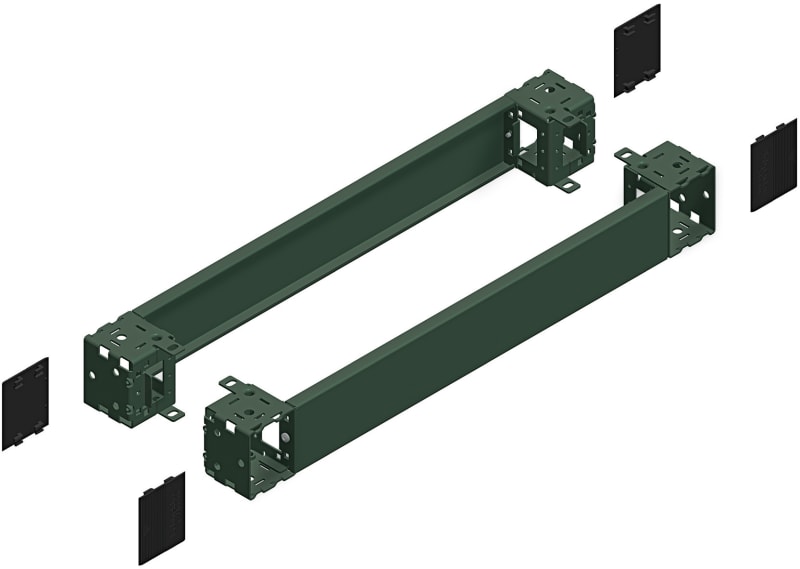

Schneider Electric NSYSPF10100 Front & rear plinth, PanelSeT SFN, PanelSeT SF, PanelSeT SM, for electrical enclosure W1000MM, plinth H100MM
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric NSYSPF10100 Front & rear plinth, PanelSeT SFN, PanelSeT SF, PanelSeT SM, for electrical enclosure W1000MM, plinth H100MM is listed under Enclosures / Enclosure Accessories. Sales unit: pcs; Range: PanelSeT; Product or component type: Plinth front; Application: Multi-purpose; Mounting support: Plinth side panels; Fixing mode: By fixing element - on structure location.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSPF10100
- EAN / GTIN
- 3606485126586
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Enclosure accessory
- Product or component type
- Plinth front
- Application
- Multi-purpose
- Nominal dimensions of the housing
- -
- Device composition
- fixing elements; 4 corner cover; 1 front panel; 1 rear panel; 4 corner
- Range compatibility
- PanelSeT SF; PanelSeT SM; PanelSeT S3D; PanelSeT CRN; PanelSeT SFN
- Mounting support
- Plinth side panels
- Fixing mode
- By fixing element - on structure location
- Colour
- Grey (RAL 7022)
- Surface finish
- Epoxy-polyester powder
- Permanent permissible load
- 1300 kg
- Height
- 100 mm
- Width
- Nominal: 1000 mm
- IP degree of protection
- IP20 (complete plinth)
- IK degree of protection
- IK10
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 11.500 cm
- Package 1 Width
- 20.000 cm
- Package 1 Length
- 102.000 cm
- Package 1 Weight
- 5.800 kg
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 48
- Package 2 Height
- 103.000 cm
- Package 2 Width
- 102.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 292.000 kg
- Country of origin
- TN
- Warranty (in months)
- 18
- Model
- Base front/back
- Depth
- 400 mm
- Max. load capacity
- 1300 kg
- Suitable for enclosure building width
- 1000 mm
- Material
- Steel
- RAL-number (similar)
- 7030
- Suitable for outdoor set-up
- No
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606485126586
- SAP 1000317641
- Code 8776346
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Interface plug-in relay, 8 A, 2 CO, 230 V AC RSB2A080P7
Schneider Electric
Schneider Electric STBNIP2311 standard Network Interface Module STB - Ethernet modbus TCP/IP - 10...100 Mbits
Schneider Electric
Mounting Plate Metal 200X300
NSYMM23SB
Schneider Electric
Schneider Electric NSYS3D10625P Wall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 1000X600X250MM, IP66, IK10
Schneider Electric
Schneider Electric Right side rotary handle INS 40..160 - black handle
28943
Schneider Electric
Metal Clamp TKK 7-10 nail 2.1X40MM
IMT23612
Schneider Electric
Schneider Electric A9F94420 ACTI9 IC60L Miniature Circuit Breaker 4P 20 A, Curve C
Schneider Electric
Schneider Electric LA7D3064 Adapter terminal block, TeSys LRD, for separate mounting of LR2D3… LR3D3…
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NSYSPF10100?
- NSYSPF10100 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is NSYSPF10100.
- What is the HS code for NSYSPF10100?
- The customs tariff (HS) code for NSYSPF10100 is 7326.90.
- Who manufactures NSYSPF10100?
- NSYSPF10100 is a Schneider Electric product in the Enclosures range.
- Is a datasheet available for NSYSPF10100?
- Yes — the NSYSPF10100 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NSYSPF10100?
- The minimum order quantity is 1.
- Is NSYSPF10100 available?
- Yes — NSYSPF10100 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
