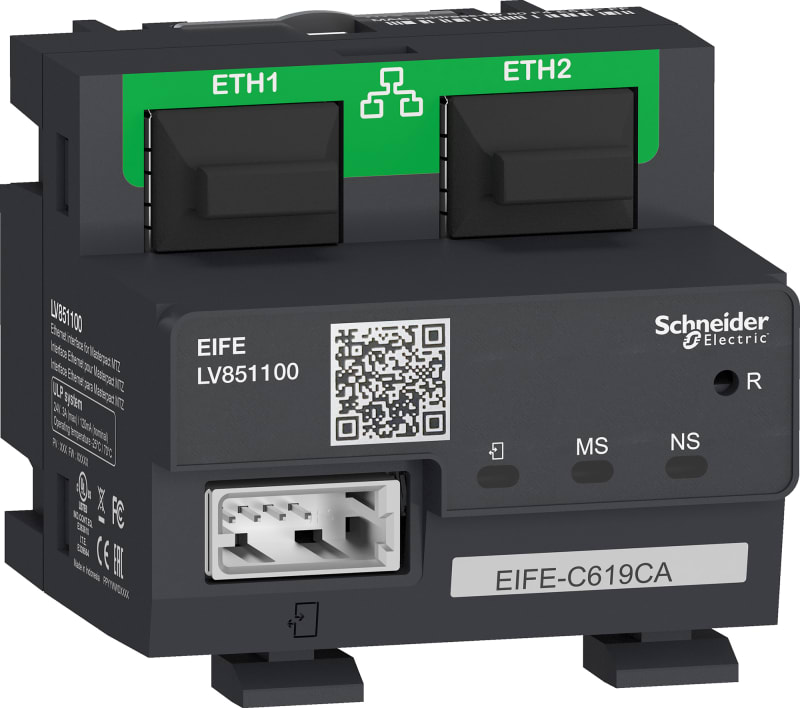

Schneider Electric Embedded Ethernet interface EIFE, MasterPact MTZ1 drawout, spare part LV851100SP
Part numberLV851100SPEAN / GTIN3606481100436HS code8517.62
Control & Automation
Fieldbus I/O
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LV851100SP EIFE integrated ethernettsett complete for Masterpact MTZ1, spare part.
Technical Specifications
- Manufacturer part number (MPN)
- LV851100SP
- EAN / GTIN
- 3606481100436
- Sales unit
- pcs
- Package quantity
- 9 pcs
- Range
- MasterPact
- Product or component type
- Ethernet interface module
- Condition of use
- With specific accessories
- Device application
- Communication
- Device mounting
- Embedded
- Communication gateway
- Ethernet TCP/IP to Modbus
- Communication network type
- ULP, CANopen on USB; Ethernet, Ethernet TCP/IP10/100 Mbps on RJ45
- Circuit breaker mounting mode
- Drawout
- Mounting support
- DIN rail
- Localisation on device
- Chassis
- Maximum supply current
- 3 A
- Power consumption in W
- 72 W
- Product certifications
- CE; EAC; FCC
- Standards
- IEC 60950; IACS E10; IEC 60947-6-2
- Height
- 51 mm
- Width
- 51 mm
- Depth
- 52.5 mm
- Product weight
- 0.075 kg
- Web server
- Embedded
- Provided equipment
- 1 instruction sheet
- Offer type
- Spare part
- IP degree of protection
- IP30
- Ambient air temperature for operation
- -20…70 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 9
- Warranty (in months)
- 18
- Number of HW-interfaces industrial Ethernet
- 2
- Certified for UL hazardous location division 1
- No
- Certified for UL hazardous location division 2
- No
- Certified for UL hazardous location group A (acetylene)
- No
- Certified for UL hazardous location group B (hydrogen)
- No
- Certified for UL hazardous location group C (ethylene)
- No
- Certified for UL hazardous location group D (propane)
- No
- Certified for UL hazardous location group E (metal dusts)
- No
- Certified for UL hazardous location class I
- No
- Certified for UL hazardous location class II
- No
- Certified for UL hazardous location class III
- No
- Supporting protocol for EtherCAT
- No
- Supply voltage DC
- 24 V
- Voltage type (supply voltage)
- DC
- Supporting protocol for TCP/IP
- Yes
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for ASI
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- No
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for LON
- No
- Supporting protocol for SERCOS
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for EtherNet/IP
- Yes
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for INTERBUS-Safety
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Supporting protocol for other bus systems
- No
- Radio standard Bluetooth
- No
- Radio standard WLAN 802.11
- No
- Radio standard GPRS
- No
- Radio standard eGPRS
- No
- Radio standard GSM
- No
- Radio standard LTE
- No
- Mobile communications standard 3G (UMTS)
- No
- IO link master
- No
- System accessory
- Yes
- Degree of protection (IP)
- IP20
- With potential separation
- No
- Fieldbus connection over separate bus coupler possible
- No
- Suitable for rail mounting
- Yes
- Wall mounting/direct mounting
- No
- Front built-in possible
- No
- Rack-assembly possible
- Yes
- Suitable for safety functions
- No
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- Level c
- Appendant operation agent (Ex ia)
- No
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Country of origin
- France
Standards & Compliance
- HS Code
- 8517.62
Cross References
- EAN 3606481100436
- SAP 1200498375
- Code 82621811
Product Documentation
Document preview: Schneider Electric LV851100SP — OEM Product Page
More from Schneider Electric
Schneider Electric
Coil 48-130V Adv 3P G400-500
LX1G3SEHEA
Schneider Electric
PUSH-BUTTON.CAP Black MRK White 0
ZBA7232
Schneider Electric
Schneider Electric braking resistor - 60 ohms - 0.16 kW - IP20 VW3A7731
Schneider Electric
Coil D-contactor 42V 50/60Hz
LXD1D7
Schneider Electric

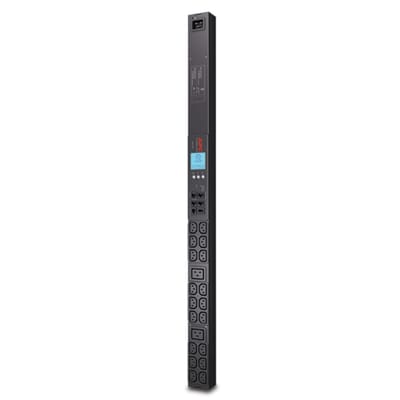

Schneider Electric APC NetShelter Metered Rack PDU, 0U, 1PH, 3.3kW 208V 16A or 3.7kW 230V 16A, 18 C13 and 2 C19 outlets, C20 inlet AP8858
Schneider Electric

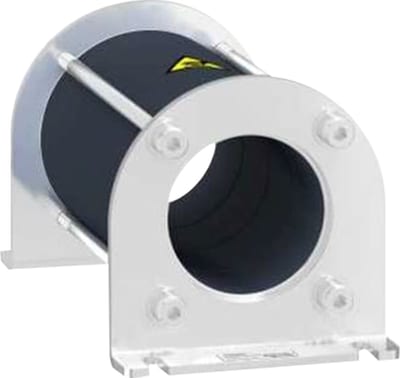

Commenmodefilter t/ 0,75-11kW (VW3A5502)
Schneider Electric
Schneider Electric Mechanical interlocking system, ComPacT NSX400/630, devices with direct rotary handles LV432621T
Schneider Electric

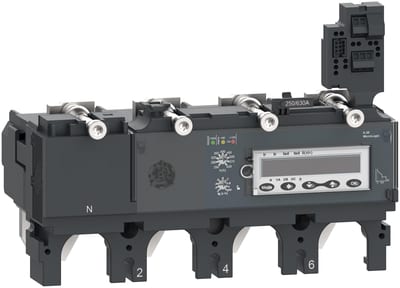

Schneider Electric Trip unit MicroLogic 6.3E, ComPacT NSX630, 4 poles, electronic basic and ground fault protections, energy meter, 630A C6346E630
