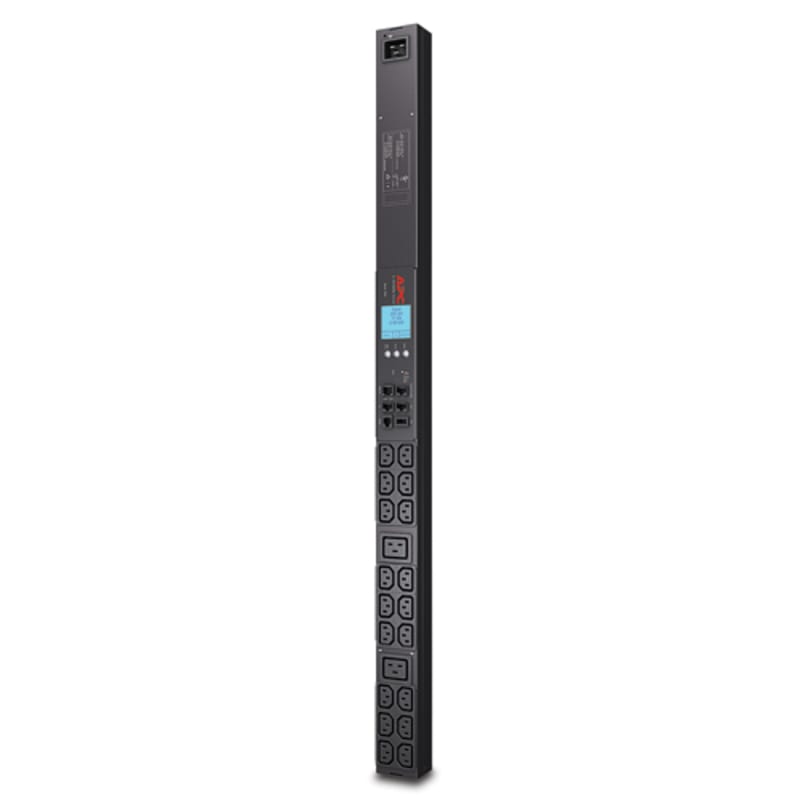

Schneider Electric APC NetShelter Metered Rack PDU, 0U, 1PH, 3.3kW 208V 16A or 3.7kW 230V 16A, 18 C13 and 2 C19 outlets, C20 inlet AP8858
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric AP8858 Rack PDU 2G, Metered, ZeroU,16A100-240.
Technical Specifications
- Manufacturer part number (MPN)
- AP8858
- EAN / GTIN
- 0731304277026
- Sales unit
- pcs
- Presentation
- APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
- Colour
- Black
- Product or component type
- PDU
- PDU type
- Metered
- Provided equipment
- Installation guide; Rack mounting brackets; Serial configuration cable; Safety guide
- Input Voltage
- 200 V; 208 V; 230 V
- Height
- 902 mm
- Width
- 56 mm
- Output Voltage
- 100 V; 200 V; 208 V; 230 V
- Depth
- 44 mm
- Product weight
- 2.93 kg
- Mounting location
- Side
- Mounting preference
- No preference
- Input Plug Type
- IEC 60320 C20
- mounting mode
- Rack-mounted
- Rack units
- 0U
- Mounting position
- Vertical
- [In] rated current
- 16 A
- permissible voltage
- 100…240 V
- Input current limits
- 20 A
- Load capacity
- 3300 VA
- Network frequency
- 50/60 Hz
- Outlet type and quantity
- 18 IEC 60320 C13 ; 2 IEC 60320 C19
- Product certifications
- METI Denan; VDE
- Standards
- CSA C22.2 No 60950; IEC 60950; UL 60950-1
- Ambient air temperature for operation
- -5…60 °C
- Relative humidity
- 5…95 %
- Operating altitude
- 0...10000 ft
- Ambient air temperature for storage
- -25…65 °C
- Storage Relative Humidity
- 5…95 %
- Storage altitude
- 0…15240 m
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 112.4 cm
- Package 1 Width
- 16.2 cm
- Package 1 Length
- 10.7 cm
- Package 1 Weight
- 4.191 kg
- Country of origin
- IN
- Warranty (in months)
- 24
- Nominal current
- 20 A
- Mounting direction
- Vertical
- Electrical connection
- Connection cable with plug
- Number of C13 socket outlets
- 18
- Number of C19 socket outlets
- 2
- Length
- 44 mm
- Supply voltage
- 230 V
- Overvoltage category
- 1
- Interface ethernet
- Yes
