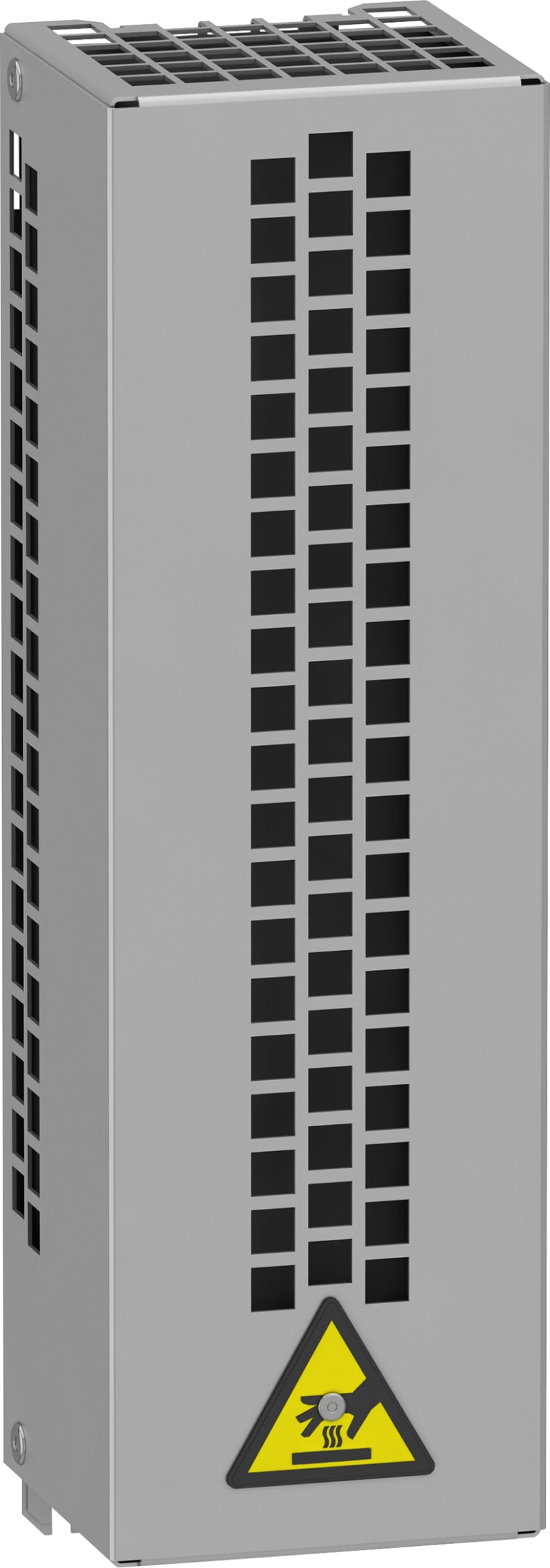

Schneider Electric braking resistor - 60 ohms - 0.16 kW - IP20 VW3A7731
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric VW3A7731 Braking resistor 60 ohms 0,16kW IP20.
Technical Specifications
- Manufacturer part number (MPN)
- VW3A7731
- EAN / GTIN
- 3606480802256
- Sales unit
- pcs
- Power
- 0.16 kW
- Resistance
- 60 Ω
- Range of product
- Altivar
- Range compatibility
- Altivar Machine ATV320; Altivar Machine ATV340; Easy Altivar 310; Altivar Process ATV900; Easy Altivar 310L
- Product or component type
- Braking resistor
- Ohmic value
- 60 Ohm
- Product compatibility
- Variable speed drive ATV930 wall mount 5.5 kW 380...480 V light cycle; Variable speed drive ATV930 wall mount 7.5 kW 380...480 V light cycle; Variable speed drive ATV930 wall mount 1.5 kW 200...240 V light cycle; Variable speed drive ATV930 wall mount 2.2 kW 200...240 V light cycle; Variable speed drive ATV950 wall mount 5.5 kW 380...480 V light cycle; Variable speed drive ATV950 wall mount 7.5 kW 380...480 V light cycle; Variable speed drive ATV930 wall mount 1.5 kW 200...240 V medium cycle; Variable speed drive ATV930 wall mount 2.2 kW 200...240 V medium cycle; Variable speed drive ATV340 4 kW 380...480 V light cycle; Variable speed drive ATV340 5.5 kW 380...480 V light cycle; Variable speed drive ATV320 0.55 kW 200...240 V; Variable speed drive ATV320 0.75 kW 200...240 V; Variable speed drive ATV320 1.1 kW 200...240 V; Variable speed drive ATV320 1.5 kW 200...240 V; Variable speed drive ATV320 4 kW 380...480 V; Variable speed drive ATV320 5.5 kW 380...480 V; Variable speed drive ATV310 5.5 kW; Variable speed drive ATV310 7.5 kW; Variable speed drive ATV930 7.5 kW 500...690 V light cycle; Variable speed drive ATV930 11 kW 500...690 V light cycle; Variable speed drive ATV930 10 hp 600 V light cycle; Variable speed drive ATV930 15 hp 600 V light cycle; Variable speed drive ATV320 5.5 kW 525...600 V; Variable speed drive ATV310L 0.75 kW; Variable speed drive ATV310L 1.5 kW; Variable speed drive ATV310L 2.2 kW; Variable speed drive ATV310L 3.0 kW; Variable speed drive ATV310L 4.0 kW; Variable speed drive ATV310L 5.5 kW
- Duty cycle
- Light cycle (heavy duty) <0.8 s braking with 150 % braking torque for a 40 s cycle ; Light cycle (normal duty) <0.8 s braking with 120 % braking torque for a 40 s cycle ; Medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle ; Medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle
- Average power available
- 0.16 kW at 50 °C
- Electrical connection
- terminal, connection capacity: <= 10 mm² / 8 AWG for drive
- Protection type
- Thermal protection via drive
- Width
- 105 mm
- Height
- 345 mm
- Depth
- 100 mm
- Product weight
- 1.8 kg
- IP degree of protection
- IP20
- Ambient air temperature for storage
- -25…70 °C
- Ambient air temperature for operation
- 0…50 °C
- Country of origin
- DE
- Warranty (in months)
- 18
- Type of accessory/spare part
- Breaking resistance
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8533.29
Cross References
- EAN 3606480802256
- SAP 1200020031
- Code 81392422
Product Documentation
More from Schneider Electric
Schneider Electric
Coil D-contactor 42V 50/60Hz
LXD1D7
Schneider Electric
Schneider Electric APC NetShelter Metered Rack PDU, 0U, 1PH, 3.3kW 208V 16A or 3.7kW 230V 16A, 18 C13 and 2 C19 outlets, C20 inlet AP8858
Schneider Electric
Commenmodefilter t/ 0,75-11kW (VW3A5502)
Schneider Electric
Schneider Electric Mechanical interlocking system, ComPacT NSX400/630, devices with direct rotary handles LV432621T
Schneider Electric
Schneider Electric Trip unit MicroLogic 6.3E, ComPacT NSX630, 4 poles, electronic basic and ground fault protections, energy meter, 630A C6346E630
Schneider Electric

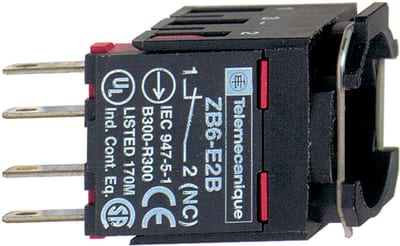

Body WITH 2NC Silver Faston
ZB6Z4B
Schneider Electric

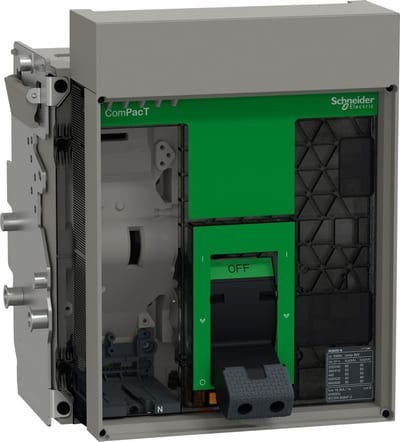

Schneider Electric Circuit breaker frame, ComPacT NS800N, 50KA at 415VAC, 800A, 3P, withdrawable, manually operated, without control unit C080N3WM
Schneider Electric

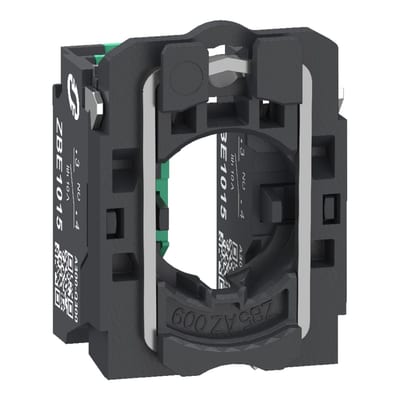

Schneider Electric Complete body contact assembly, Harmony XB5, single contact, with fixing collar, plastic, 2NO, compact push in terminals ZB5AZ1035
