Product Description

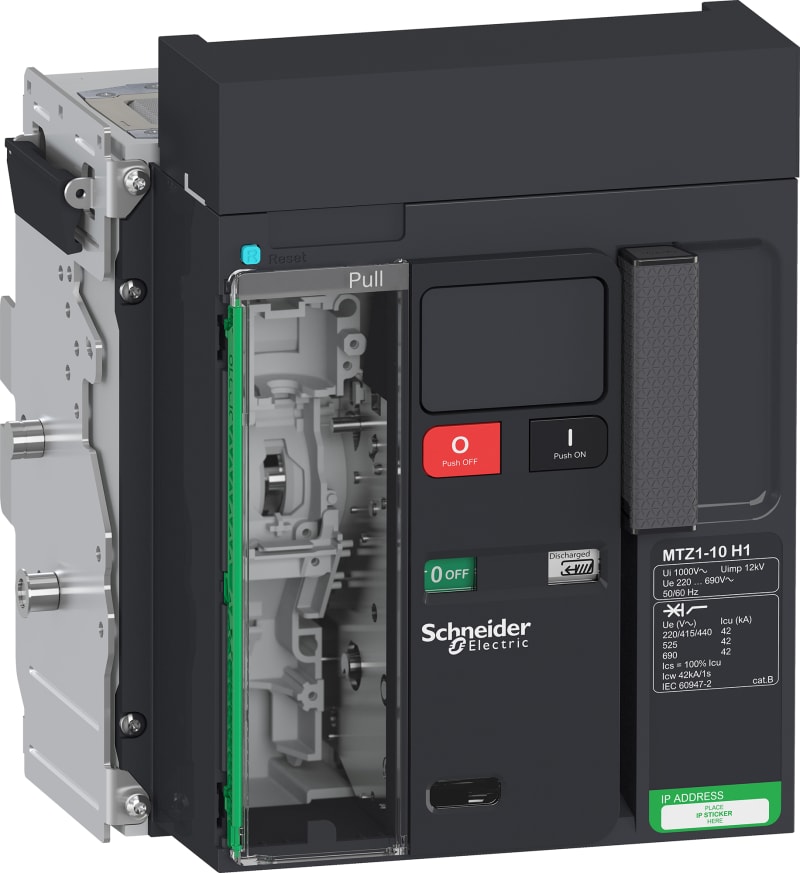

Schneider Electric LV847220 Circuit breaker Masterpact MTZ1 10H1 1000A 3p withdrawable without protection, pocket and connection
Technical Specifications
- Manufacturer part number (MPN)
- LV847220
- EAN / GTIN
- 3606480815270
- HS code
- 8536.90
- Sales unit
- pcs
- Number of poles
- 3P
- Range
- MasterPacT
- Product name
- MasterPact MTZ1
- Device short name
- MTZ1 10 H1
- Product or component type
- Circuit breaker
- Device application
- Power distribution protection
- Poles description
- 3P
- Control type
- Without control unit
- Product compatibility
- control unit MicroLogic 2.0 X; control unit MicroLogic 5.0 X; control unit MicroLogic 6.0 X; control unit MicroLogic 7.0 X; control unit MicroLogic 2.0 Xi; control unit MicroLogic 5.0 Xi; control unit MicroLogic 6.0 Xi; control unit MicroLogic 7.0 Xi
- [In] rated current
- 1000 A at 40 °C
- Breaking capacity code
- H1 42 kA 415 V AC
- [Ue] rated operational voltage
- 690 V AC 50/60 Hz
- Suitability for isolation
- Yes conforming to EN/IEC 60947-2
- Selectivity category
- Category B
- mounting mode
- Drawout
- Breaking capacity
- 42 kA at 220/415 V AC 50/60 Hz; 42 kA at 440 V AC 50/60 Hz; 42 kA at 500/525 V AC 50/60 Hz; 42 kA at 660/690 V AC 50/60 Hz
- [Ics] rated service breaking capacity
- 42 kA at 220/415 V AC 50/60 Hz; 42 kA at 440 V AC 50/60 Hz; 42 kA at 500/525 V AC 50/60 Hz; 42 kA at 660/690 V AC 50/60 Hz
- [Icw] rated short-time withstand current
- 42 kA 0.5 s; 42 kA 1 s; 24 kA 3 s
- [Icm] rated short-circuit making capacity
- 88 kA 220/415 V AC at 50/60 Hz; 88 kA 440 V AC at 50/60 Hz; 88 kA 500/525 V AC at 50/60 Hz; 88 kA 660/690 V AC at 50/60 Hz
- Sensor rating
- 400 A; 630 A; 800 A; 1000 A
- [Ui] rated insulation voltage
- 1000 V AC 50/60 Hz
- [Uimp] rated impulse withstand voltage
- 12 kV
- Power dissipation in W
- 150 W
- Maximum breaking time
- 25 ms
- Maximum closing response time
- 50 ms
- Mounting support
- Rails; Base plate
- Upside connection
- Front; Rear
- Downside connection
- Front; Rear
- Connection pitch
- 70 mm
- Mechanical durability
- 12500 cycles with periodic preventive maintenance
- Electrical durability
- 3000 cycles 690 V AC 50/60 Hz conforming to EN/IEC 60947-2; 6000 cycles 440 V AC 50/60 Hz conforming to EN/IEC 60947-2; AC-23A: 3000 cycles 690 V AC 50/60 Hz conforming to EN/IEC 60947-3; AC-23A: 6000 cycles 440 V AC 50/60 Hz conforming to EN/IEC 60947-3; AC-3: 6000 cycles 440 V AC 50/60 Hz conforming to EN/IEC 60947-3
- Height
- Drawout circuit breaker with chassis: 322 mm; Drawout circuit breaker without chassis: 259.5 mm
- Width
- Drawout circuit breaker with chassis: 288 mm; Drawout circuit breaker without chassis: 236.5 mm
- Depth
- Drawout circuit breaker with chassis: 291 mm; Drawout circuit breaker without chassis: 207.5 mm
- Product weight
- 30 kg
- Standards
- EN/IEC 60947-1; EN/IEC 60947-2; EN/IEC 60947-2 Annex H; IEC 61557-12
- Product certifications
- CE; IECEE CB Scheme
- IP degree of protection
- IP30 conforming to EN 60529
- Pollution degree
- 3 conforming to IEC 60947-1
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -40…85 °C
- Operating altitude
- 0...2000 m without derating; 2000...5000 m with derating
- Number of Units in Package 1
- 1
- Country of origin
- FR
- Warranty (in months)
- 18
