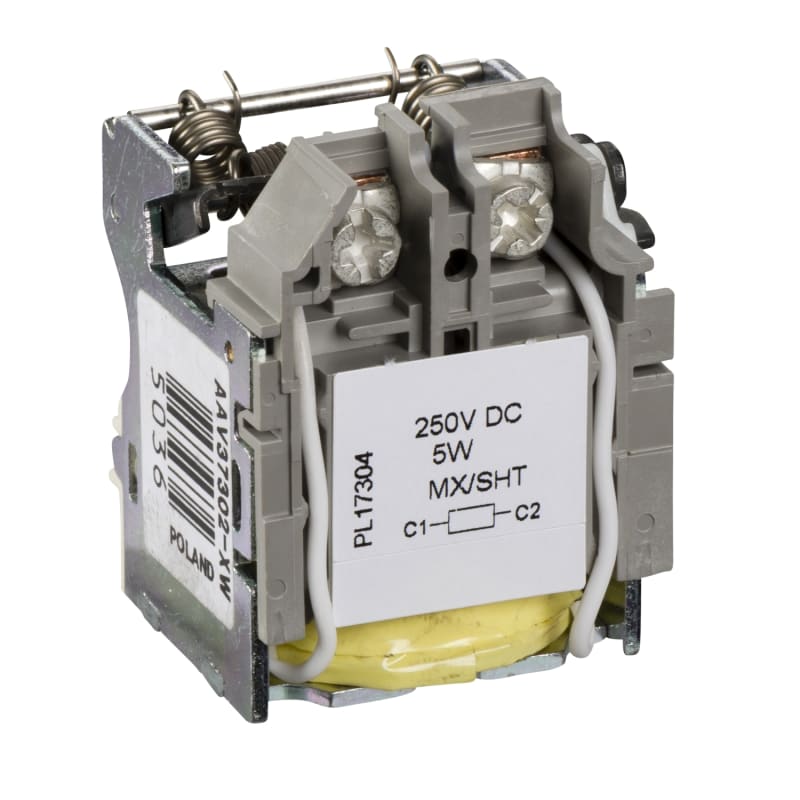

Schneider Electric MX shunt release, ComPacT NSX, rated voltage 250 VDC, screwless spring terminal connections LV429394
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LV429394 MX 250VDC shuntsp. NSX100-630.
Technical Specifications
- Manufacturer part number (MPN)
- LV429394
- EAN / GTIN
- 3606480019166
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Voltage
- 250 V DC
- Range
- ComPacT
- Range of product
- ComPact NSX100...250; ComPacT NSX100...250; ComPact NSX400...630; ComPacT NSX400...630; ComPact NSX100...250 DC; ComPacT NSX100...250 DC; ComPact NSX100...250 DC PV; ComPacT NSX100...250 DC PV; ComPact NSX400...630 DC; ComPacT NSX400...630 DC; ComPact NSX400...630 DC PV; ComPacT NSX400...630 DC PV
- Device short name
- MX
- Product or component type
- Voltage release
- Device application
- Control
- Voltage release type
- Opening coil; Shunt trip release
- [Uc] control circuit voltage
- 250 V DC
- Range compatibility
- ComPacT ComPacT NSX; ComPacT ComPacT NSX DC; ComPact ComPact NSX; ComPact ComPact NSX DC; EasyPact EasyPact CVS; PowerPact PowerPact Multistandard
- Operating threshold
- 0.7...1.1 x Un opening
- Response time
- 50 ms
- Control signal type
- Maintained; Impulse
- Impulse duration
- >= 20 ms
- Supply inrush power
- 10 W
- Auxiliary connection terminal
- Spring 0.5…1.5 mm² (20 AWG...16 AWG)
- Wire stripping length
- 7 mm
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Number of Units in Package 3
- 60
- Country of origin
- PL
- Warranty (in months)
- 18
- Power consumption
- 5 W
- Suitable for off-load switch
- Yes
- Suitable for overload relay
- No
- Type of electric connection
- Spring clamp connection
- Rated control supply voltage DC
- 250 V
- Suitable for motor safety switch
- No
- Suitable for power circuit breaker
- Yes
- Voltage type for actuating
- DC
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 3606480019166
- SAP 1000092300
- Code 8859698
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Transmitter, Harmony pocket remote, 10 single-step push buttons ZART10
Schneider Electric
Schneider Electric current transformer tropicalised DIN mount 500 5 cables d. 40 - bars 12X50 20X40 METSECT5MD050
Schneider Electric
Sign flush in grey plastic (ZBYFP2186C0)
Schneider Electric

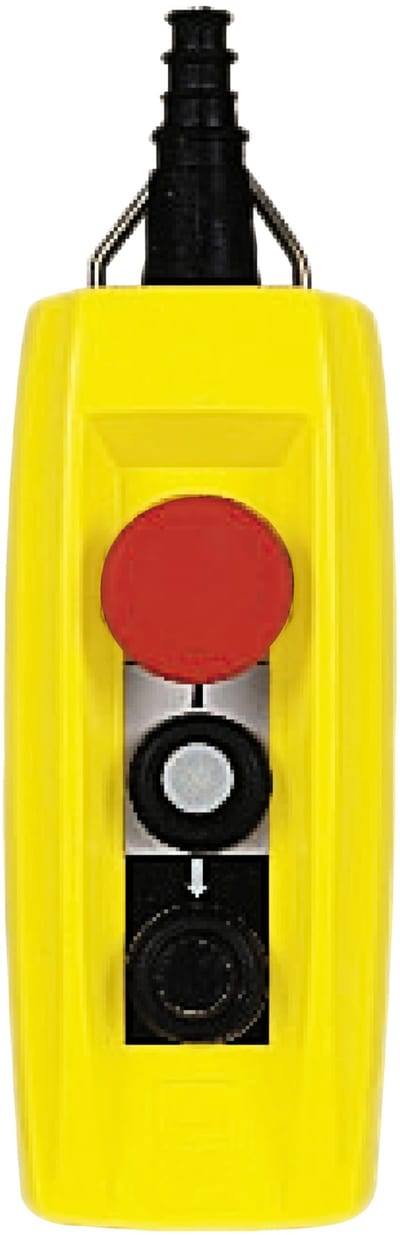

Schneider Electric XACB3191 Harmony XAC Pendant Control Station 2 Buttons + E-Stop
Schneider Electric
Schneider Electric variable speed drive, Altivar Process ATV900, ATV930, 2.2kW, 400 to 480V, with braking unit, IP21 ATV930U22N4
Schneider Electric

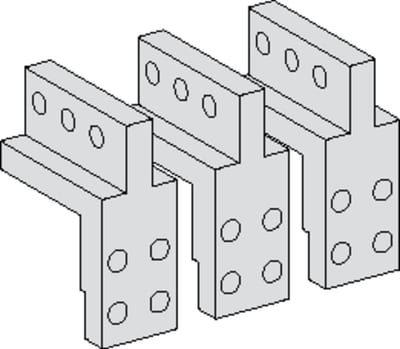

Vertical connection INS630B-1600 3P
31301
Schneider Electric

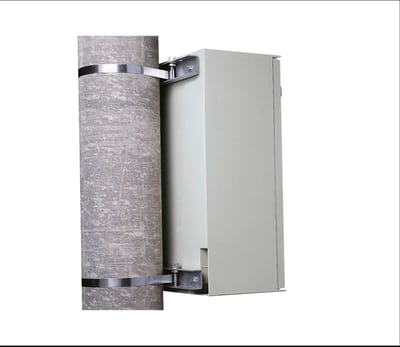

SWM Pole Mount W500 (NSYSFPSC50)
Schneider Electric

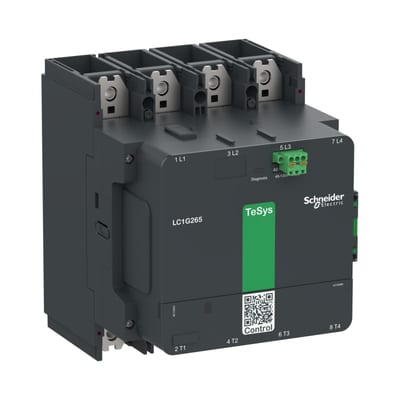

Schneider Electric High power contactor, TeSys Giga, 4 pole (4NO), AC-1 <=440V 385A, standard version, 100…250V wide band AC/DC coil LC1G2654KUEN
