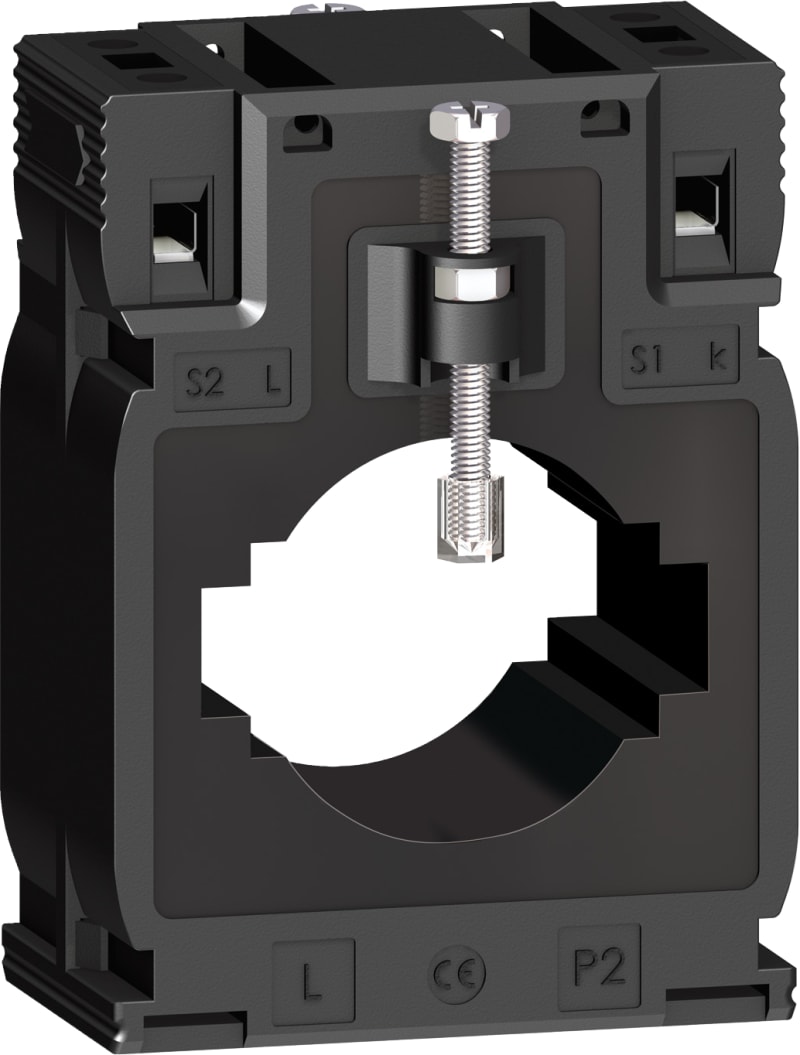

Schneider Electric current transformer tropicalised DIN mount 500 5 cables d. 40 - bars 12X50 20X40 METSECT5MD050

Schneider Electric METSECT5MD050 CT Current transformers with 5 A secondary current used together with an ammeter.

Manufacturer part number (MPN)

METSECT5MD050

EAN / GTIN

3606480618857

Sales unit

pcs

Diameter

40 mm

Range

PowerLogic

Product or component type

Current transformer

Product name

CT

Secondary current

5 A

Accuracy class

Class 0.5 at 4 VA; Class 1 at 6 VA

[In] rated current

500 A

Current transformer type

Tropicalised for busbar and cable; Solid core

Current transformer ratio

500/5

[Ith] conventional free air thermal current

30 kA

Dynamic withstand current

2.5 Ith

Maximum safety factor

5

[Ue] rated operational voltage

< 720 V AC 50/60 Hz

mounting mode

Insulated locking screw; Clip-on; By screws

Mounting support

DIN rail; Busbar; Mounting plate

Width

Outside: 70 mm

Height

Outside: 95 mm

Depth

Frame : 45 mm; Total : 65 mm

Product weight

0.329 kg

[Uimp] rated impulse withstand voltage

3 kV

Electrical insulation class

Class B

Cable outer diameter

40 mm

Opening of bars

50.5 x 12.5; 40.5 x 20.5

Sealing

Without

Standards

VDE 0414; IEC 61869-2

Product certifications

CE

IP degree of protection

IP20

Relative humidity

0…95 %

Ambient air temperature for operation

-25…60 °C

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

7.0 cm

Package 1 Width

9.0 cm

Package 1 Length

11.5 cm

Package 1 Weight

339.0 g

Unit Type of Package 2

S03

Number of Units in Package 2

33

Package 2 Height

30.0 cm

Package 2 Width

30.0 cm

Package 2 Length

40.0 cm

Package 2 Weight

11.674 kg

Country of origin

TN

Warranty (in months)

18

Model

Through-feed current converter

Rated primary current

500 A

Rated secondary current

5 A

Rated secondary apparent power

6 VA

Overcurrent limiting factor

FS 5

Calibrated

No

With contact protection

No

Height opening

20 mm

Width opening

40 mm

Opening diameter

40 mm

Snap mounting

No

With copper rail

No

Number of primary inputs

1

Secondary connection

Screw connection

HS Code

8504.31
