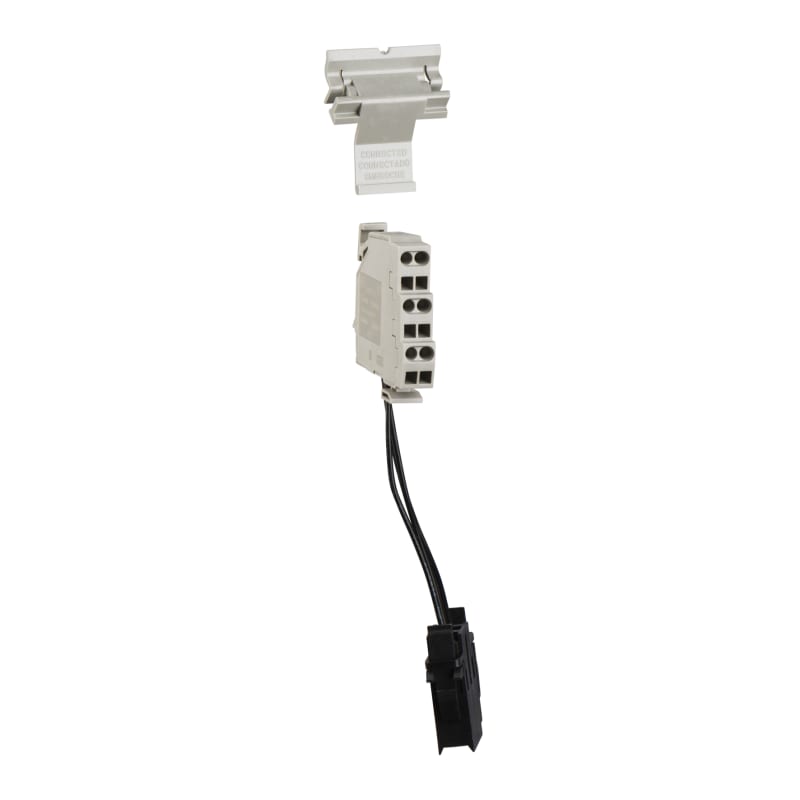

Schneider Electric LV848478SP MasterPact MTZ2/MTZ3 Connected-Position Low-Level Auxiliary Contact Spare

The Schneider Electric LV848478SP is a low-level auxiliary contact (1 NO/NC) that signals the connected position of drawout MasterPact MTZ2 and MTZ3 air circuit breakers. It is rated for AC-12 up to 5 A at 240/380 V and DC-12 up to 2.5 A at 24/48 V DC, with a minimum switching load of 2 mA at 15 V. Supplied as a spare part with an instruction sheet, it is used for control-panel monitoring and interlocking of the breaker rack position.

Manufacturer part number (MPN)

LV848478SP EAN / GTIN: 3606481187628 Sales unit: pcs Package quantity: 100 pcs Range: MasterPact Device short name: EF Product or component type: Auxiliary contact Device application: Control Range compatibility: Masterpact MasterPact MTZ2 circuit breaker; Masterpact MasterPact MTZ3 circuit breaker Signal contacts composition: 1 NO/NC mounting mode: Drawout Auxiliary contacts type: Low level Auxiliary contacts operation: Connected position [Ie] rated operational current: DC-12: 0.3 A at 250 V DC; DC-12: 0.8 A at 125 V DC; DC-12: 2.5 A at 24/48 V DC; AC-12: 5 A at 240 V AC 50/60 Hz; AC-12: 5 A at 380 V AC 50/60 Hz; AC-12: 5 A at 240/380 V AC 50/60 Hz minimum load: 2 mA at 15 V Provided equipment: 1 instruction sheet Offer type: Spare part Number of Units in Package 1: 1 Number of Units in Package 2: 100 Country of origin: FR Warranty (in months): 18

HS Code

8538.90

• EAN 3606481187628
• SAP 1200287091
• Code 82255104
