Door with Cut-Out IP30-PRISMASET P B300
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS08593 Door with Cut-Out for instrumenter-IP30-PrismaSeT P-width 300mm.
Technical Specifications
- Manufacturer part number (MPN)
- LVS08593
- EAN / GTIN
- 3606481884305
- Sales unit
- pcs
- IP rating
- IP30
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Door
- Range compatibility
- PrismaSeT PrismaSeT P duct
- Provided equipment
- door; other keylock and insert to be ordered separately; 2 hinge; black handle with lock for 405 key
- Enclosure mounting
- Floor-standing
- type of door
- HSI cut-out
- IP degree of protection
- IP30
- installation description
- Duct - width 300 mm
- Door opening side
- Reversible
- Number of locks
- 2
- door opening angle
- 120 °
- Number of vertical modules [50 mm]
- 36
- Additional information
- Can be equipped with front plates for 72 x 72 mm or 96 x 96 mm instruments
- Quantity per set
- Set of 1
- Height
- 1925 mm
- Width
- 300 mm
- Product weight
- 8.94 kg
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- IK degree of protection
- IK08 conforming to EN/IEC 62262
- Standards
- IEC 61439-2; IEC 61439-1
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 30
- Warranty (in months)
- 18
- Model
- Compartment door
- Depth
- 36 mm
- EMC-version
- No
- Material
- Steel
- Degree of protection (IP)
- IP30
- Surface finishing
- Powder coating
- Version as glazed door
- No
- Version as door for disconnecting switch interlocking
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481884305
- SAP 1200547303
- Code 82880096
Product Documentation
More from Schneider Electric
Schneider Electric
Esmi Impresia cover EI-9300 for summer
FFS06741023
Schneider Electric
Schneider Electric TeSys D control relay - 3 NO + 2 NC - <= 690 V - 48 V DC standard coil CAD32ED
Schneider Electric
Schneider Electric PanelSeT SF-E fixing of cable ducts on 19" racks - steel - zinc coated - 150mm NSYRCDFIX
Schneider Electric

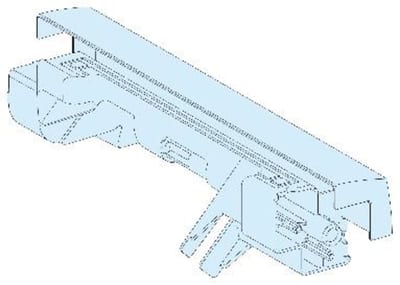

Pole PrismaSeT G IP55, 2 pcs
LVS01025
Schneider Electric

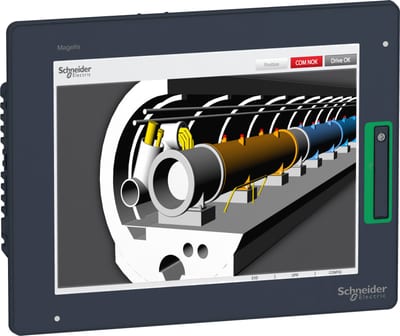

Schneider Electric 10.4 Touch Smart Display SVGA HMIDT542
Schneider Electric

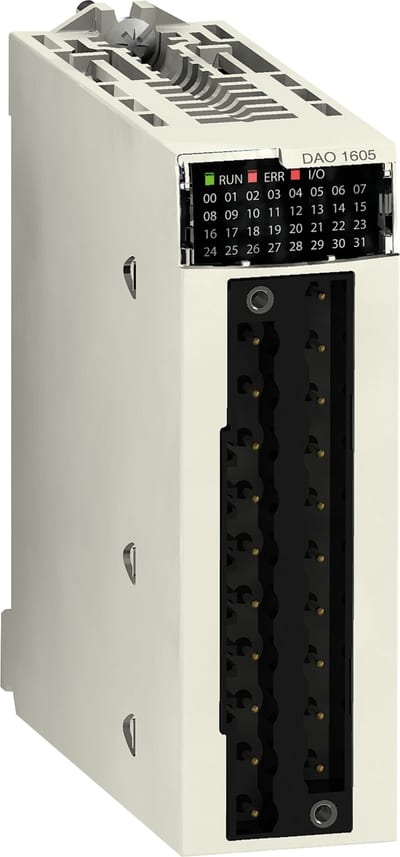

Schneider Electric discrete output module X80 - 16 outputs - triac - 100..240 V AC BMXDAO1605
Schneider Electric
Schneider Electric TeSys GV4 - thermal magnetic circuit breaker - 2A 3P - with Everlink GV4PE02N
Schneider Electric

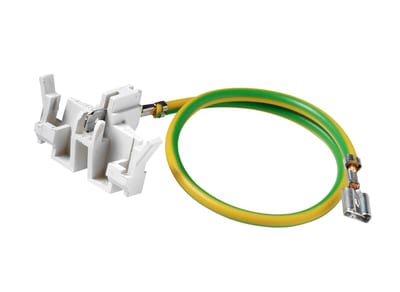

CYB-ET Earthing braid
