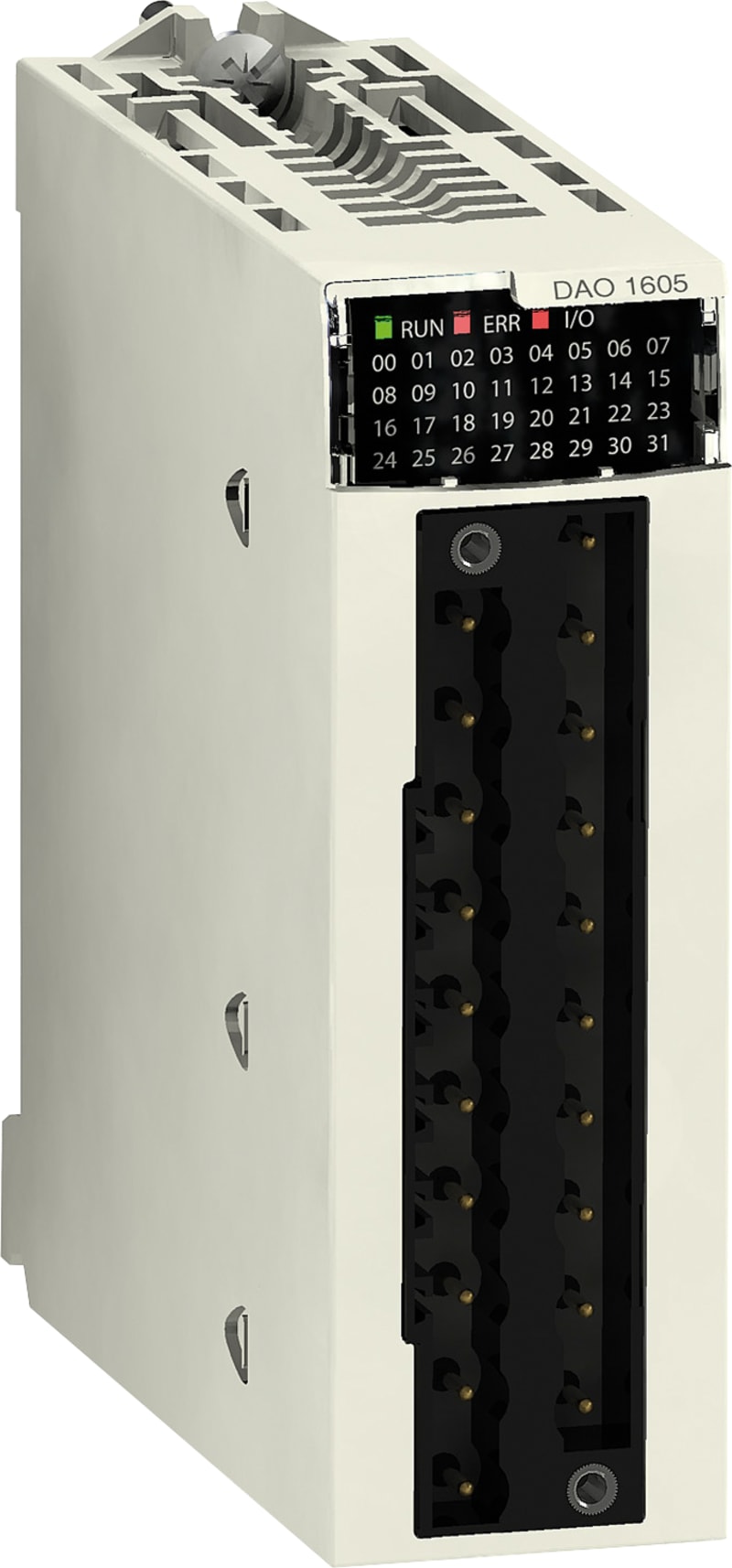

Schneider Electric discrete output module X80 - 16 outputs - triac - 100..240 V AC BMXDAO1605

Schneider Electric BMXDAO1605 M340 16 out triac, 24-240VAC,1A.

Manufacturer part number (MPN)

BMXDAO1605

EAN / GTIN

3595863966954

Sales unit

pcs

Voltage

24-240 V AC

Range of product

Modicon X80

Product or component type

Discrete output module

Response time on output

<= 1.011 ms resistive activation; <= 1.011 ms resistive deactivation

Maximum voltage drop

<1.5 V at state 1

Insulation resistance

> 10 MOhm 500 V DC

Inrush current

20 A

Output current limits

0.025…4.8 A

MTBF reliability

1800000 H

Protection type

1 external fuse fast blow

IP degree of protection

IP20

Protective treatment

Standard version

Directives

2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility

Dielectric strength

2830 V AC at 50/60 Hz 1 min

Relative humidity

5…95 % at 55 °C without condensation

Number of Units in Package 1

1

Number of Units in Package 2

15

Country of origin

FR

Warranty (in months)

18

Power consumption

1.45 W

Supply voltage DC

3.3 V

Voltage type (supply voltage)

AC

Number of digital outputs

16

Digital inputs configurable

No

Digital outputs configurable

Yes

Input current at signal 1

0.6 mA

Type of voltage (input voltage)

AC

Type of digital output

Triac

Output current

2.4 A

Type of output voltage

AC

Short-circuit protection, outputs available

No

Redundancy

No

Type of electric connection

Plug-in connection

Suitable for safety functions

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

None

Explosion safety category for dust

None

Width

33 mm

Height

100 mm

Depth

150 mm

HS Code

8538.90

• EAN 3595863966954
• SAP 1000073146
• Code 8770772
