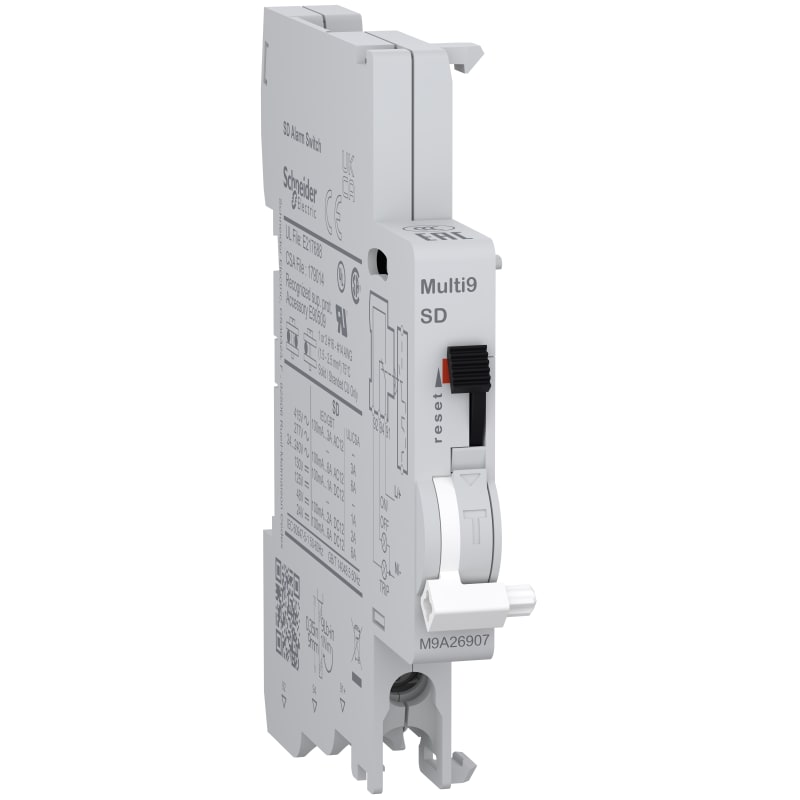

Schneider Electric Auxiliary contact, MULTI9 M9A, SD, 1 C/O, 100MA to 6A, 24VAC to 415VAC, 24VDC to 130VDC, bottom connection M9A26907

Schneider Electric M9A26907 Multi9 fault signal contact - 1 changeover contact - standard.

Manufacturer part number (MPN)

M9A26907

EAN / GTIN

3606486351819

Sales unit

pcs

Package quantity

12 pcs

range of product

Multi9

Product or component type

Fault contact

Device short name

SD

Signal contacts composition

1 C/O

[In] rated current

0.1…6 A at 24...240 V, AC 50/60 Hz; 0.1…6 A at 24...250 V, AC 50/60 Hz; 0.1…6 A at 24 V, DC; 0.1…2 A at 48 V, DC; 0.1…1.5 A at 60 V, DC; 0.1…1 A at 110 V, DC; 0.1…1 A at 130 V, DC; 0.1…3 A at 277 V, AC 50/60 Hz; 0.1…3 A at 415 V, AC 50/60 Hz

9 mm pitches

1

Standards

EN/IEC 60947-5-1; GB/T 14048.5; EN 62019-2; UL 1077; UL 489; C22.2 No. 5; C22.2 No. 235

Product certifications

CE; UKCA; UL

Quality labels

EAC; CCC

Range compatibility

Multi9 C60BP; Multi9 C60SP; Multi9 C60; Multi9 N40

[Ui] rated insulation voltage

500 V

[Uimp] rated impulse withstand voltage

4 kV

Local signalling

Mechanical indicator

mounting mode

Clip-on

Mounting location

Left side of circuit-breaker

Mounting support

DIN rail

Comb busbar and distribution block compatibility

Top: YES

Height

85 mm

Width

9 mm

Depth

68 mm

Product weight

30 g

Colour

Grey

Connections - terminals

Screw clamp terminal (bottom): 1 cable(s) 2.5 mm² - rigid; Screw clamp terminal (bottom): 2 cable(s) 1.5 mm² - rigid

Wire stripping length

9 mm

Tightening torque

1 N.m bottom

IP degree of protection

IP20

Pollution degree

3

Tropicalisation

2

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…85 °C

Number of Units in Package 1

1

Number of Units in Package 2

12

Number of Units in Package 3

108

Country of origin

BE

Warranty (in months)

18

Function

Auxiliary switch/fault-signal switch

Voltage type

AC/DC

Rated voltage

415 V

Installed at the factory

No

Width in number of modular spacings

0.5

Rated switch current

0.1 A

Number of fault-signal switches

1

Device fitting

Earth leakage circuit breaker and miniature circuit breaker (MCB)

Additional equipment

Auxiliary switch/fault-signal switch

Voltage type for actuating

AC/DC

Number of contacts as change-over contact

1

With auto test for earth leakage function

No

Suitable for max. number of poles main contact unit (total)

4

Suitable for max. current main contact unit

63 A

HS Code

8505.90
