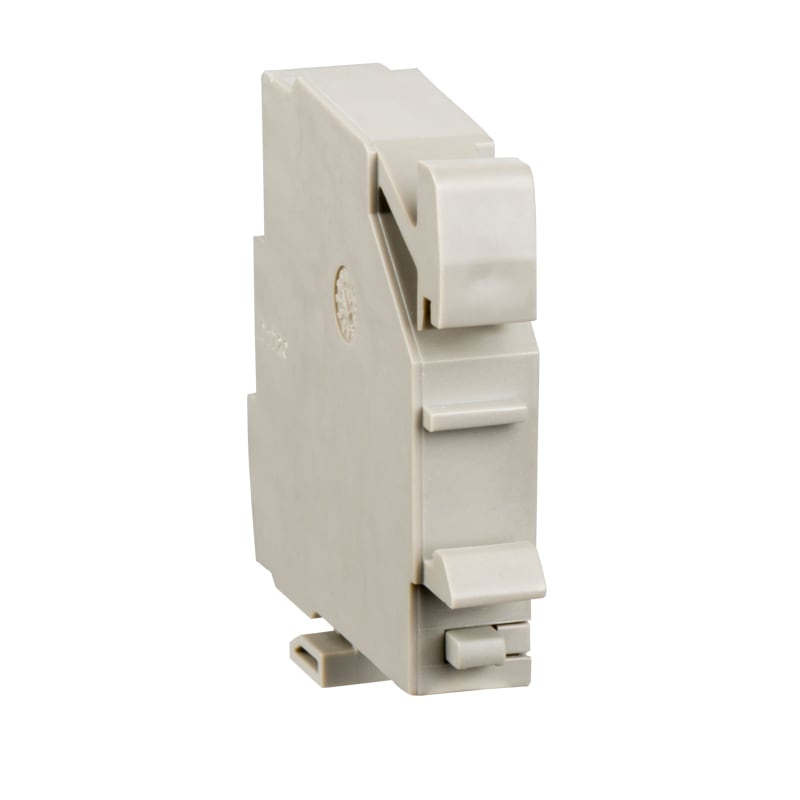

CE/CD/CT connector MTZ withdrawable res.

Schneider Electric LV833170SP — CE/CD/CT position contact - 8 A/240 VAC - for MTZ/NT/NW drawout - spare part.

Manufacturer part number (MPN)

LV833170SP EAN / GTIN: 3606481186256 Sales unit: pcs Package quantity: 80 pcs Range: MasterPact Device short name: CE/CD/CT Product or component type: Auxiliary contact Device application: Control Range compatibility: Masterpact MasterPact MTZ1 circuit breaker; Masterpact MasterPact MTZ2 circuit breaker; Masterpact MasterPact MTZ3 circuit breaker Signal contacts composition: 1 NO/NC mounting mode: Drawout Auxiliary contacts type: Standard Auxiliary contacts operation: Test position; Disconnected position; Connected position [Ie] rated operational current: AC-12: 6 A at 690 V AC 50/60 Hz; AC-12: 8 A at 240 V AC 50/60 Hz; AC-12: 8 A at 380 V AC 50/60 Hz; AC-12: 8 A at 480 V AC 50/60 Hz; DC-12: 0.3 A at 250 V DC; DC-12: 0.8 A at 125 V DC; DC-12: 2.5 A at 24/48 V DC minimum load: 100 mA at 24 V Provided equipment: 1 instruction sheet Offer type: Spare part Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 3.500 cm Package 1 Width: 4.200 cm Package 1 Length: 4.200 cm Package 1 Weight: 34.000 g Unit Type of Package 2: S04 Number of Units in Package 2: 80 Package 2 Height: 30.000 cm Package 2 Width: 40.000 cm Package 2 Length: 60.000 cm Package 2 Weight: 3.420 kg Country of origin: FR Warranty (in months): 18

HS Code

8538.90

• EAN 3606481186256
• SAP 1200287070
• Code 82255091
