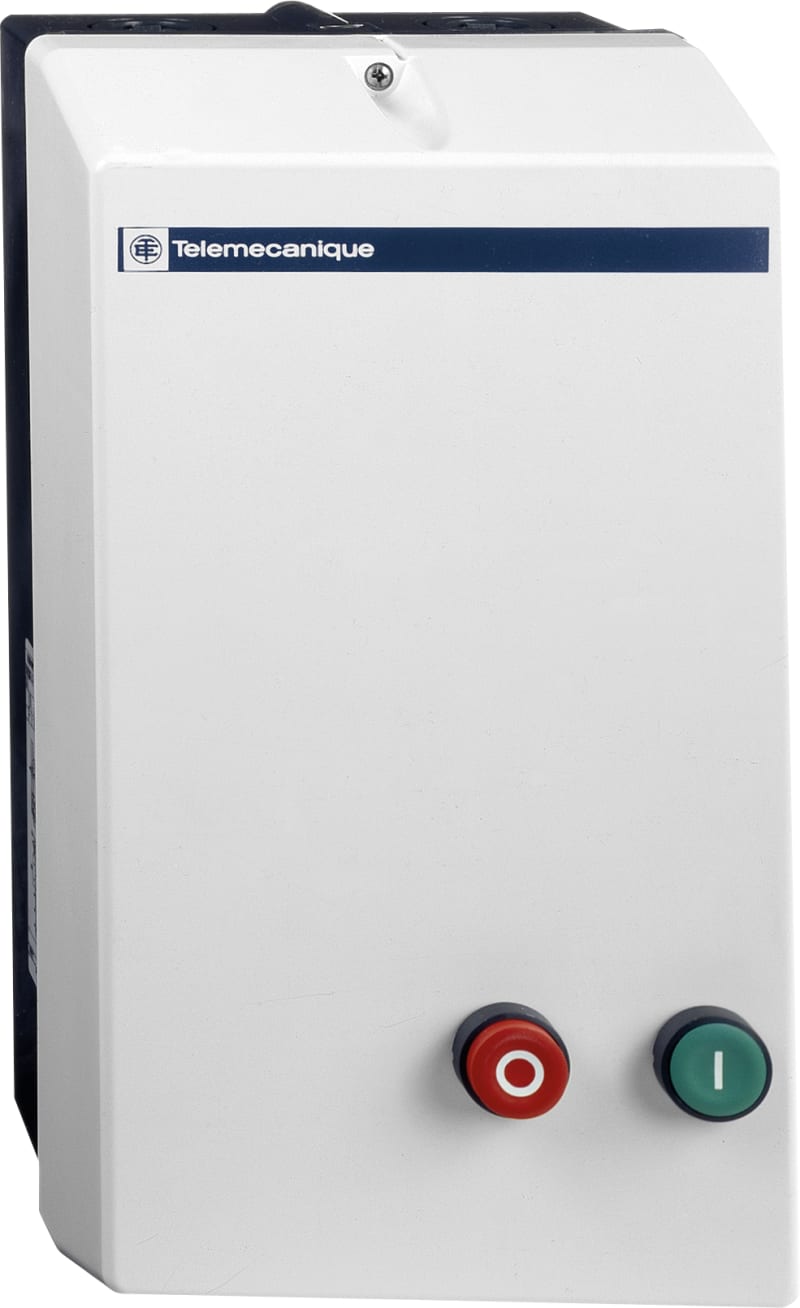

Schneider Electric TeSys LE - enclosed star-delta starter - 18 A - 230 V AC coil LE3D18P7
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LE3D18P7 Y/D-starter Enclosed 18,5kW 230AC.
Technical Specifications
- Manufacturer part number (MPN)
- LE3D18P7
- EAN / GTIN
- 3389110541380
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Voltage
- 230 V AC
- Power
- 18.5 kW
- Range
- TeSys
- Product name
- TeSys LE
- Device short name
- LE3D
- Product or component type
- Enclosed star-delta starter
- Device application
- Standard
- Material
- Polycarbonate
- Utilisation category
- AC-3
- Device composition
- Thermal overload relay ordered separately; Star-delta contactors; Mechanical interlock
- [Ie] rated operational current
- 18 A AC-3
- Motor power kW
- 11 kW at 220 V AC 50/60 Hz; 22 kW at 415 V AC 50/60 Hz; 22 kW at 440 V AC 50/60 Hz; 18.5 kW at 380/400 V AC 50/60 Hz
- [Uc] control circuit voltage
- 230 V AC 50/60 Hz
- Control type
- Push-button start green I; Push-button stop/reset red O
- Connections - terminals
- Power circuit: screw clamp terminals; Control circuit: screw clamp terminals
- Cable entry number
- 2 ISO20 top; 2 ISO25 top; 2 ISO32 top; 2 ISO40 top; 2 ISO20 bottom; 2 ISO25 bottom; 2 ISO32 bottom; 2 ISO40 bottom
- Width
- 186 mm
- Height
- 348 mm
- Depth
- 175.5 mm
- Product weight
- 3.75 kg
- IP degree of protection
- IP65 conforming to IEC 60529
- IK degree of protection
- IK07 conforming to IEC 60529
- Standards
- IEC 60947-4-1
- Ambient air temperature for operation
- -5…40 °C
- Environmental characteristic
- Standard environment
- Product certifications
- UKCA
- Country of origin
- FR
- Warranty (in months)
- 18
- Function
- Star-delta contactor
- Rated operation power at AC-3, 400 V
- 18.5 kW
- Number of normally open contacts as main contact
- 3
- Number of auxiliary contacts as normally open contact
- 1
- Number of auxiliary contacts as normally closed contact
- 1
- Rated operation current Ie at AC-3, 400 V
- 18 A
- Suitable for rail mounting
- No
- Rated control supply voltage AC 50 Hz
- 230 V
- Rated control supply voltage AC 60 Hz
- 230 V
- Voltage type (operating voltage)
- AC
- Degree of protection (IP)
- IP65
- Type of electrical connection of main circuit
- Screw connection
- Operating voltage AC 50 Hz
- 220–440 V
- Operating voltage AC 60 Hz
- 220–440 V
- Voltage type for actuating
- AC
Standards & Compliance
- HS Code
- 8537.10
Cross References
- EAN 3389110541380
- SAP 1000076142
- Code 8793654
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric ABL8BPK24A07 battery - 24 V DC - 40 A - 7 AH - for battery control module
Schneider Electric
Selector switch with LIGHT 3ST.RET.FR.H/V WHITE (ZB4BK1513)
Schneider Electric
Schneider Electric Motor circuit breaker, TeSys GV2, 3P, 2.5-4 A, thermal magnetic, screw clamp terminals GV2RT08
Schneider Electric
Mounting plate NSX630 Vertical-Prisma P
LVS03461
Schneider Electric
Exiway Smartbeam pictogram plate 20M
OVA53180
Schneider Electric
Strain relief FOR Cable 9-12
IMT36021
Schneider Electric
Schneider Electric Advanced control unit, TeSys U, 0.35-1.4A, 3P motors, protection & diagnostic, class 10, coil 24V DC LUCB1XBL
Schneider Electric
SOPP Push-Button Head Black Ø60mm (ZB5AR2)
Technical guides
- Motor Starter Finder — Direct-On-Line, Reversing, Star-Delta and Hybrid Starters (Siemens SIRIUS 3RA2 / 3RM1, Schneider TeSys LE1D / TeSys U, Eaton EMS2, Phoenix Contact ELR) by Current Setting
- Schneider Electric Acti9 iC60 RCBO Selection Guide (IEC 61009)
- Motor Switching with TeSys — Pairing LC1D Contactors with LRD Overload Relays
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy LE3D18P7?
- LE3D18P7 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is LE3D18P7.
- What is the HS code for LE3D18P7?
- The customs tariff (HS) code for LE3D18P7 is 8537.10.
- Who manufactures LE3D18P7?
- LE3D18P7 is a Schneider Electric product in the Electrical Components range.
- Is a datasheet available for LE3D18P7?
- Yes — the LE3D18P7 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for LE3D18P7?
- The minimum order quantity is 1.
- Is LE3D18P7 available?
- Yes — LE3D18P7 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
