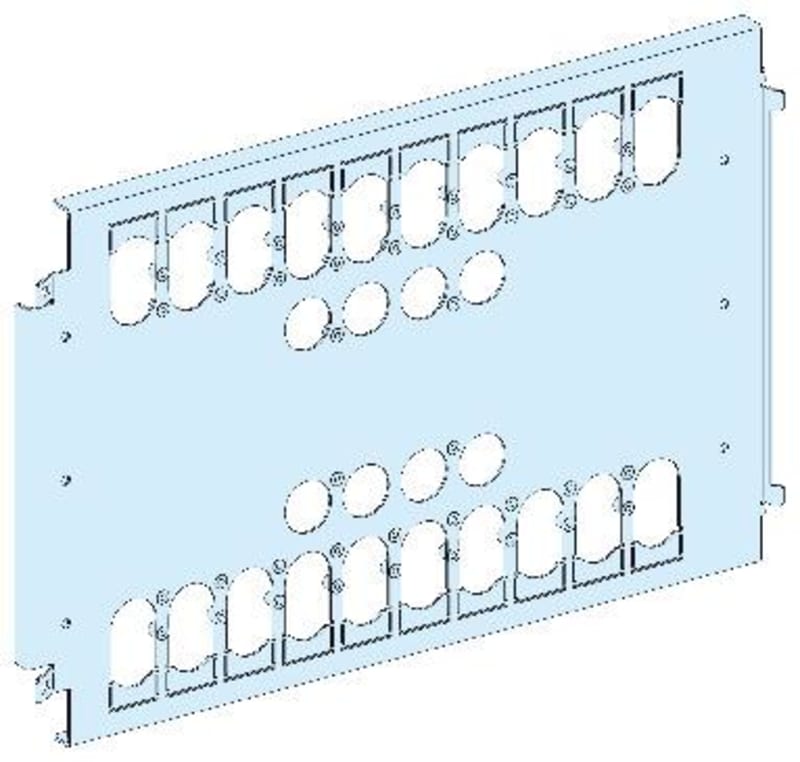

Mounting plate NSX630 Vertical-Prisma P

Schneider Electric LVS03461 — MOUNT.PLATE 2 NSX/CVS/INS FIXED/PLUGIN TOGGLE/ROT/MOT -3P/4P 630A VERTICAL W650.

Manufacturer part number (MPN)

LVS03461

EAN / GTIN

3606481874429

Sales unit

pcs

Package quantity

3 pcs

Range

PrismaSeT

Range of product

PrismaSeT P

Product or component type

Mounting plate

Accessory / separate part category

Installation accessory

Range compatibility

PrismaSeT PrismaSeT P cubicle

installation description

Cubicle - width 650 mm depth 400 mm

Installed device

EasyPact: fixed CVS400 without earth leakage protection - control: toggle - vertical installation; EasyPact: fixed CVS630 without earth leakage protection - control: toggle - vertical installation; EasyPact: fixed EZC400 - control: toggle - vertical installation; EasyPact: fixed EZC630 - control: toggle - vertical installation; ComPact: fixed INS320...400 - control: direct front rotary handle - vertical installation; ComPact: fixed INS500...630 - control: direct front rotary handle - vertical installation; ComPact: fixed INV320...400 - control: direct front rotary handle - vertical installation; ComPact: fixed INV500...630 - control: direct front rotary handle - vertical installation; ComPact: fixed NSX400 without earth leakage protection - control: toggle - vertical installation; ComPact: fixed NSX630 without earth leakage protection - control: toggle - vertical installation; EasyPact: fixed CVS400 with earth leakage protection - control: toggle - vertical installation; EasyPact: fixed CVS630 with earth leakage protection - control: toggle - vertical installation; ComPact: fixed NSX400 with earth leakage protection - control: toggle - vertical installation; ComPact: fixed NSX630 with earth leakage protection - control: toggle - vertical installation; EasyPact: fixed CVS400 without earth leakage protection - control: direct front rotary handle - vertical installation; EasyPact: fixed CVS630 without earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: fixed NSX400 without earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: fixed NSX630 without earth leakage protection - control: direct front rotary handle - vertical installation; EasyPact: fixed CVS400 with earth leakage protection - control: direct front rotary handle - vertical installation; EasyPact: fixed CVS630 with earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: fixed NSX400 with earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: fixed NSX630 with earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: plug-in NSX400 without earth leakage protection - control: toggle - vertical installation; ComPact: fixed NSX400 without earth leakage protection - control: motor mechanism - vertical installation; ComPact: plug-in NSX400 without earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: plug-in NSX400 without earth leakage protection - control: motor mechanism - vertical installation; ComPact: drawout NSX400 without earth leakage protection - control: toggle - vertical installation; ComPact: drawout NSX400 without earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: drawout NSX400 without earth leakage protection - control: motor mechanism - vertical installation; ComPact: plug-in NSX630 without earth leakage protection - control: toggle - vertical installation; ComPact: fixed NSX630 without earth leakage protection - control: motor mechanism - vertical installation; ComPact: plug-in NSX630 without earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: plug-in NSX630 without earth leakage protection - control: motor mechanism - vertical installation; ComPact: drawout NSX630 without earth leakage protection - control: toggle - vertical installation; ComPact: drawout NSX630 without earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: drawout NSX630 without earth leakage protection - control: motor mechanism - vertical installation; ComPact: plug-in NSX400 with earth leakage protection - control: toggle - vertical installation; ComPact: plug-in NSX400 with earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: drawout NSX400 with earth leakage protection - control: toggle - vertical installation; ComPact: drawout NSX400 with earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: drawout NSX400 with earth leakage protection - control: motor mechanism - vertical installation; ComPact: plug-in NSX630 with earth leakage protection - control: toggle - vertical installation; ComPact: plug-in NSX630 with earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: drawout NSX630 with earth leakage protection - control: toggle - vertical installation; ComPact: drawout NSX630 with earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: drawout NSX630 with earth leakage protection - control: motor mechanism - vertical installation

Poles description

1 x 3P: fixed CVS400 vertical installation; 1 x 4P: fixed CVS400 vertical installation; 1 x 3P: fixed CVS630 vertical installation; 1 x 4P: fixed CVS630 vertical installation; 1 x 3P: fixed EZC400 vertical installation; 1 x 4P: fixed EZC400 vertical installation; 1 x 3P: fixed EZC630 vertical installation; 1 x 4P: fixed EZC630 vertical installation; 1 x 3P: fixed INS320...400 vertical installation; 1 x 4P: fixed INS320...400 vertical installation; 1 x 3P: fixed INS500...630 vertical installation; 1 x 4P: fixed INS500...630 vertical installation; 1 x 3P: fixed INV320...400 vertical installation; 1 x 4P: fixed INV320...400 vertical installation; 1 x 3P: fixed INV500...630 vertical installation; 1 x 4P: fixed INV500...630 vertical installation; 1 x 3P: fixed NSX400 vertical installation; 1 x 4P: fixed NSX400 vertical installation; 1 x 3P: fixed NSX630 vertical installation; 1 x 4P: fixed NSX630 vertical installation; 1 x 3P: plug-in NSX400 vertical installation; 1 x 4P: plug-in NSX400 vertical installation; 1 x 3P: drawout NSX400 vertical installation; 1 x 4P: drawout NSX400 vertical installation; 2 x 3P: fixed NSX400 vertical installation; 2 x 4P: fixed NSX400 vertical installation; 2 x 3P: plug-in NSX400 vertical installation; 2 x 4P: plug-in NSX400 vertical installation; 2 x 3P: drawout NSX400 vertical installation; 2 x 4P: drawout NSX400 vertical installation; 1 x 3P: plug-in NSX630 vertical installation; 1 x 4P: plug-in NSX630 vertical installation; 1 x 3P: drawout NSX630 vertical installation; 1 x 4P: drawout NSX630 vertical installation; 2 x 3P: fixed NSX630 vertical installation; 2 x 4P: fixed NSX630 vertical installation; 2 x 3P: plug-in NSX630 vertical installation; 2 x 4P: plug-in NSX630 vertical installation; 2 x 3P: drawout NSX630 vertical installation; 2 x 4P: drawout NSX630 vertical installation; 2 x 3P: fixed CVS630 vertical installation; 2 x 4P: fixed CVS630 vertical installation; 2 x 3P: fixed CVS400 vertical installation; 2 x 4P: fixed CVS400 vertical installation

Number of vertical modules [50 mm]

13 module(s): CVS400 without earth leakage protection , direct in 650 mm Widecubicle; 13 module(s): CVS630 without earth leakage protection , direct in 650 mm Widecubicle; 13 module(s): EZC400, direct in 650 mm Widecubicle; 13 module(s): EZC630, direct in 650 mm Widecubicle; 10 module(s): INS320...400, direct in 650 mm Widecubicle; 11 module(s): INS500...630, direct in 650 mm Widecubicle; 10 module(s): INV320...400, direct in 650 mm Widecubicle; 11 module(s): INV500...630, direct in 650 mm Widecubicle; 11 module(s): NSX400 without earth leakage protection , direct in 650 mm Widecubicle; 13 module(s): NSX630 without earth leakage protection , direct in 650 mm Widecubicle; 15 module(s): CVS400 with earth leakage protection , direct in 650 mm Widecubicle; 13 module(s): CVS400 with earth leakage protection , direct in 650 mm Widecubicle; 15 module(s): CVS630 with earth leakage protection , direct in 650 mm Widecubicle; 13 module(s): CVS630 with earth leakage protection , direct in 650 mm Widecubicle; 13 module(s): NSX400 with earth leakage protection , direct in 650 mm Widecubicle; 15 module(s): NSX630 with earth leakage protection , direct in 650 mm Widecubicle

Standards

IEC 61439-2

Product certifications

ASTA

Material

Sheet steel

Protective treatment

Electrophoresis treatment and hot-polymerised polyester epoxy powder

Surface finish

Matt; Textured

Colour

White (RAL 9003)

Width

650 mm

Height

372 mm

Product weight

5.08 kg

Functional unit

650 mm 400 mm PrismaSeT P cubicle EasyPact CVS400 without fixed toggle vertical 3P 1 direct 13 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS400 without fixed toggle vertical 4P 1 direct 13 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS400 without fixed direct front rotary handle vertical 3P 1 direct 13 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS400 without fixed direct front rotary handle vertical 4P 1 direct 13 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS630 without fixed toggle vertical 3P 1 direct 13 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS630 without fixed toggle vertical 4P 1 direct 13 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS630 without fixed direct front rotary handle vertical 3P 1 direct 13 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS630 without fixed direct front rotary handle vertical 4P 1 direct 13 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle EasyPact EZC400 fixed toggle vertical 3P 1 direct 13 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle EasyPact EZC400 fixed toggle vertical 4P 1 direct 13 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle EasyPact EZC630 fixed toggle vertical 3P 1 direct 13 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle EasyPact EZC630 fixed toggle vertical 4P 1 direct 13 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact INS320...400 fixed direct front rotary handle vertical 3P 1 direct 10 87.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact INS320...400 fixed direct front rotary handle vertical 4P 1 direct 10 87.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact INS500...630 fixed direct front rotary handle vertical 3P 1 direct 11 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact INS500...630 fixed direct front rotary handle vertical 4P 1 direct 11 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact INV320...400 fixed direct front rotary handle vertical 3P 1 direct 10 87.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact INV320...400 fixed direct front rotary handle vertical 4P 1 direct 10 87.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact INV500...630 fixed direct front rotary handle vertical 3P 1 direct 11 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact INV500...630 fixed direct front rotary handle vertical 4P 1 direct 11 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without fixed toggle vertical 3P 1 direct 11 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without fixed toggle vertical 4P 1 direct 11 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without plug-in toggle vertical 3P 1 direct 11 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without plug-in toggle vertical 4P 1 direct 11 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without fixed direct front rotary handle vertical 3P 1 direct 11 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without fixed direct front rotary handle vertical 4P 1 direct 11 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without fixed motor mechanism vertical 3P 1 direct 11 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without fixed motor mechanism vertical 4P 1 direct 11 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without plug-in direct front rotary handle vertical 3P 1 direct 11 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without plug-in direct front rotary handle vertical 4P 1 direct 11 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without plug-in motor mechanism vertical 3P 1 direct 11 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without plug-in motor mechanism vertical 4P 1 direct 11 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without drawout toggle vertical 3P 1 direct 11 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without drawout toggle vertical 4P 1 direct 11 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without drawout direct front rotary handle vertical 3P 1 direct 11 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without drawout direct front rotary handle vertical 4P 1 direct 11 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without drawout motor mechanism vertical 3P 1 direct 11 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without drawout motor mechanism vertical 4P 1 direct 11 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without fixed toggle vertical 3P 2 direct 11 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without fixed toggle vertical 4P 2 direct 11 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without plug-in toggle vertical 3P 2 direct 11 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without plug-in toggle vertical 4P 2 direct 11 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without fixed direct front rotary handle vertical 3P 2 direct 11 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without fixed direct front rotary handle vertical 4P 2 direct 11 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without fixed motor mechanism vertical 3P 2 direct 11 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without fixed motor mechanism vertical 4P 2 direct 11 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without plug-in direct front rotary handle vertical 3P 2 direct 11 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without plug-in direct front rotary handle vertical 4P 2 direct 11 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without plug-in motor mechanism vertical 3P 2 direct 11 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without plug-in motor mechanism vertical 4P 2 direct 11 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without drawout toggle vertical 3P 2 direct 11 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without drawout toggle vertical 4P 2 direct 11 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without drawout direct front rotary handle vertical 3P 2 direct 11 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without drawout direct front rotary handle vertical 4P 2 direct 11 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without drawout motor mechanism vertical 3P 2 direct 11 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without drawout motor mechanism vertical 4P 2 direct 11 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without fixed toggle vertical 3P 1 direct 13 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without fixed toggle vertical 4P 1 direct 13 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without plug-in toggle vertical 3P 1 direct 13 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without plug-in toggle vertical 4P 1 direct 13 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without fixed direct front rotary handle vertical 3P 1 direct 13 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without fixed direct front rotary handle vertical 4P 1 direct 13 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without fixed motor mechanism vertical 3P 1 direct 13 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without fixed motor mechanism vertical 4P 1 direct 13 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without plug-in direct front rotary handle vertical 3P 1 direct 13 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without plug-in direct front rotary handle vertical 4P 1 direct 13 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without plug-in motor mechanism vertical 3P 1 direct 13 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without plug-in motor mechanism vertical 4P 1 direct 13 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without drawout toggle vertical 3P 1 direct 13 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without drawout toggle vertical 4P 1 direct 13 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without drawout direct front rotary handle vertical 3P 1 direct 13 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without drawout direct front rotary handle vertical 4P 1 direct 13 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without drawout motor mechanism vertical 3P 1 direct 13 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without drawout motor mechanism vertical 4P 1 direct 13 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without fixed toggle vertical 3P 2 direct 13 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without fixed toggle vertical 4P 2 direct 13 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without plug-in toggle vertical 3P 2 direct 13 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without plug-in toggle vertical 4P 2 direct 13 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without fixed direct front rotary handle vertical 3P 2 direct 13 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without fixed direct front rotary handle vertical 4P 2 direct 13 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without fixed motor mechanism vertical 3P 2 direct 13 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without fixed motor mechanism vertical 4P 2 direct 13 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without plug-in direct front rotary handle vertical 3P 2 direct 13 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without plug-in direct front rotary handle vertical 4P 2 direct 13 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without plug-in motor mechanism vertical 3P 2 direct 13 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without plug-in motor mechanism vertical 4P 2 direct 13 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without drawout toggle vertical 3P 2 direct 13 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without drawout toggle vertical 4P 2 direct 13 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without drawout direct front rotary handle vertical 3P 2 direct 13 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without drawout direct front rotary handle vertical 4P 2 direct 13 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without drawout motor mechanism vertical 3P 2 direct 13 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without drawout motor mechanism vertical 4P 2 direct 13 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS400 with fixed toggle vertical 3P 1 direct 15 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS400 with fixed toggle vertical 4P 1 direct 15 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS400 with fixed direct front rotary handle vertical 3P 1 direct 15 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS400 with fixed direct front rotary handle vertical 4P 1 direct 15 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS400 with fixed direct front rotary handle vertical 3P 2 direct 13 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS400 with fixed direct front rotary handle vertical 4P 2 direct 13 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS630 with fixed toggle vertical 3P 1 direct 15 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS630 with fixed toggle vertical 4P 1 direct 15 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS630 with fixed direct front rotary handle vertical 3P 1 direct 15 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS630 with fixed direct front rotary handle vertical 4P 1 direct 15 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS630 with fixed direct front rotary handle vertical 3P 2 direct 13 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS630 with fixed direct front rotary handle vertical 4P 2 direct 13 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with fixed toggle vertical 3P 1 direct 13 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with fixed toggle vertical 4P 1 direct 13 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with plug-in toggle vertical 3P 1 direct 13 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with plug-in toggle vertical 4P 1 direct 13 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with fixed direct front rotary handle vertical 3P 1 direct 13 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with fixed direct front rotary handle vertical 4P 1 direct 13 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with plug-in direct front rotary handle vertical 3P 1 direct 13 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with plug-in direct front rotary handle vertical 4P 1 direct 13 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with drawout toggle vertical 3P 1 direct 13 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with drawout toggle vertical 4P 1 direct 13 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with drawout direct front rotary handle vertical 3P 1 direct 13 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with drawout direct front rotary handle vertical 4P 1 direct 13 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with drawout motor mechanism vertical 3P 1 direct 13 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with drawout motor mechanism vertical 4P 1 direct 13 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with fixed toggle vertical 3P 2 direct 13 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with fixed toggle vertical 4P 2 direct 13 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with plug-in toggle vertical 3P 2 direct 13 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with plug-in toggle vertical 4P 2 direct 13 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with fixed direct front rotary handle vertical 3P 2 direct 13 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with fixed direct front rotary handle vertical 4P 2 direct 13 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with plug-in direct front rotary handle vertical 3P 2 direct 13 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with plug-in direct front rotary handle vertical 4P 2 direct 13 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with drawout toggle vertical 3P 2 direct 13 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with drawout toggle vertical 4P 2 direct 13 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with drawout direct front rotary handle vertical 3P 2 direct 13 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with drawout direct front rotary handle vertical 4P 2 direct 13 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with drawout motor mechanism vertical 3P 2 direct 13 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with drawout motor mechanism vertical 4P 2 direct 13 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with fixed toggle vertical 3P 1 direct 15 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with fixed toggle vertical 4P 1 direct 15 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with plug-in toggle vertical 3P 1 direct 15 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with plug-in toggle vertical 4P 1 direct 15 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with fixed direct front rotary handle vertical 3P 1 direct 15 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with fixed direct front rotary handle vertical 4P 1 direct 15 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with plug-in direct front rotary handle vertical 3P 1 direct 15 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with plug-in direct front rotary handle vertical 4P 1 direct 15 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with drawout toggle vertical 3P 1 direct 15 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with drawout toggle vertical 4P 1 direct 15 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with drawout direct front rotary handle vertical 3P 1 direct 15 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with drawout direct front rotary handle vertical 4P 1 direct 15 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with drawout motor mechanism vertical 3P 1 direct 15 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with drawout motor mechanism vertical 4P 1 direct 15 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with fixed toggle vertical 3P 2 direct 15 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with fixed toggle vertical 4P 2 direct 15 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with plug-in toggle vertical 3P 2 direct 15 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with plug-in toggle vertical 4P 2 direct 15 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with fixed direct front rotary handle vertical 3P 2 direct 15 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with fixed direct front rotary handle vertical 4P 2 direct 15 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with plug-in direct front rotary handle vertical 3P 2 direct 15 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with plug-in direct front rotary handle vertical 4P 2 direct 15 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with drawout toggle vertical 3P 2 direct 15 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with drawout toggle vertical 4P 2 direct 15 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with drawout direct front rotary handle vertical 3P 2 direct 15 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with drawout direct front rotary handle vertical 4P 2 direct 15 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with drawout motor mechanism vertical 3P 2 direct 15 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with drawout motor mechanism vertical 4P 2 direct 15 187.5 mm

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.700 cm

Package 1 Width

37.500 cm

Package 1 Length

57.500 cm

Package 1 Weight

5.087 kg

Unit Type of Package 2

P12

Number of Units in Package 2

80

Package 2 Height

75.000 cm

Package 2 Width

80.000 cm

Package 2 Length

120.000 cm

Package 2 Weight

420.960 kg

Country of origin

IT

Warranty (in months)

18

Perforated

No

Surface protection

Powder coating

HS Code

7326.90

• EAN 3606481874429
• SAP 1200546684
• Code 82879849
