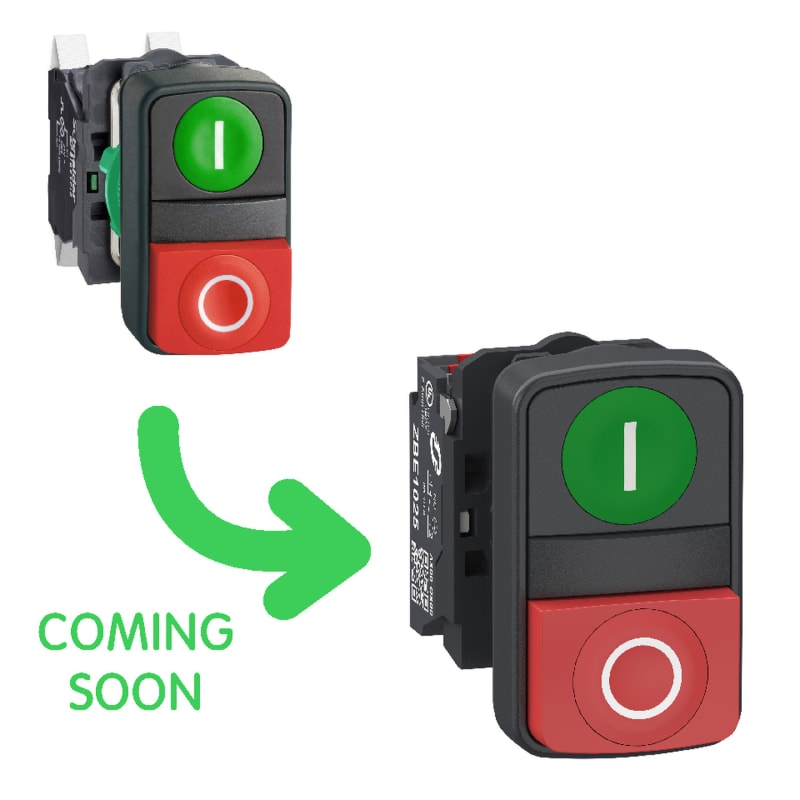

Schneider Electric Double headed push button, Harmony XB5, plastic, 22mm, 1 green marked I + 1 red projecting marked O, 1NO+1NC, push in XB5AL734155

Schneider Electric XB5AL734155 — Harmony XB4 22 mm command actuator. Metal or plastic 22 mm cutout push-button, selector or indicator. Double push-button complete with white 'In' and 'O' on red and green push surface 1xNO+1xNC with push-in.

Manufacturer part number (MPN)

XB5AL734155

EAN / GTIN

3389119607896

Sales unit

pcs

Package quantity

10 pcs

Range of product

Harmony XB5

Product or component type

Double-headed push-button

Device short name

XB5

Bezel material

Dark grey plastic

Fixing collar material

Plastic

Head type

Standard

Mounting diameter

22.5 mm

Shape of signaling unit head

Rectangular

Type of operator

spring return

Operator profile

1 flush - 1 projecting push-buttons

Operators description

Green ''I'' - red ''O''

Contacts type and composition

1 NO + 1 NC

Contact operation

Slow-break

Connections - terminals

Push-in, = 1 x 0.34 mm² without wire end ferrule conforming to IEC 60947-1

Device presentation

Complete product

Height

50 mm

Width

30 mm

Depth

51 mm

Terminals description ISO n°1

(21-22)NC; (13-14)NO

Product weight

0.045 kg

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Colour of marking

White marking when green, red or black caps; Black marking when white caps

Contacts usage

Standard contacts

Positive opening

With conforming to IEC 60947-5-1 appendix K

Operating travel

1.217 mm (NC changing electrical state); 2.05 mm (NO changing electrical state); 4.3 mm (total travel)

Operating force

2.25 N NC changing electrical state; 2.45 N NO changing electrical state

Mechanical durability

10000000 cycles

Contacts material

Silver alloy (Ag/Ni)

Short-circuit protection

10 A cartridge fuse type gG conforming to IEC 60947-5-1

[Ith] conventional free air thermal current

10 A conforming to IEC 60947-5-1

[Ui] rated insulation voltage

300 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

4 kV conforming to IEC 60947-1

[Ie] rated operational current

6 A at 120 V, AC-15, A300 conforming to IEC 60947-5-1; 3 A at 240 V, AC-15, A300 conforming to IEC 60947-5-1; 0.55 A at 125 V, DC-13, Q300 conforming to IEC 60947-5-1; 0.27 A at 250 V, DC-13, Q300 conforming to IEC 60947-5-1

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class II conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP67; IP69; IP69K

Enclosure Type

UL type 4X/13

IK degree of protection

IK03 conforming to IEC 50102

Standards

IEC 60947-1; IEC 60947-5-1; IEC 60947-5-4; IEC 60947-5-5; UL 60947-1; UL 60947-5-1; UL 60947-5-5; UL 1059; UL 486E; CSA C22.2 No 60947-1; CSA C22.2 No 60947-5-1; CSA C22.2 No 158; CSA C22.2 No 65; IACS E10

Product certifications

EAC; IECEE CB Scheme; CCC; UL; CSA

Vibration resistance

5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6; 25 mm peak to peak (f= 2…10 Hz) conforming to IEC 60068-2-6

Shock resistance

25 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27; 30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.200 cm

Package 1 Width

5.500 cm

Package 1 Length

9.000 cm

Package 1 Weight

53.000 g

Unit Type of Package 2

BB1

Number of Units in Package 2

10

Package 2 Height

12.500 cm

Package 2 Width

12.500 cm

Package 2 Length

18.500 cm

Package 2 Weight

614.000 g

Unit Type of Package 3

S01

Number of Units in Package 3

20

Package 3 Height

15.000 cm

Package 3 Width

15.000 cm

Package 3 Length

40.000 cm

Package 3 Weight

1.428 kg

Country of origin

FR

Warranty (in months)

18

Hole diameter

22.5 mm

Colour button

Red/green

Suitable for lighting

No

Number of command positions

2

Spring-return

Yes

Type of button

Combination

Colour front ring

Grey

Degree of protection (IP)

IP67/IP69K

Material front ring

Plastic

With front ring

Yes

Transparent

No

Construction type lens

Rectangular

Switching function latching

No

Number of contacts as normally closed contact

1

Number of contacts as normally open contact

1

HS Code

8536.50
