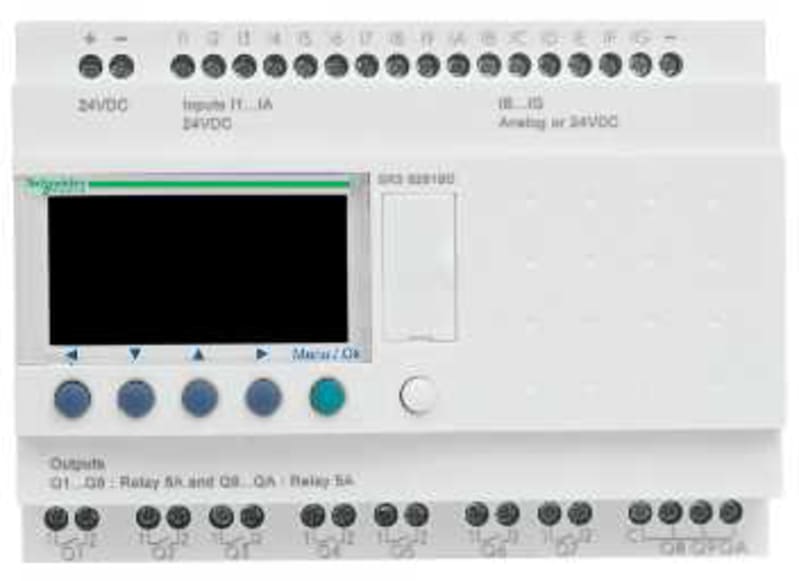

Schneider Electric modular smart relay Zelio Logic - “discovery” pack - 26 I O - 100..240 V AC SR3PACK2FU

Schneider Electric SR3PACK2FU Zelio SR3 Start 16/10I/O 240AC.

Manufacturer part number (MPN)

SR3PACK2FU

EAN / GTIN

3389110550054

Sales unit

pcs

Package quantity

10 pcs

Voltage

240 V

Range of product

Zelio Logic

Product or component type

Modular discovery packs

Discrete input number

16

Number of outputs

10 relay

Kit composition

Cable PC SR2USB01 for connection to PC; SR3B261FU

Input/output number

26

Local display

With

Number or control scheme lines

120 with ladder programming; 0…200 with FBD programming

Cycle time

6…90 ms

Backup time

10 years at 25 °C

Clock drift

12 min/year at 0…55 °C; 6 s/month at 25 °C

Checks

Program memory on each power up

[Us] rated supply voltage

100...240 V

Supply voltage limits

85…264 V

Supply frequency

50/60 Hz

Maximum supply current

100 mA at 100 V (without extension); 50 mA at 240 V (without extension); 60 mA at 240 V (with extensions); 80 mA at 100 V (with extensions)

Power consumption in VA

12 VA without extension; 17 VA with extensions

Isolation voltage

1780 V

Protection type

Against inversion of terminals (control instructions not executed)

Discrete input voltage

100...240 V AC

Discrete input current

0.6 mA

Discrete input frequency

47...53 Hz; 57...63 Hz

Voltage state 1 guaranteed

>= 79 V for discrete input

Voltage state 0 guaranteed

<= 40 V for discrete input

Current state 1 guaranteed

>= 0.17 mA (discrete input)

Current state 0 guaranteed

<= 0.5 mA (discrete input)

Input impedance

350 kOhm for discrete input

Output voltage limits

5...30 V DC (relay output); 24...250 V AC

Contacts type and composition

NO for relay output

Output thermal current

5 A for 2 outputs for relay output; 8 A for 8 outputs for relay output

Electrical durability

AC-12: 500000 cycles at 230 V, 1.5 A for relay output conforming to IEC 60947-5-1; AC-15: 500000 cycles at 230 V, 0.9 A for relay output conforming to IEC 60947-5-1; DC-12: 500000 cycles at 24 V, 1.5 A for relay output conforming to IEC 60947-5-1; DC-13: 500000 cycles at 24 V, 0.6 A for relay output conforming to IEC 60947-5-1

Switching capacity in mA

>= 10 mA at 12 V (relay output)

Operating rate in Hz

0.1 Hz (at Ie) for relay output; 10 Hz (no load) for relay output

Mechanical durability

10000000 cycles for relay output

[Uimp] rated impulse withstand voltage

4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1

Clock

With

Response time

50 ms with ladder programming (from state 0 to state 1) for discrete input; 50 ms with ladder programming (from state 1 to state 0) for discrete input; 50...255 ms with FBD programming (from state 0 to state 1) for discrete input; 50...255 ms with FBD programming (from state 1 to state 0) for discrete input; 10 ms (from state 0 to state 1) for relay output; 5 ms (from state 1 to state 0) for relay output

Connections - terminals

Screw terminals, 1 x 0.2...1 x 2.5 mm² (25 AWG...14 AWG) semi-solid; Screw terminals, 1 x 0.2...1 x 2.5 mm² (25 AWG...14 AWG) solid; Screw terminals, 1 x 0.25...1 x 2.5 mm² (24 AWG...14 AWG) flexible with cable end; Screw terminals, 2 x 0.2...2 x 1.5 mm² (24 AWG...16 AWG) solid; Screw terminals, 2 x 0.25...2 x 0.75 mm² (24 AWG...18 AWG) flexible with cable end

Tightening torque

0.5 N.m

Overvoltage category

III conforming to IEC 60664-1

Product weight

0.85 kg

Immunity to microbreaks

10 ms

Product certifications

GL; UL; C-Tick; CSA; GOST

Standards

IEC 61000-4-5; IEC 61000-4-2 level 3; IEC 60068-2-27 Ea; IEC 61000-4-3; IEC 60068-2-6 Fc; IEC 61000-4-6 level 3; IEC 61000-4-11; IEC 61000-4-4 level 3; IEC 61000-4-12

IP degree of protection

IP20 (terminal block) conforming to IEC 60529; IP40 (front panel) conforming to IEC 60529

Environmental characteristic

EMC directive conforming to IEC 61000-6-2; EMC directive conforming to IEC 61000-6-3; EMC directive conforming to IEC 61000-6-4; EMC directive conforming to IEC 61131-2 zone B; Low voltage directive conforming to IEC 61131-2

Disturbance radiated/conducted

Class B conforming to EN 55022-11 group 1

Pollution degree

2 conforming to IEC 61131-2

Ambient air temperature for operation

-20…40 °C in non-ventilated enclosure conforming to IEC 60068-2-1 and IEC 60068-2-2; -20…55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2

Ambient air temperature for storage

-40…70 °C

Operating altitude

2000 m

Maximum altitude transport

3048 m

Relative humidity

95 % without condensation or dripping water

Number of Units in Package 1

1

Number of Units in Package 2

10

Country of origin

FR

Warranty (in months)

18
