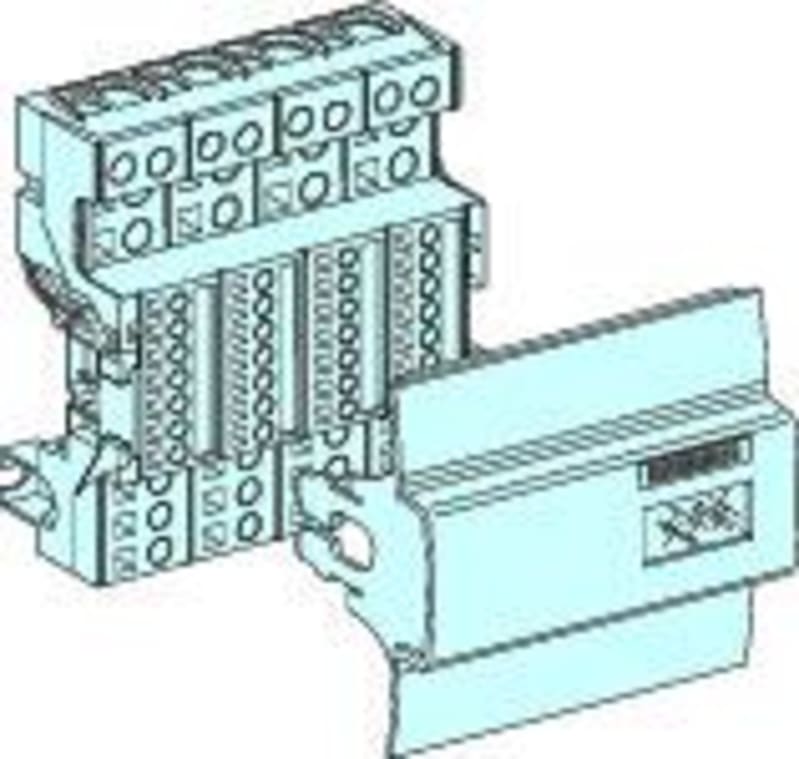

Linergy DX(Distriblock)160A with Connection G/P

Schneider Electric LVS04046 Fordelingsblokk-Linergy DX(Distriblock)-160A-4P-with connections-6modules-52 hole-PrismaSeT G/P.

Manufacturer part number (MPN)

LVS04046

EAN / GTIN

3606481870902

Sales unit

pcs

Range

Linergy

Range of product

Linergy

Product or component type

Distribution block

Product name

Linergy DX

Range compatibility

PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P enclosure; PrismaSeT Prisma POLAR WHITE enclosure; PrismaSeT PrismaSeT Pack 250 enclosure

Accessory / separate part category

Current distribution accessory

IP degree of protection

IPxx B

Provided equipment

Adhesive labels for phase identification; Identification label; Prefabricated flexible connection

Condition of use

Additional connector needed for INS40...160 (to be ordered separately)

Mounting support

DIN rail

Installed device

Acti 9: fixed C120 with earth leakage protection - control: toggle; Acti 9: fixed C120 without earth leakage protection - control: toggle; Acti 9: fixed iC120 with earth leakage protection - control: toggle; Acti 9: fixed iC120 without earth leakage protection - control: toggle; ComPact: fixed INS40 - control: direct front rotary handle - vertical installation; ComPact: fixed INS63 - control: direct front rotary handle - vertical installation; ComPact: fixed INS100 - control: direct front rotary handle - vertical installation; ComPact: fixed INS125 - control: direct front rotary handle - vertical installation; ComPact: fixed INS160 - control: direct front rotary handle - vertical installation; Multi9: fixed NG125 with earth leakage protection - control: toggle; Multi9: fixed NG125 without earth leakage protection - control: toggle; Multi9: fixed NG125 NA - control: toggle; ComPact: fixed NG160 with earth leakage protection - control: toggle; ComPact: fixed NG160 without earth leakage protection - control: toggle; ComPact: fixed NG160 NA without earth leakage protection - control: toggle; ComPact: fixed NSXm without earth leakage protection - control: toggle - vertical installation; ComPact: fixed NSXm with earth leakage protection - control: toggle - vertical installation

Poles description

4P

[Ue] rated operational voltage

690 V AC

[Ui] rated insulation voltage

750 V AC

[Uimp] rated impulse withstand voltage

8 kV

[Ie] rated operational current

160 A at 40 °C

[Icw] rated short-time withstand current

4.5 kA for 1 s

[Ipk] rated peak withstand current

20 kA

I²t on activation

20250000 A².s

Connections - terminals

Distribution: spring terminal, 2 x 4…10 mm² (flexible) ; Distribution: spring terminal, 2 x 4…10 mm² (rigid) ; Distribution: spring terminal, 3 x 2.5…6 mm² (flexible) ; Distribution: spring terminal, 3 x 2.5…6 mm² (rigid) ; Distribution: spring terminal, 7 x 1.5…4 mm² (flexible) ; Distribution: spring terminal, 7 x 1.5…4 mm² (rigid) ; Distribution: tunnel type terminal, 1 x 4…16 mm² (flexible) ; Distribution: tunnel type terminal, 1 x 4…25 mm² (rigid) ; Supply: cable with ferrule

9 mm pitches

12

Height

127 mm

Width

108 mm

Depth

48 mm

Product weight

1.28 kg

Colour

Anthracite grey (RAL 7016)

Pollution degree

3

Resistance to incandescent wire

960 °C conforming to IEC 60695-2-11

Standards

IEC 60947-7-1; IEC 61439-1, inside enclosure; IEC 61439-2, inside enclosure

Product certifications

ASTA

Ambient air temperature for operation

-25…55 °C

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

10.000 cm

Package 1 Width

14.800 cm

Package 1 Length

24.500 cm

Package 1 Weight

1.201 kg

Unit Type of Package 2

P12

Number of Units in Package 2

104

Package 2 Height

56.000 cm

Package 2 Width

80.000 cm

Package 2 Length

120.000 cm

Package 2 Weight

138.904 kg

Country of origin

FR

Warranty (in months)

18

Nominal current

160 A

Mounting method

DIN-rail/screw

Connection type

Without screws

Number of poles

4

Contact safe

Yes

Suitable for fine strand conductors

No

Suitable for solid conductors

No

Suitable for stranded conductors

No

Suitable for fine strand conductors without cable end sleeve

No

Suitable for extra fine-strand conductors

No

HS Code

8536.90
