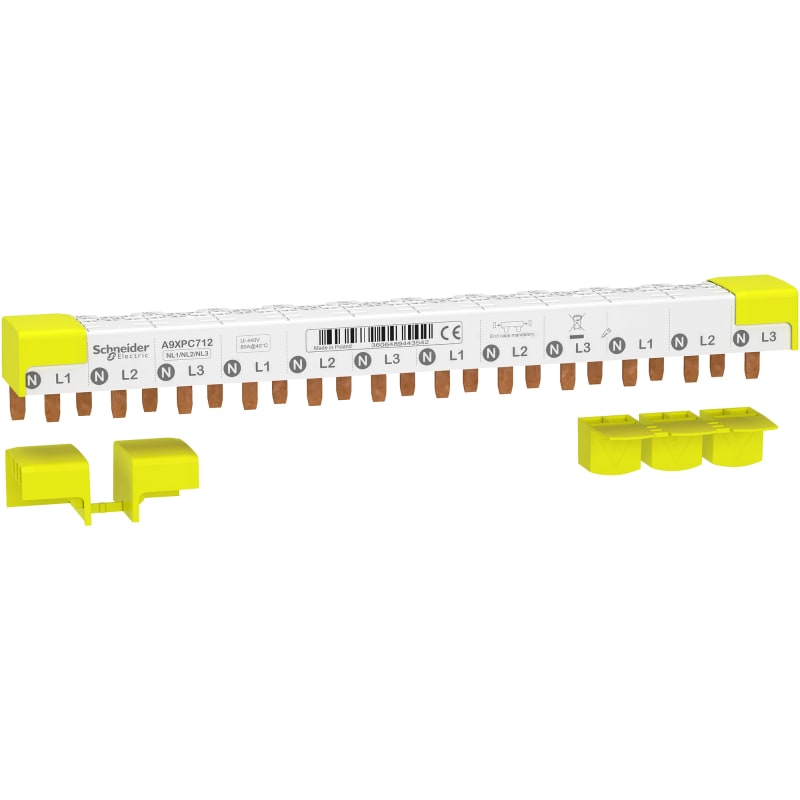

Schneider Electric comb busbar, ACTI9, 3P+N balanced, 9 mm pitch, 12 modules, 80 A A9XPC712

Schneider Electric A9XPC712 Acti 9 busbar 3PN 12 mod iC40.

Manufacturer part number (MPN)

A9XPC712

EAN / GTIN

3606489443542

Sales unit

pcs

Package quantity

12 pcs

Modular width

12 modules

Range

Acti9

Product or component type

Comb busbar

mounting mode

Horizontal

Accessory / separate part category

Connection accessory

Lines description

3L + N

Length in 18 mm modules

12

Standards

EN/IEC 61439-1

Number of ways

12 ways N + L

Distribution type

N L1 N L2 N L3

Poles configuration for 1 way

1 x 1P + N; 0.33 x 3P; 0.33 x 3P + N

Connection pitch

9 mm between phase and neutral; 18 mm between phases

Connector type

Tooth

Distance between way

18 mm

Marking

N L1 N L2 N L3

Insulation

Insulated

Device presentation

Cuttable

Provided equipment

end-pieces; tooth covers

[Ie] rated operational current

80 A at 40 °C

[Ue] rated operational voltage

230 V AC Ph/N; 400 V AC Ph/Ph

[Ui] rated insulation voltage

440 V AC conforming to IEC 61439-1

[Uimp] rated impulse withstand voltage

4 kV

Mounting location

Top on tunnel type terminals

9 mm pitches

24

Height

32 mm

Width

218 mm

Depth

28 mm

Product weight

150 g

Colour

White (RAL 9003)

Range compatibility

Acti9 C40; Acti9 C40 Vigi; Acti9 iDPN; Acti9 iDPN Vigi; Multi9 N40; Multi9 N40 Vigi; Acti9 iC40; Acti9 iCV40; Acti9 Vigi iCG40; Acti9 iID40; Acti9 iCVm40; Acti9 iCVr40; Acti9 iDDm40

Fire resistance

960 °C ( 30 s ) conforming to IEC 60695-2-1

Pollution degree

3 conforming to EN/IEC 60439-1

IP degree of protection

IP20 with end-pieces and tooth covers

Number of Units in Package 1

1

Number of Units in Package 2

12

Number of Units in Package 3

600

Country of origin

PL

Warranty (in months)

18

Insulated

Yes

Number of phases

3

Rated permanent current Iu

80 A

Number of poles

4

Length

276 mm

Width in number of modular spacings

12

Rated surge voltage

4 kV

Type of electric connection

Pin

Suitable for devices with auxiliary switch

No

Suitable for devices with N-conductor

Yes

Suitable for number of devices

4

Max. rated operation voltage Ue

400 V

Module width

9 mm

Can be cut to size

Yes

HS Code

8536.90
