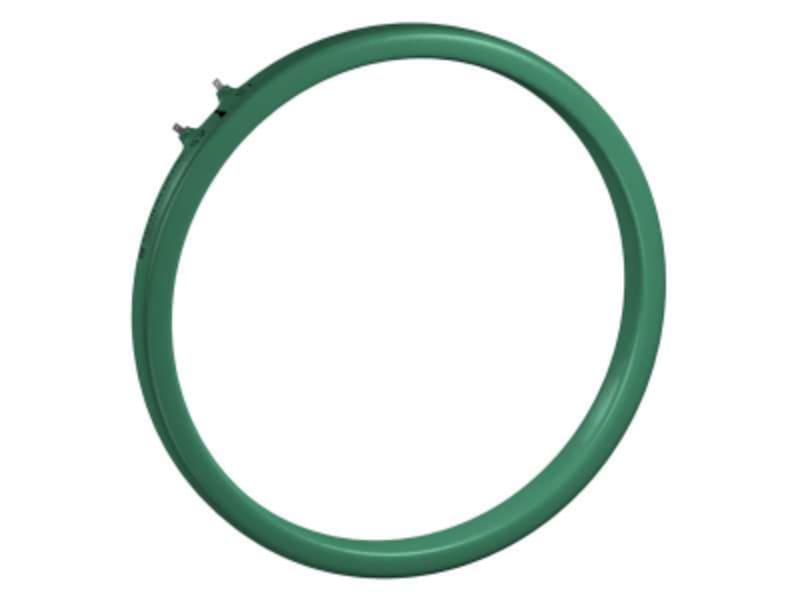

GA300MM Closed (50442)

Schneider Electric 50442 GA300mm Closed.

Manufacturer part number (MPN)

50442

EAN / GTIN

3303430504429

Sales unit

pcs

Package quantity

5 pcs

Range

VigiPacT

Device short name

GA300

Product or component type

Earth leakage current sensor

Device application

Equipment monitoring and control

Range compatibility

VigiPacT RH10M residual current protection relay; VigiPacT RH10P residual current protection relay; VigiPacT RH21M residual current protection relay; VigiPacT RH21P residual current protection relay; VigiPacT RH68M residual current protection relay; VigiPacT RH86M residual current protection relay; VigiPacT RH86P residual current protection relay; VigiPacT RH99M residual current protection relay; VigiPacT RH99P residual current protection relay; VigiPacT RH197M residual current protection relay; VigiPacT RH197P residual current protection relay; VigiPacT RHU residual current protection relay; VigiPacT RHUs residual current protection relay; VigiPacT RMH residual current protection relay

current sensor type

A type closed toroid

[Ie] rated operational current

630 A

Transformer ratio

1/1000

Network frequency

50/60 Hz; 400 Hz

[Icw] rated short-time withstand current

85 kA for 0.5 s

Residual short-circuit withstand current

85 kA / 0.5 s conforming to IEC 60947-2

[Ui] rated insulation voltage

1000 V

Overvoltage category

IV

[Uimp] rated impulse withstand voltage

12 kV

Mounting mode

Fixed (cables)

Connections - terminals

Screw connection 0.22…2.5 mm²

Diameter

291 mm inner:

Product weight

2.28 kg

Height

Outside: 360 mm

Width

Outside: 390 mm

Depth

46 mm

IP degree of protection

Body: IP30; Connectors: IP20

Environmental characteristic

Exposure to damp heat in service: category C2: 48 hours conforming to IEC 60068-2-56; Exposure to damp heat not in service (25...55 °C, PURE WHITE 95 %) : 28 cycles conforming to IEC 60068-2-30; Salt mist: Kb/2 conforming to IEC 60068-2-52

Pollution degree

Level 3 conforming to IEC 60664-1

Ambient air temperature for operation

-35…70 °C

Ambient air temperature for storage

-55…85 °C

Standards

IEC 60947-2

Product certifications

CE

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

5.400 cm

Package 1 Width

36.800 cm

Package 1 Length

40.200 cm

Package 1 Weight

2.139 kg

Unit Type of Package 2

S04

Number of Units in Package 2

5

Package 2 Height

30.000 cm

Package 2 Width

40.000 cm

Package 2 Length

60.000 cm

Package 2 Weight

11.393 kg

Country of origin

FR

Warranty (in months)

18

Model

Summation current transformer

Rated primary current

630 A

Rated secondary current

0.63 A

Accuracy class

1

Calibrated

Yes

With contact protection

Yes

Opening diameter

291 mm

Snap mounting

No

With copper rail

No

Number of primary inputs

4

HS Code

8504.31
