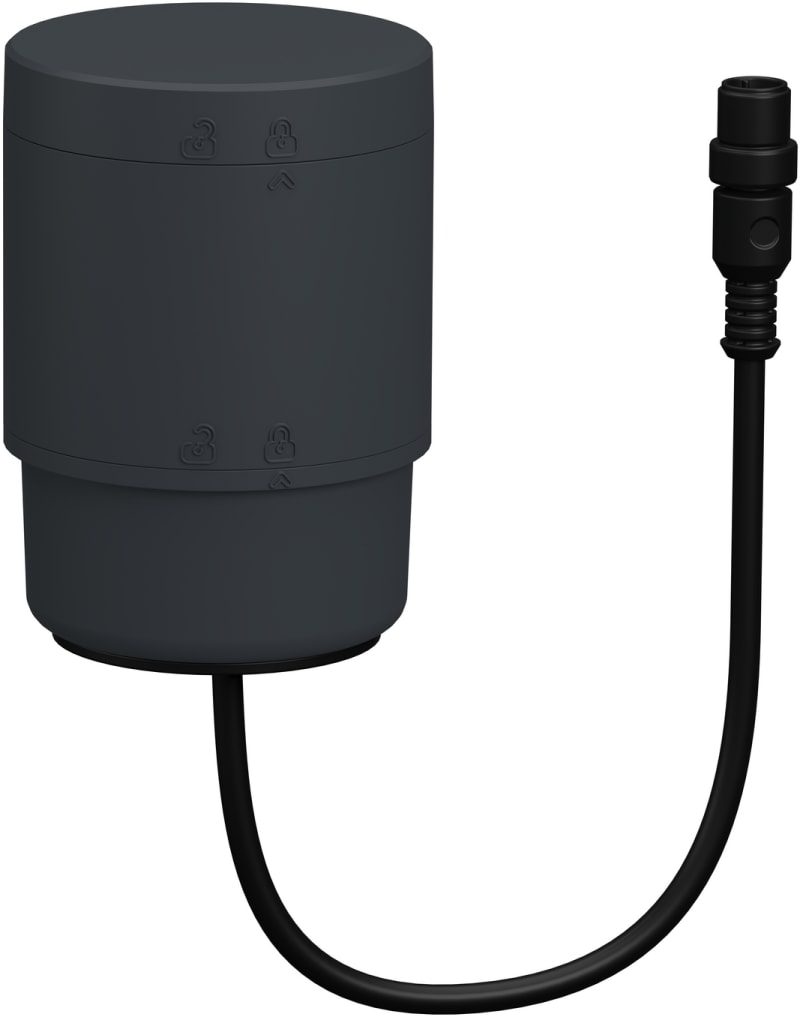

Bunndel with cover in grey for IO Link

Bunndel for XVB7 lyskolonne in Ø70 mm with adapter and cover in dark grey f/IO Link with M12 connector.

Manufacturer part number (MPN)

XVB7C31

EAN / GTIN

3606487129271

Sales unit

pcs

Package quantity

15 pcs

Range of product

Harmony XVB7

Product or component type

Base module

Device composition

Base direct/tube & cover

Device short name

XVB7

Mounting diameter

70 mm

Electrical connection

IO Link

Communication port protocol

IO Link v1.1

fixing mode

Direct or tube fixing

Mounting position

Upright/inverted

Assembly style

Up to 5 Modules (4 lens + 1 sound or 5 lens)

Material

Polycarbonate

Housing colour

Dark grey

Product weight

0.227 kg

[Ue] rated operational voltage

24 V DC

Rated operational voltage limits

21.6...26.4 V DC

Electrical shock protection class

Class II

Current consumption

6 mA

Output current

500 mA max per channel; 1600 mA max all channels

Connections - terminals

M12, 5 Pol Male, A-Coded port

Type of cable

M12 cable 15cm

[Ui] rated insulation voltage

50 V

[Uimp] rated impulse withstand voltage

0.5 kV

Pollution degree

2

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-40…70 °C

IP degree of protection

IP66

Environmental Type ratings

UL type 4X/13

Vibration resistance

6 gn, amplitude = +/- 0.5 mm (f = 10…500 Hz)in operation

Shock resistance

30 gn (duration = 6 ms) for in operation

Standards

UL 60947-5-1; IEC 60947-5-1; CSA C22.2 No 60947-5-1

Product certifications

cULus; CCC; RCM; UKCA; CE

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

7.200 cm

Package 1 Width

7.200 cm

Package 1 Length

18.000 cm

Package 1 Weight

204.000 g

Unit Type of Package 2

S03

Number of Units in Package 2

15

Package 2 Height

30 cm

Package 2 Width

30 cm

Package 2 Length

40 cm

Package 2 Weight

3.547 kg

Country of origin

DE

Warranty (in months)

18

Suitable for tube mounting

Yes

Suitable for angle mounting

No

Suitable for AS interface

No

Suitable for M12 connector

Yes

Suitable for IO link

Yes

Suitable for floor mounting

Yes

HS Code

8536.90
