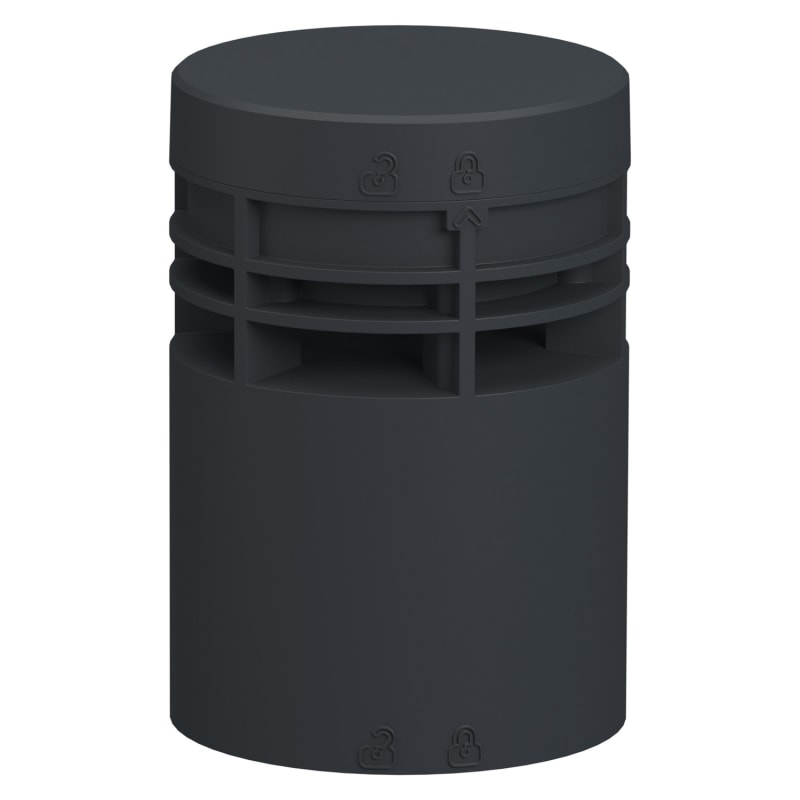

Sound module for MP3 files in grey plastic
Pricing
Request a quote
We reply within 24 hours
Product Description
Sound module for XVB7 signal tower in Ø70 mm dark grey for use with MP3 files, up to 16 tones and 88 dB.
Technical Specifications
- Manufacturer part number (MPN)
- XVB7C9V
- EAN / GTIN
- 3606487129653
- Sales unit
- pcs
- Package quantity
- 30 pcs
- Range of product
- Harmony XVB7
- Device composition
- Editable voice alarm
- Device short name
- XVB7
- Mounting diameter
- 70 mm
- Signalling type
- Audio sound; 16 tones max
- Material
- Polycarbonate
- Housing colour
- Dark grey
- Product weight
- 0.212 kg
- Mounting position
- Upright
- Noise level
- 88 dB distance 1 m
- Control type
- External power input to select up to 16 tones
- Data format
- Mp3 and wav
- Memory capacity
- 8 MB
- Integrated connection type
- 1 USB
- [Ue] rated operational voltage
- 24 V DC
- Rated operational voltage limits
- 21.6...26.4 V DC
- Current consumption
- 150 mA at 24 V DC
- Inrush current
- 1 A
- Electrical shock protection class
- Class II
- [Ui] rated insulation voltage
- 50 V
- [Uimp] rated impulse withstand voltage
- 0.5 kV
- Pollution degree
- 2
- Ambient air temperature for operation
- -25…60 °C
- Ambient air temperature for storage
- -40…70 °C
- IP degree of protection
- IP66
- Environmental Type ratings
- UL
Standards & Compliance
- HS Code
- 8531.80
Cross References
- EAN 3606487129653
- SAP 1200934889
- Code 84224027
