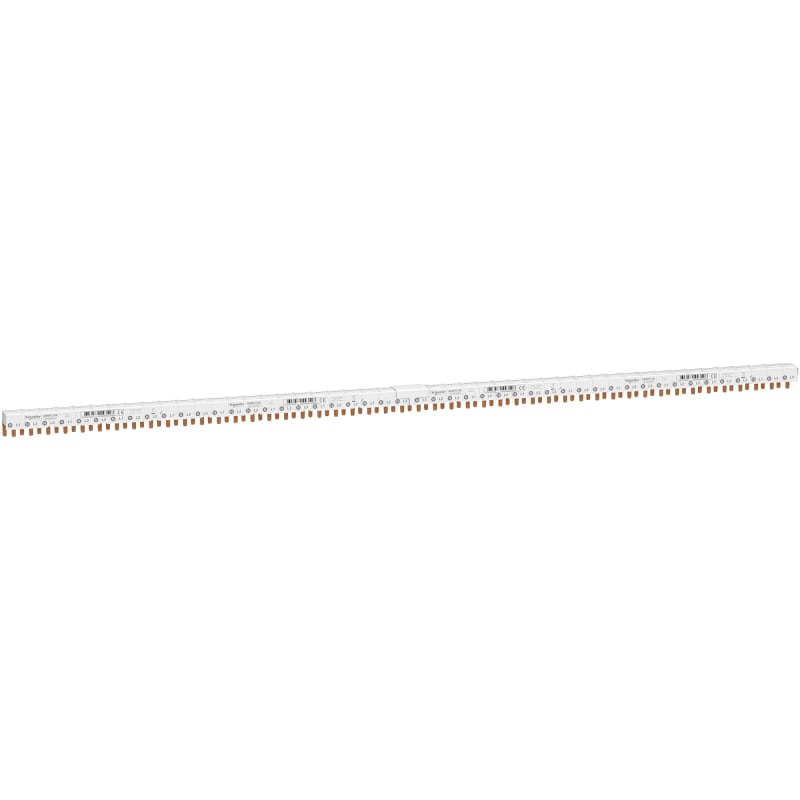

Schneider Electric comb busbar, ACTI9, 3P+N balanced, 9 mm pitch, 48 modules, 80A A9XPC748
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9XPC748 Acti 9 busbar 3PN 48 mod iC40.
Technical Specifications
- Manufacturer part number (MPN)
- A9XPC748
- EAN / GTIN
- 3606489443528
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Modular width
- 48 modules
- Range
- Acti9
- Product or component type
- Comb busbar
- mounting mode
- Horizontal
- Accessory / separate part category
- Connection accessory
- Lines description
- 3L + N
- Length in 18 mm modules
- 48
- Standards
- EN/IEC 61439-1
- Number of ways
- 16 ways N + 3 L (balanced)
- Distribution type
- N L1 N L2 N L3
- Poles configuration for 1 way
- 1 x 3P + N; 1 x 3P; 3 x 1P + N
- Connection pitch
- 9 mm between phase and neutral; 18 mm between phases
- Connector type
- Tooth
- Distance between way
- 54 mm
- Marking
- N L1 N L2 N L3
- Insulation
- Insulated
- Device presentation
- Cuttable
- [Ie] rated operational current
- 80 A at 40 °C
- [Ue] rated operational voltage
- 230 V AC Ph/N; 400 V AC Ph/Ph
- [Ui] rated insulation voltage
- 440 V AC conforming to IEC 61439-1
- [Uimp] rated impulse withstand voltage
- 4 kV
- Mounting location
- Top on tunnel type terminals
- 9 mm pitches
- 96
- Height
- 29 mm
- Width
- 862 mm
- Depth
- 26 mm
- Product weight
- 579 g
- Colour
- White (RAL 9003)
- Range compatibility
- Acti9 Acti9 C40; Acti9 Acti9 C40 Vigi; Acti9 Acti9 iDPN; Acti9 Acti9 iDPN Vigi; Multi9 Multi9 N40; Multi9 Multi9 N40 Vigi; Acti9 Acti9 iC40; Acti9 Acti9 iCV40; Acti9 Vigi iCG40; Acti9 Acti9 iID40
- Fire resistance
- 960 °C ( 30 s ) conforming to IEC 60695-2-1
- Pollution degree
- 3 conforming to EN/IEC 60439-1
- IP degree of protection
- IP20 with end-pieces and tooth covers
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 6
- Number of Units in Package 3
- 240
- Country of origin
- PL
- Warranty (in months)
- 18
- Insulated
- Yes
- Number of phases
- 3
- Rated permanent current Iu
- 80 A
- Number of poles
- 4
- Length
- 862 mm
- Width in number of modular spacings
- 48
- Rated surge voltage
- 4 kV
- Type of electric connection
- Pin
- Suitable for devices with auxiliary switch
- No
- Suitable for devices with N-conductor
- Yes
- Suitable for number of devices
- 16
- Max. rated operation voltage Ue
- 400 V
- Module width
- 9 mm
- Can be cut to size
- Yes
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606489443528
- SAP 1200232034
- Code 82180560
Product Documentation
