Schneider Electric

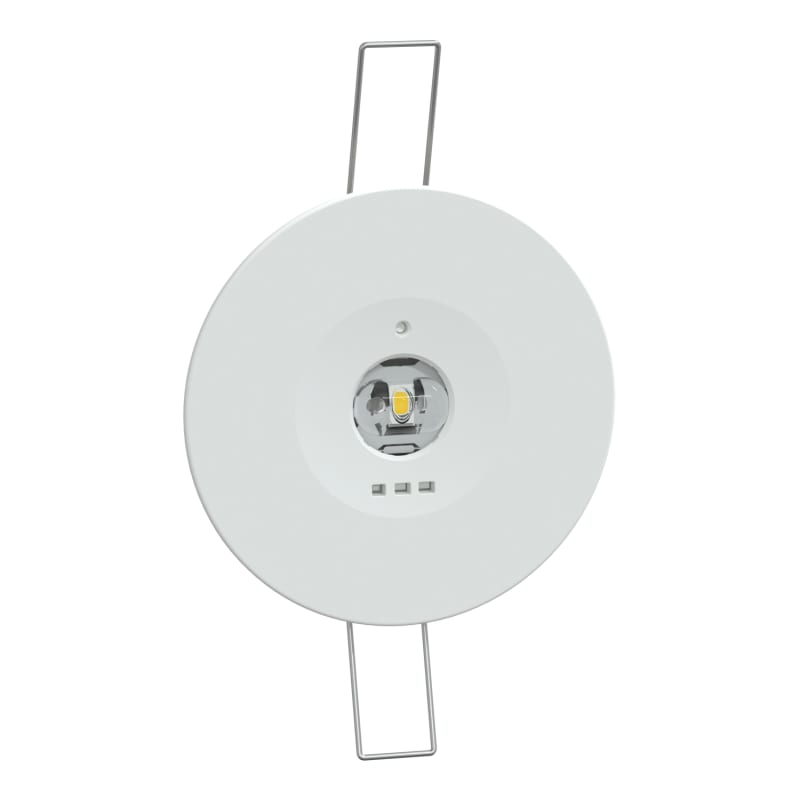

Schneider Electric Emergency luminaire, Exiway Smartbeam, act-dicube, 1H, recessed, corridor, high flux, white OVA48980
Part numberOVA48980EAN / GTIN3606487002871HS code9405.11
Lighting & Electrical Accessories
Emergency Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric OVA48980 Exiway Smartbeam emergency lighting Activa/Dali, 550lm, recessed, asymmetric, 1 t, M/NM, IP42, LiFePO4.
Technical Specifications
- Manufacturer part number (MPN)
- OVA48980
- EAN / GTIN
- 3606487002871
- Sales unit
- pcs
- IP rating
- IP42
- Luminous flux
- 550 lm
- Range
- Exiway
- Product name
- Exiway Smartbeam DiCube
- Product or component type
- Emergency luminaire
- Device application
- Anti-panic lighting
- Function
- Addressable; Self-test
- Operational mode
- Maintained; Non-maintained
- Number of batteries
- 1 x 3.2 V 3.2 Ah LiFePO4
- Colour tint
- White
- Light source
- LED
- Visibility distance
- 20 m
- Light source colour
- White
- Cover type
- Transparent
- Device mounting
- Flush
- Mounting support
- False ceiling
- [Ue] rated operational voltage
- 230 V AC 50/60 Hz
- Power consumption in VA
- 8.8 VA maintained; 4.4 VA non-maintained
- Power consumption in W
- 3.66 W maintained; 0.22 W non-maintained
- Electrical insulation class
- Class II
- Communication port protocol
- DALI
- LED lifespan
- 100000 h
- Function available
- Automatic addressing of emergency lighting by means of control unit
- Test function
- Automatic periodical functional & duration test
- Autonomy
- 1 h
- Charging time
- 12 h
- Illuminance
- 1 lux
- Material
- Polycarbonate self-extinguishing
- Depth
- 32 mm
- Diameter
- 90 mm
- Product weight
- 0.3 kg
- IP degree of protection
- IP42
- IK degree of protection
- IK04
- fire resistance
- 850 °C
- Product certifications
- ENEC; CE
- Ambient air temperature for operation
- 0…40 °C
- Standards
- EN 60598-2-22; EN 62471; EN 62034; EN 60598-1
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 12
- Warranty (in months)
- 18
- Mounting method
- Surface mounting/recessed mounting
- Type of indicator
- Single/double-sided
- Monitoring equipment
- Automatic self test
- Power supply system
- Peripheral (individual battery)
- Battery technology
- Lithium-ion
- Lamp type
- LED not exchangeable
- Lamp holder
- None
- Housing material
- Plastic
- Housing colour
- White
- Voltage type
- AC
- Type of control gear
- LED operating device current-controlled
- Light distributor
- Focal lens
- Luminous flux in emergency mode
- 550 lm
- Rated lifetime L70/B50 at 25 °C
- 100000 h
- Degree of protection (IP)
- IP42
- Impact strength
- IK04
- Protection class according to IEC 61140
- II
- Max. system power
- 3.66 W
- Rated luminous flux according to IEC 62722-2-1
- 550 lm
- Luminous flux in standby mode
- 220 lm
- Recognition distance
- 20 m
- Height/depth
- 32 mm
- Outer diameter
- 90 mm
- Type of wiring
- Suitable for loop-through wiring
- Conductor cross section
- 2.5 mm²
- Connection type
- Plug-in connection
- Emergency power supply system
- Peripheral (individual battery)
- Power consumption in emergency mode
- 3.66 W
- Emergency function monitoring system
- Automatic self test
- Type of lithium-ion battery
- Lithium iron phosphate (LiFePO4)
- Country of origin
- Italy
