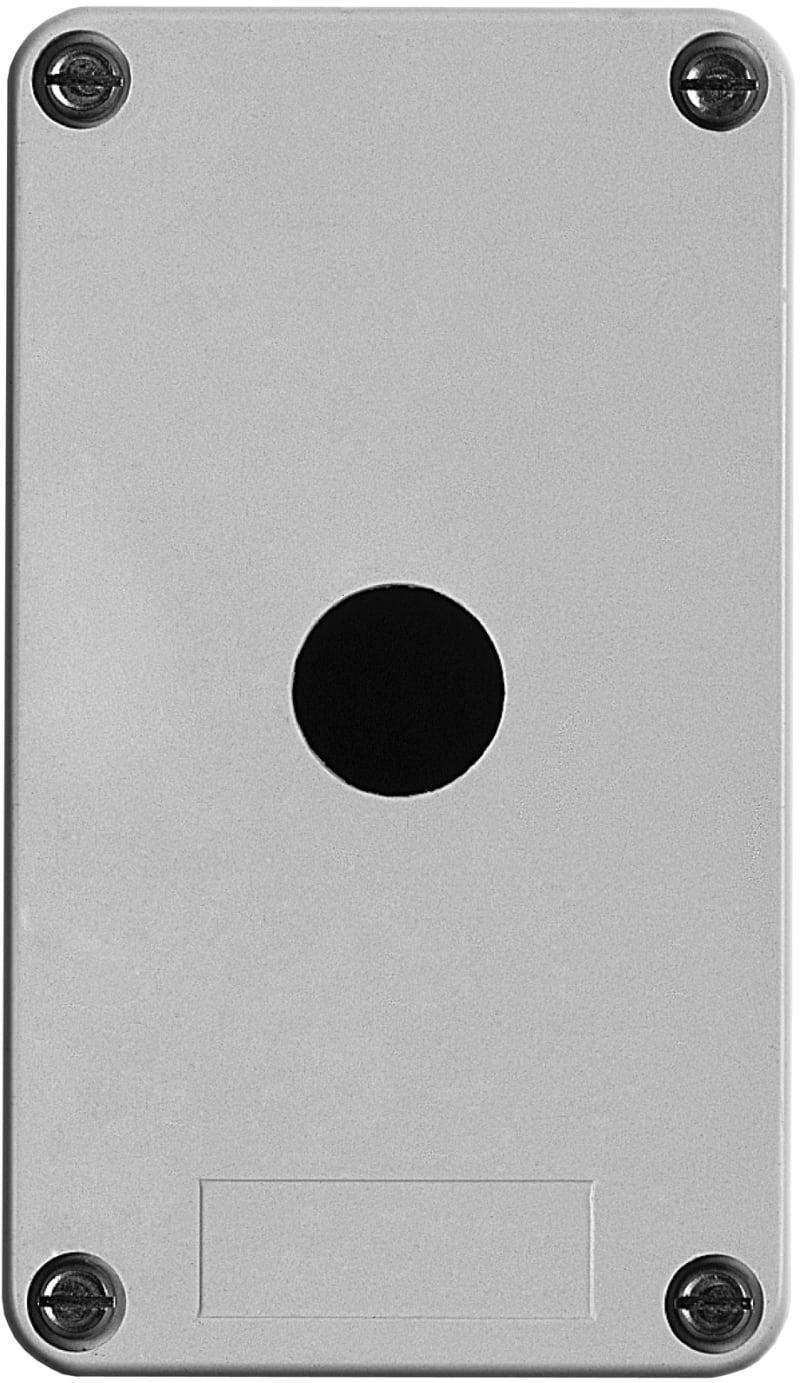

Schneider Electric Harmony XAP-A Empty Control Station, 1 Cut-Out

Empty control station from the Harmony XAP-A range with one cut-out for 22 mm control and signalling devices. Grey glass-reinforced polyester enclosure with an 85 x 146 mm front plate and 83 mm usable depth; cable entries are undrilled. Rated IP65 per IEC 60529 and IP69/IP69K, with high resistance to acids, solvents, oils and sea water. Suitable for flush mounting in industrial and outdoor installations from -40 to 70 degC.

Manufacturer part number (MPN)

XAPA1110

EAN / GTIN

3389110313130

Sales unit

pcs

Package quantity

12 pcs

Range of product

Harmony XAP

Product or component type

Empty control station without hinges

Device short name

XAPA

Product destination

For Ø 22 mm control and signalling units

Product front plate size

85 x 146 mm

Usable depth

83 mm

Number of cut-out

1 cut-out

Colour of base of enclosure

Grey

Colour of cover

Grey

Material

Glass reinforced polyester

Cable entry

Undrilled

Device mounting

Flush

IP degree of protection

IP65 conforming to IEC 60529; IP69 conforming to NF C 20-010; IP69K

Resistance to chemical agents

High resistant to acids; High resistant to all solvents; High resistant to bases; High resistant to diesel; High resistant to mineral salts; High resistant to oils and greases; High resistant to petrol; High resistant to sea water

Number of vertical rows

1

Flame retardance

M3 conforming to CSTB; VO conforming to UL 94

Product weight

0.45 kg

Protective treatment

TH; TC

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class II conforming to IEC 60536; Class II conforming to NF C 20-030

Fire resistance

850 °C conforming to NF C 20-455; 960 °C conforming to IEC 92

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

13.500 cm

Package 1 Width

9.000 cm

Package 1 Length

15.500 cm

Package 1 Weight

495.000 g

Unit Type of Package 2

S03

Number of Units in Package 2

12

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

6.528 kg

Unit Type of Package 3

P06

Number of Units in Package 3

96

Package 3 Height

75.000 cm

Package 3 Width

60.000 cm

Package 3 Length

80.000 cm

Package 3 Weight

63.244 kg

Country of origin

FR

Warranty (in months)

18

Width

85 mm

Height

146 mm

Depth

87 mm

Diameter openings

22.5 mm

Number of command positions

1

Colour housing cover

Grey

Housing material

Plastic

Construction type housing

Surface mounted housing

Degree of protection (IP)

IP65

Housing material quality

Acrylonitrile butadiene styrene (ABS)

HS Code

8538.10
