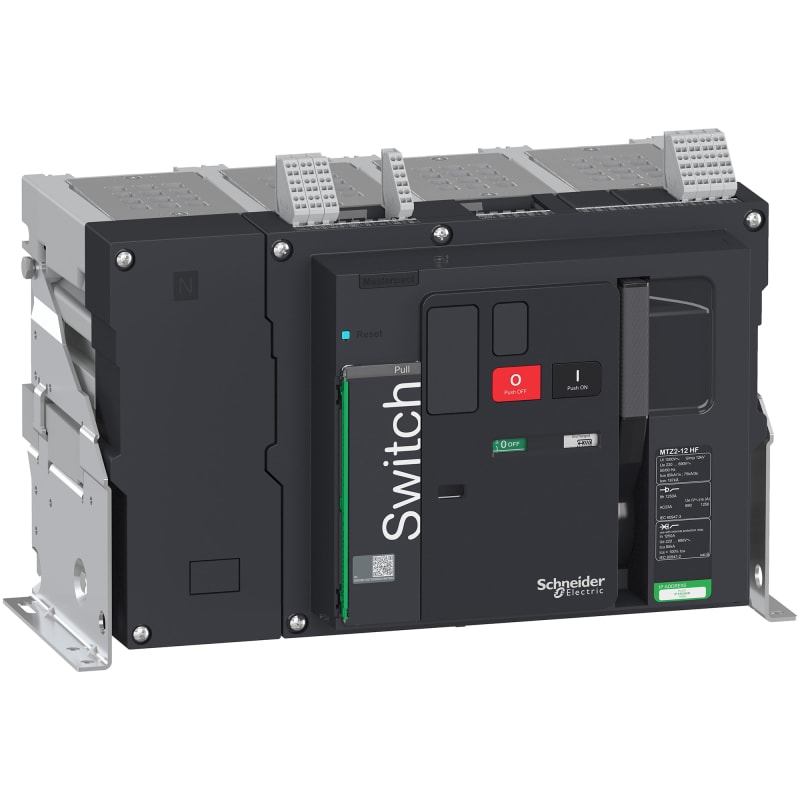

Schneider Electric switch disconnector Masterpact MTZ2 12 HF, 1250 A, 4 poles, fixed LV848041
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LV848041 Load-break switch Masterpact MTZ2 12HF 1250A 4p fixed-mounted without connections.
Technical Specifications
- Manufacturer part number (MPN)
- LV848041
- EAN / GTIN
- 3606480817410
- HS code
- 8536.90
- Sales unit
- pcs
- Number of poles
- 4P
- Range
- MasterPact
- Product or component type
- Switch disconnector
- Device application
- Distribution
- Switch-disconnector name
- MasterPact MTZ2 12 HF
- Poles description
- 4P
- Neutral position
- Left
- Network type
- AC
- Network frequency
- 50/60 Hz
- Control type
- Push-button
- mounting mode
- Fixed
- [Ue] rated operational voltage
- 690 V AC 50/60 Hz conforming to EN/IEC 60947-3
- [Ie] rated operational current
- 1250 A AC 50/60 Hz 690 V
- [Ui] rated insulation voltage
- 1000 V AC 50/60 Hz conforming to EN/IEC 60947-3
- [Uimp] rated impulse withstand voltage
- 12 kV conforming to EN/IEC 60947-3
- [Icw] rated short-time withstand current
- 50 kA during 3 s conforming to EN/IEC 60947-3; 85 kA during 1 s conforming to EN/IEC 60947-3
- [Icm] rated short-circuit making capacity
- 187 kA peak 220...690 V AC at 50/60 Hz
- Utilisation category
- AC-23A; AC-3
- performance level
- HF
- Suitability for isolation
- Yes conforming to EN/IEC 60947-3
- Contact position indicator
- Yes
- Visible break
- No
- Mechanical durability
- 25000 cycles with periodic preventive maintenance conforming to EN/IEC 60947-3
- Electrical durability
- AC-23A: 10000 cycles 440 V AC 50/60 Hz conforming to EN/IEC 60947-3; AC-23A: 10000 cycles 690 V AC 50/60 Hz conforming to EN/IEC 60947-3; AC-3: 6000 cycles 440 V AC 50/60 Hz conforming to EN/IEC 60947-3; AC-3: 6000 cycles 690 V AC 50/60 Hz conforming to EN/IEC 60947-3
- Connection pitch
- 115 mm
- Height
- 352 mm
- Width
- 537 mm
- Depth
- 300 mm
- Product weight
- 65 kg
- Standards
- EN/IEC 60947-3
- Product certifications
- IECEE CB Scheme
- IP degree of protection
- IP30
- Pollution degree
- 3 conforming to EN/IEC 60947-4-1
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -40…85 °C
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480817410
- SAP 1200498164
- Code 82621701
Product Documentation
More from Schneider Electric
Schneider Electric
Push-button, flush, for LED, red, raised (ZB5FH43)
Schneider Electric
Push-button flush white (ZB4FH01)
Schneider Electric
Schneider Electric basic keypad door mounting kit VW3A1114
Schneider Electric
Push-Button Head Pressure/Pressure Black (ZB4BH2)
Schneider Electric
Floor-Standing Cabinet 14X6X4 U.PL.
NSYSM14640
Schneider Electric
Schneider Electric XPSUEP34AP Preventa CAT.4 expansion module 48-240 V AC/DC screw
Schneider Electric
Schneider Electric switch disconnector Masterpact MTZ2 08 HF, 800 A, 4 poles, fixed LV848013
Schneider Electric
Flexible 40A 2M BusWhite
KBA40DF420TW
Technical guides
- Switch-Disconnector and Safety Switch Cross-Reference — Eaton P1 / P3 / N, Schneider Interpact INS / TeSys Vario, ABB OT / OTE, Siemens 3LD / 3KD, Kraus & Naimer KG by Rating and Poles
- Schneider Electric Acti9 iC60 RCBO Selection Guide (IEC 61009)
- Motor Switching with TeSys — Pairing LC1D Contactors with LRD Overload Relays
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy LV848041?
- LV848041 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is LV848041.
- What is the HS code for LV848041?
- The customs tariff (HS) code for LV848041 is 8536.90.
- Who manufactures LV848041?
- LV848041 is a Schneider Electric product in the Switchgear & Protection range.
- Is a datasheet available for LV848041?
- Yes — the LV848041 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for LV848041?
- The minimum order quantity is 1.
- Is LV848041 available?
- Yes — LV848041 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
