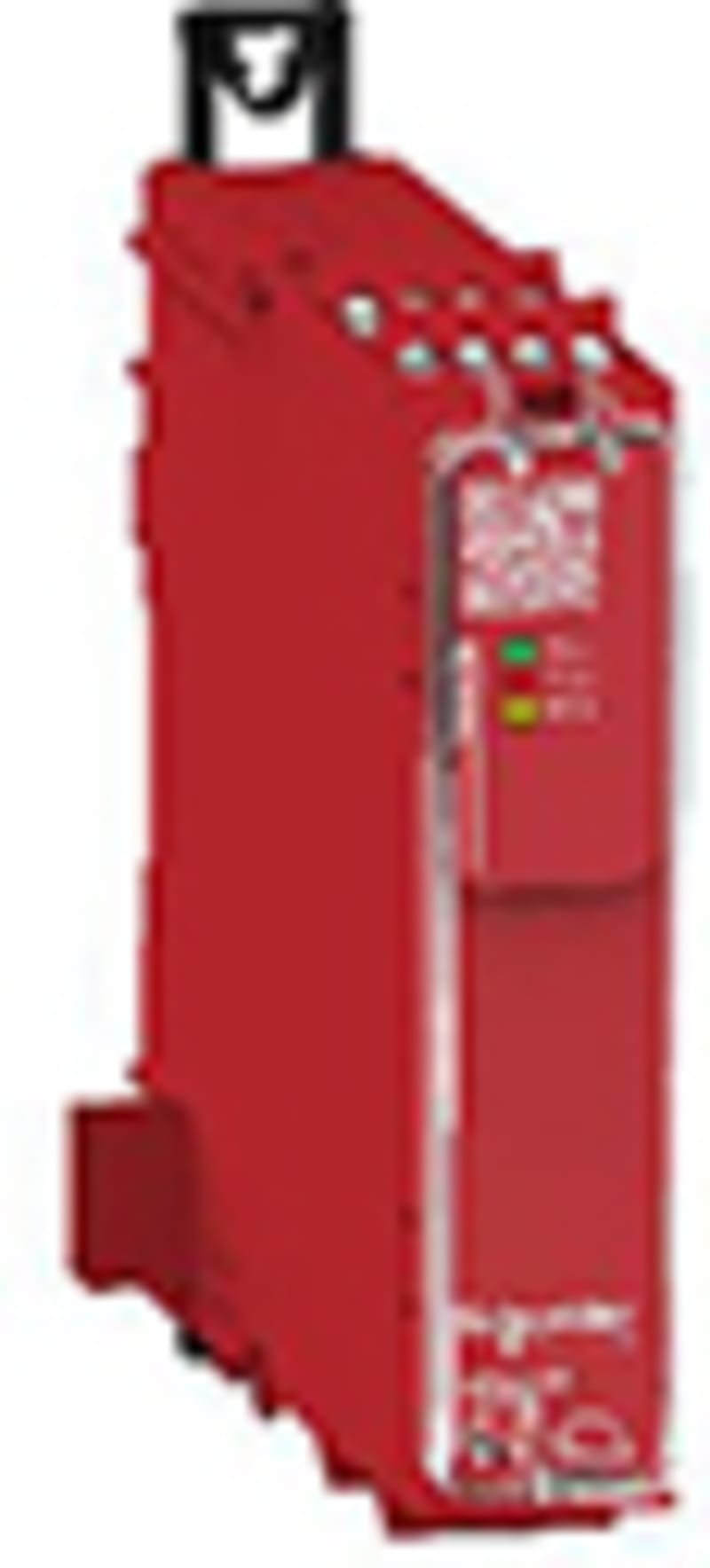

Schneider Electric XPSUEP34AP Preventa CAT.4 expansion module 48-240 V AC/DC screw

Schneider Electric XPSUEP34AP expansion module for category 4 with 4xNO plus 2xNC outputs using screw connections and 48-240 V AC/DC supply. Extends the number of safety outputs on Preventa XPSU base modules. Reaches PL e and SIL 3 for normally-open relay contacts per ISO 13849-1 and IEC 61508.

Manufacturer part number (MPN)

XPSUEP34AP EAN / GTIN: 3606489601799 Sales unit: pcs Package quantity: 16 pcs Voltage: 48-240 V Range of product: Harmony Safety Automation Product or component type: Safety module Safety module name: XPSUEP Safety module application: For extending number of safety contacts Function of module: Safety output extension Safety level: Can reach PL e/category 4 for normally open relay contact conforming to ISO 13849-1; Can reach SILCL 3 for normally open relay contact conforming to IEC 62061; Can reach SIL 3 for normally open relay contact conforming to IEC 61508; Can reach PL c/category 1 for normally closed relay contact conforming to ISO 13849-1; Can reach SILCL 1 for normally closed relay contact conforming to IEC 62061; Can reach SIL 1 for normally closed relay contact conforming to IEC 61508 Safety reliability data: MTTFd > 30 years conforming to ISO 13849-1; Dcavg >= 99 % conforming to ISO 13849-1; PFHd = 1.61E-09 conforming to ISO 13849-1; HFT = 1 conforming to IEC 62061; PFHd = 1.61E-09 conforming to IEC 62061; SFF > 99% conforming to IEC 62061; HFT = 1 conforming to IEC 61508-1; PFHd = 1.61E-09 conforming to IEC 61508-1; SFF > 99% conforming to IEC 61508-1; Type = B conforming to IEC 61508-1 Electrical circuit type: Addition to Preventa XPSU base module Connections - terminals: Removable screw terminal block, 0.2...2.5 mm² solid or flexible; Removable screw terminal block, 0.25...2.5 mm² flexible with ferrule single conductor; Removable screw terminal block, 0.2...1.5 mm² solid or flexible twin conductor; Removable screw terminal block, 2 x 0.25...1 mm² flexible with ferrule without cable end, with bezel; Removable screw terminal block, 2 x 0.5...1.5 mm² flexible with ferrule with cable end, with bezel [Us] rated supply voltage: 48...240 V AC/DC - 10...10 % Power consumption in W: 2 W 48 V DC Power consumption in VA: 6.5 VA 240 V AC 50/60 Hz Input protection type: Internal, electronic safety outputs: 4 NO redundant; 2 NC single safety inputs: 0 extension bus 24 V DC 5 mA Maximum line resistance: 60 Ohm Input compatibility: Normally closed circuit conforming to ISO 14119; XC limit switch conforming to ISO 14119; Mechanical contact conforming to ISO 14119; Normally closed circuit conforming to ISO 13850; Antivalent pair conforming to ISO 14119; OSSD pair conforming to IEC 61496-1-2; 3-wire proximity sensors PNP [Ie] rated operational current: 5 A AC-1 for normally open relay contact; 3 A AC-15 for normally open relay contact; 5 A DC-1 for normally open relay contact; 3 A DC-13 for normally open relay contact [Ith] conventional free air thermal current: 8 A Associated fuse rating: 10 A gG for NO relay output circuit conforming to IEC 60947-1; 4 A gG for NC relay output circuit conforming to IEC 60947-1 minimum output current: 10 mA for relay output minimum output voltage: 12 V for relay output Maximum response time on input open: 20 ms [Ui] rated insulation voltage: 250 V (pollution degree 2) conforming to IEC 60947-1 [Uimp] rated impulse withstand voltage: 4 kV overvoltage category II conforming to IEC 60947-1 Local signalling: LED (green) for power ON; LED (red) for error; LED (yellow) for safety output status Mounting support: 35 mm symmetrical DIN rail Depth: 120 mm Height: 100 mm Width: 22.5 mm Product weight: 0.200 kg Standards: IEC 60947-5-1; IEC 61508-1 functional safety standard; IEC 61508-2 functional safety standard; IEC 61508-3 functional safety standard; IEC 61508-4 functional safety standard; IEC 61508-5 functional safety standard; IEC 61508-6 functional safety standard; IEC 61508-7 functional safety standard; ISO 13849-1 functional safety standard; IEC 62061 functional safety standard Product certifications: TÜV; cULus IP degree of protection: IP20 (terminals) conforming to IEC 60529; IP40 (housing) conforming to IEC 60529; IP54 (mounting area) conforming to IEC 60529 Ambient air temperature for storage: -25…85 °C Relative humidity: 5…95 % non-condensing Number of Units in Package 1: 1 Number of Units in Package 2: 16 Country of origin: ID Warranty (in months): 18 Operating voltage DC: 24 V Power consumption: 1.1 W Supply voltage DC: 24 V Rated switch current: 1.1 A Control voltage 1: 24 V Control voltage 2: 24 V Voltage type (operating voltage): DC Type of control voltage 1: DC Type of control voltage 2: DC Model: Expansion device Suitable for monitoring of position switches: No Suitable for monitoring of emergency-stop circuits: No Suitable for monitoring of valves: No Suitable for monitoring of tactile sensors: No Suitable for monitoring of magnetic switches: No Suitable for monitoring of proximity switches: No Type of electric connection: Screw connection Suitable for rail mounting: Yes Voltage type for actuating: AC/DC With detachable clamps: Yes With start input: No With muting function: No With feedback circuit: No Number of outputs, safety related, undelayed, with contact: 6 Type of safety according to IEC 61496-1: 4 Stop category according to IEC 60204: 0 Performance level according to EN ISO 13849-1: Level e SIL according to IEC 61508: 3 With approval for BG BIA: No With approval according to UL: Yes

HS Code

8536.49

• EAN 3606489601799
• SAP 1200332003
• Code 82317623
