Schneider Electric switch disconnector Masterpact MTZ2 25 HF, 2500 A, 3 poles, drawout LV848305
Pricing
Request a quote
We reply within 24 hours
Product Description

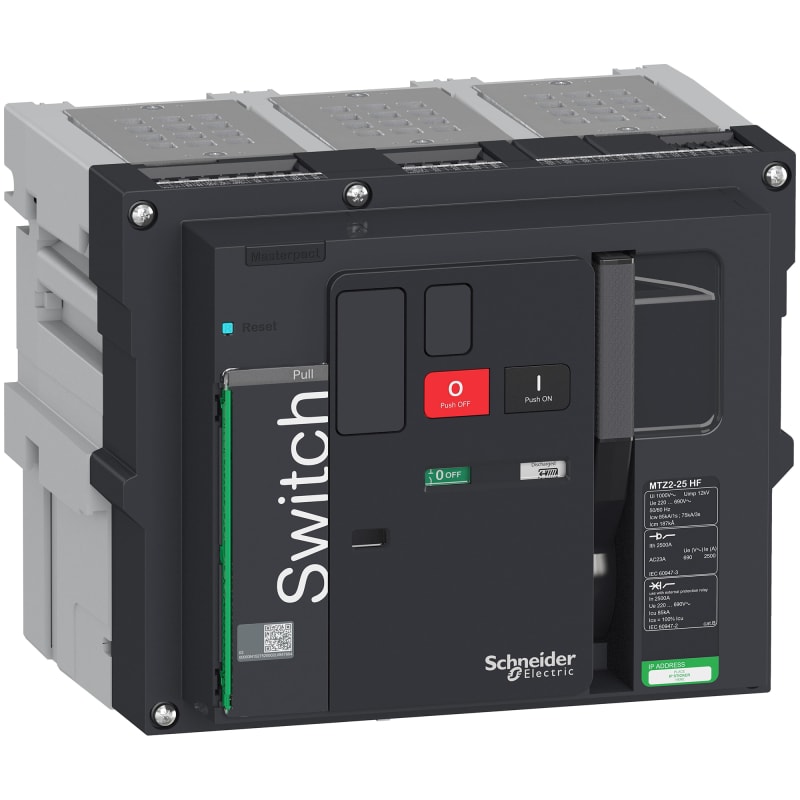

Schneider Electric LV848305 Load-break switch Masterpact MTZ2 25HF 2500A 3p withdrawable without pocket and connections.
Technical Specifications
- Manufacturer part number (MPN)
- LV848305
- EAN / GTIN
- 3606480819308
- HS code
- 8536.90
- Sales unit
- pcs
- Number of poles
- 3P
- Range
- MasterPact
- Product or component type
- Switch disconnector
- Device application
- Distribution
- Switch-disconnector name
- MasterPact MTZ2 25 HF
- Poles description
- 3P
- Network type
- AC
- Network frequency
- 50/60 Hz
- Control type
- Push-button
- mounting mode
- Drawout
- Mounting support
- Chassis
- [Ue] rated operational voltage
- 690 V AC 50/60 Hz conforming to EN/IEC 60947-3
- [Ie] rated operational current
- 2500 A AC 50/60 Hz 690 V
- [Ui] rated insulation voltage
- 1000 V AC 50/60 Hz conforming to EN/IEC 60947-3
- [Uimp] rated impulse withstand voltage
- 12 kV conforming to EN/IEC 60947-3
- [Icw] rated short-time withstand current
- 85 kA during 1 s conforming to EN/IEC 60947-3; 75 kA during 3 s conforming to EN/IEC 60947-3
- [Icm] rated short-circuit making capacity
- 187 kA peak 220...690 V AC at 50/60 Hz
- Utilisation category
- AC-23A; AC-3
- performance level
- HF
- Suitability for isolation
- Yes conforming to EN/IEC 60947-3
- Contact position indicator
- Yes
- Visible break
- No
- Mechanical durability
- 20000 cycles with periodic preventive maintenance conforming to EN/IEC 60947-3
- Electrical durability
- AC-23A: 5000 cycles 440 V AC 50/60 Hz conforming to EN/IEC 60947-3; AC-23A: 2500 cycles 690 V AC 50/60 Hz conforming to EN/IEC 60947-3
- Connection pitch
- 115 mm
- Height
- 439 mm
- Width
- 441 mm
- Depth
- 403 mm
- Product weight
- 90 kg
- Standards
- EN/IEC 60947-3
- Product certifications
- IECEE CB Scheme
- IP degree of protection
- IP30
- Pollution degree
- 3 conforming to EN/IEC 60947-4-1
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -40…85 °C
- Number of Units in Package 1
- 1
- Country of origin
- FR
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480819308
- SAP 1200498200
- Code 82621862
