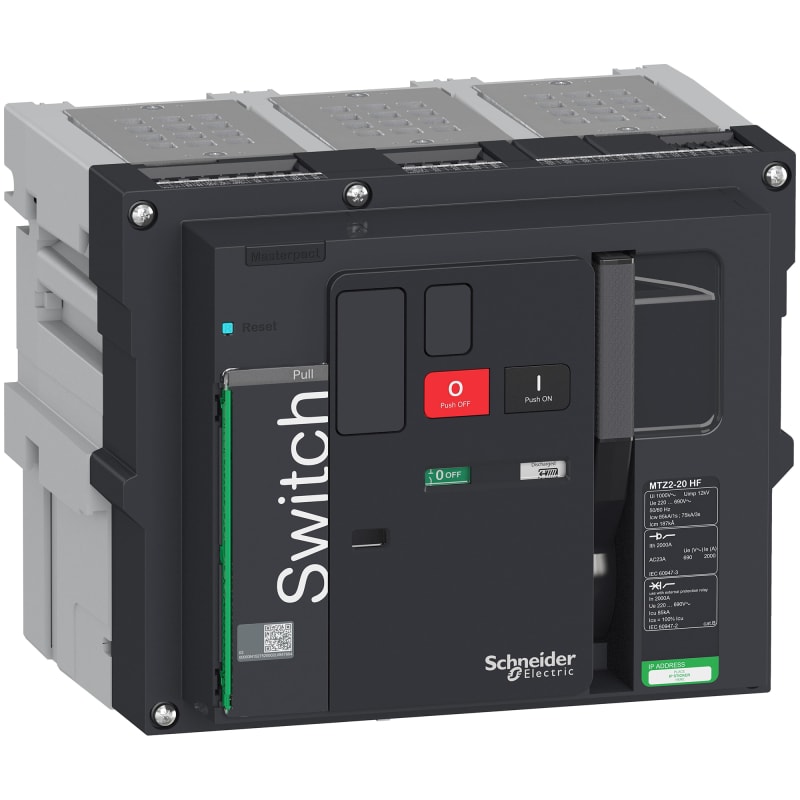

Schneider Electric switch disconnector Masterpact MTZ2 20 HF, 2000 A, 3 poles, drawout LV848292
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LV848292 Load-break switch Masterpact MTZ2 20HF 2000A 3p withdrawable without pocket and connections.
Technical Specifications
- Manufacturer part number (MPN)
- LV848292
- EAN / GTIN
- 3606480819285
- HS code
- 8536.90
- Sales unit
- pcs
- Number of poles
- 3P
- Range
- MasterPact
- Product or component type
- Switch disconnector
- Device application
- Distribution
- Switch-disconnector name
- MasterPact MTZ2 20 HF
- Poles description
- 3P
- Network type
- AC
- Network frequency
- 50/60 Hz
- Control type
- Push-button
- mounting mode
- Drawout
- Mounting support
- Chassis
- [Ue] rated operational voltage
- 690 V AC 50/60 Hz conforming to EN/IEC 60947-3
- [Ie] rated operational current
- 2000 A AC 50/60 Hz 690 V
- [Ui] rated insulation voltage
- 1000 V AC 50/60 Hz conforming to EN/IEC 60947-3
- [Uimp] rated impulse withstand voltage
- 12 kV conforming to EN/IEC 60947-3
- [Icw] rated short-time withstand current
- 85 kA during 1 s conforming to EN/IEC 60947-3; 75 kA during 3 s conforming to EN/IEC 60947-3
- [Icm] rated short-circuit making capacity
- 187 kA peak 220...690 V AC at 50/60 Hz
- Utilisation category
- AC-23A; AC-3
- performance level
- HF
- Suitability for isolation
- Yes conforming to EN/IEC 60947-3
- Contact position indicator
- Yes
- Visible break
- No
- Mechanical durability
- 20000 cycles with periodic preventive maintenance conforming to EN/IEC 60947-3
- Electrical durability
- AC-23A: 8000 cycles 440 V AC 50/60 Hz conforming to EN/IEC 60947-3; AC-23A: 6000 cycles 690 V AC 50/60 Hz conforming to EN/IEC 60947-3; AC-3: 6000 cycles 440 V AC 50/60 Hz conforming to EN/IEC 60947-3; AC-3: 6000 cycles 690 V AC 50/60 Hz conforming to EN/IEC 60947-3
- Connection pitch
- 115 mm
- Height
- 439 mm
- Width
- 441 mm
- Depth
- 403 mm
- Product weight
- 90 kg
- Standards
- EN/IEC 60947-3
- Product certifications
- IECEE CB Scheme
- IP degree of protection
- IP30
- Pollution degree
- 3 conforming to EN/IEC 60947-4-1
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -40…85 °C
- Country of origin
- FR
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480819285
- SAP 1200498194
- Code 82621792
Product Documentation
More from Schneider Electric
Schneider Electric

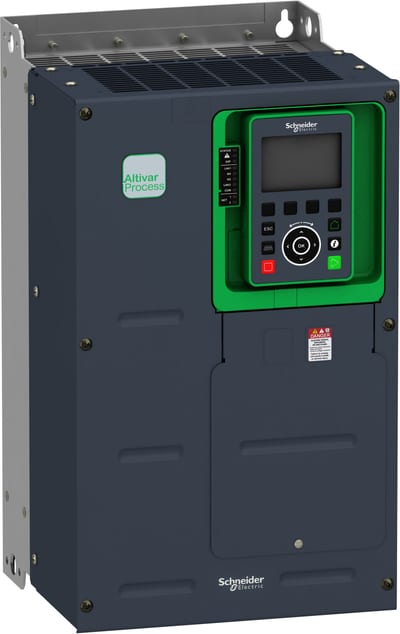

Schneider Electric variable speed drive, Altivar Process ATV900, ATV930, 2.2kW, 3hp, 500 to 690V, IP00 ATV930U22Y6
Schneider Electric

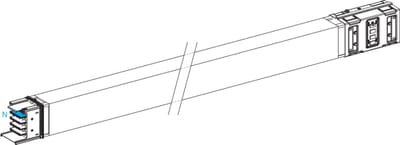

Rail 1000A 5m without outlet
KSA1000ET450
Schneider Electric

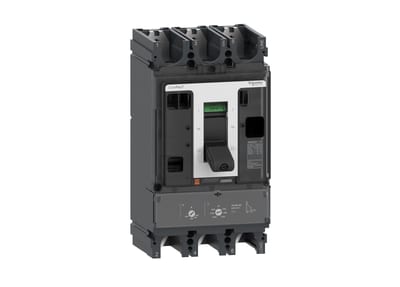

Schneider Electric Circuit breaker, ComPacT NSX630F DC, 36KA/750VDC, 3 poles, TM-DC trip unit 500A C63F3TM500D
Schneider Electric

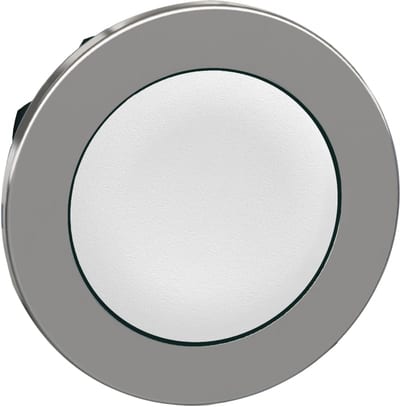

Schneider Electric Flush mounted push button head, Harmony XB4, metal, white, 30mm, spring return, unmarked ZB4FA1
Schneider Electric

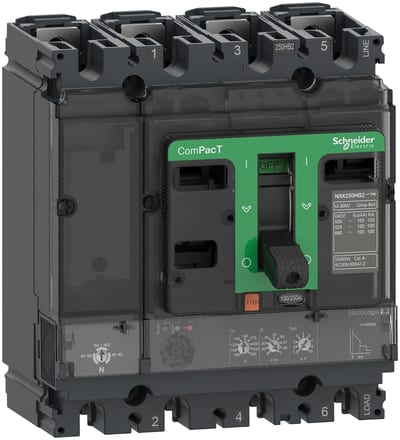

Schneider Electric Circuit breaker, ComPacT NSX250HB1, 75KA/690VAC, 4 poles, MicroLogic 2.2 trip unit 100A C25V42D100
Schneider Electric

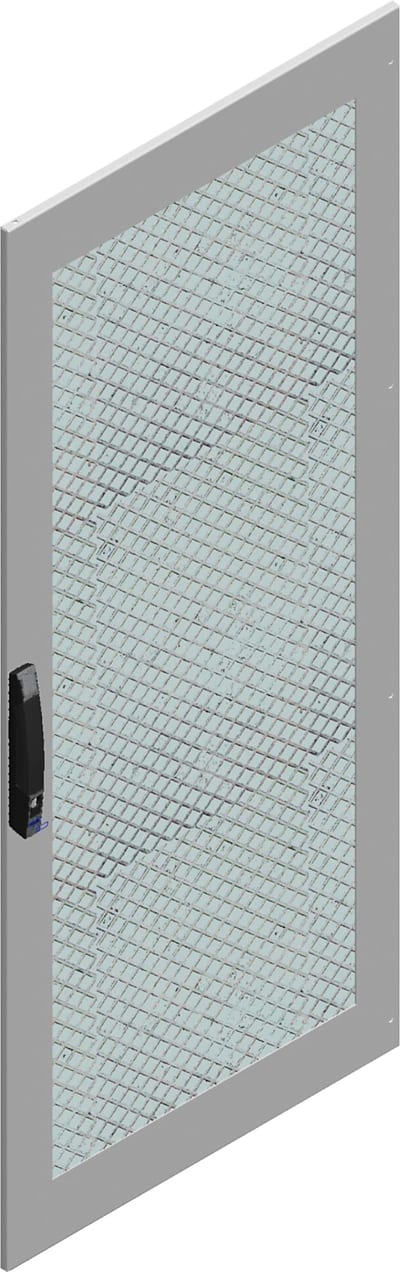

Schneider Electric PanelSeT SF/SM single ventilated door - 2000X600 mm NSYPCVD206
Schneider Electric
Schneider Electric Voltage power supply module (VPS) - SP LV850060SP
Schneider Electric

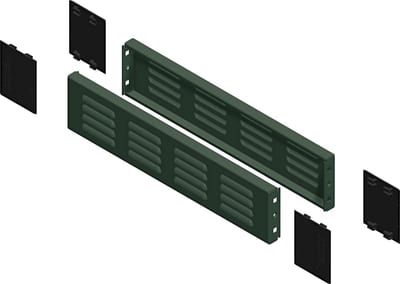

2 Pl Vent Plinth sides 100X800
