Rail 1000A 5m without outlet
Pricing
Request a quote
We reply within 24 hours
Product Description

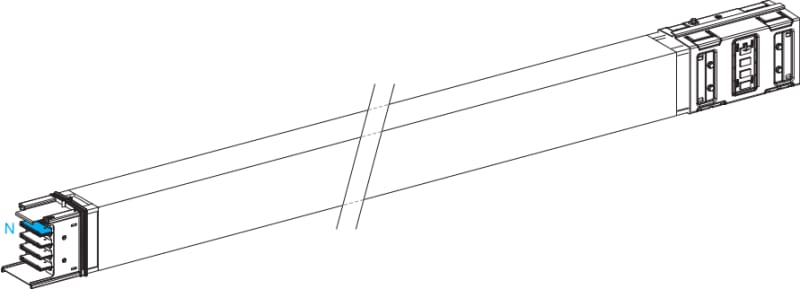

Schneider Electric KSA1000ET450 rail 1000A 5m without outlet.
Technical Specifications
- Manufacturer part number (MPN)
- KSA1000ET450
- EAN / GTIN
- 3606480003844
- Sales unit
- pcs
- Rated current
- 1000 A
- Range
- Canalis
- Device short name
- KSA
- Offer type
- Advanced
- Product or component type
- Busbar trunking
- Busbar description
- Horizontal transport length
- Product compatibility
- Canalis KSA busbar trunking 500…1000 A
- Conductors material
- Aluminium
- Busbar trunking polarity
- 3L + N + PE
- Number of tap-off outlets
- 0
- [Ie] rated operational current
- 1000 A at 35 °C
- IP degree of protection
- IP55 conforming to IEC 60529
- mounting mode
- By screws
- Dimension type
- Fix
- Length
- 5 m
- Colour
- White (RAL 9001)
- Number of poles
- 4
- Neutral position
- Up
- Mounting position
- Horizontal
- [Ue] rated operational voltage
- 230...690 V
- Network frequency
- 50/60 Hz
- [Uimp] rated impulse withstand voltage
- 8 kV
- [Ui] rated insulation voltage
- 690 V
- [Icw] rated short-time withstand current
- 37.4 kA
- [Ipk] rated peak withstand current
- 78.7 kA
- Electrical connection
- Lubricated sliding contact
- Width
- 113 mm
- Height
- 146 mm
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480003844
- SAP 1200721737
- Code 83832412
