Sinusfilter 45A 690V 30-37kW IP20
Pricing
Request a quote
We reply within 24 hours
Product Description

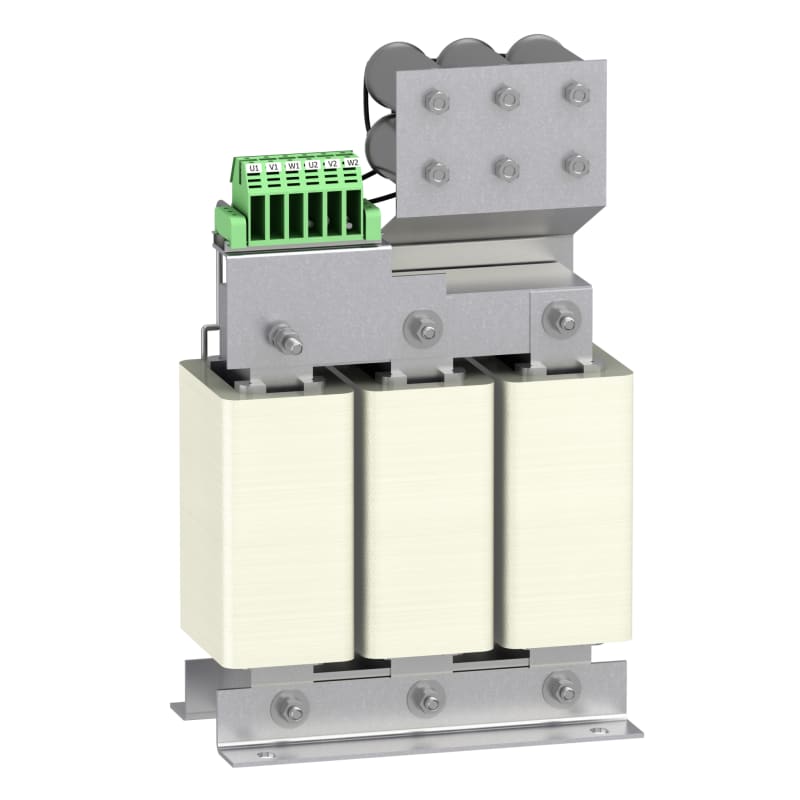

Schneider Electric VW3A5217 Sinusfilter 45A 690V 30-37kW IP20.
Technical Specifications
- Manufacturer part number (MPN)
- VW3A5217
- EAN / GTIN
- 3606480659829
- Sales unit
- pcs
- Voltage
- 690 V
- IP rating
- IP20
- Product or component type
- Sinus filter
- Range compatibility
- Altivar Process ATV900; Altivar Process ATV600
- Product specific application
- Output filter
- [In] rated current
- 45 A
- Thermal losses
- 360 W, 115 °C
- Product compatibility
- ATV630 variable speed drive wall mount - 30 kW, 500...690 V three phase; ATV630 variable speed drive wall mount - 37 kW, 500...690 V three phase; ATV930 variable speed drive wall mount - 30 kW, 500...690 V three phase; ATV930 variable speed drive wall mount - 37 kW, 500...690 V three phase; ATV630 variable speed drive wall mount, 40 hp, 600 V three phase; ATV630 variable speed drive wall mount, 50 hp, 600 V three phase; ATV930 variable speed drive wall mount, 40 hp, 600 V three phase; ATV930 variable speed drive wall mount, 50 hp, 600 V three phase
- Switching frequency
- 2 kHz
- Maximum output frequency
- 70 Hz
- maximum permissible voltage
- 690 V AC
- Electrical connection
- Terminal
- Max current
- 1.5 x nominal current (duration = 60 s)
- Product weight
- 38 kg
- IP degree of protection
- IP00
- Pollution degree
- 2 conforming to EN 50178
- Vibration resistance
- 1 gn (f= 13…200 Hz) conforming to IEC 60068-2; 1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2
- Shock resistance
- 15 gn for 11 ms conforming to IEC 60068-2-27
- Relative humidity
- 0…95 %
- Ambient air temperature for operation
- -10…45 °C
- Ambient air temperature for storage
- -40…65 °C
- Operating altitude
- <= 1000 m without current derating; 1000...3000 m with current derating 1 % per 100 m
- Standards
- UL 508
- Country of origin
- CN
- Warranty (in months)
- 18
- Suitable as sinus filter
- Yes
- Suitable as du/dt-filter
- No
- Suitable as radio interference suppression filter
- No
- Suitable as audio frequency blockage
- No
- Number of poles, primary side
- 3
- Rated clock frequency
- 2 kHz
- Rated operating frequency
- 70 Hz
- Max. rated operation voltage Ue
- 690 V
- Rated current AC
- 45 A
- Degree of protection (IP)
- IP00
Standards & Compliance
- HS Code
- 8548.90
Cross References
- EAN 3606480659829
- SAP 1200722458
- Code 83837208
Product Documentation
