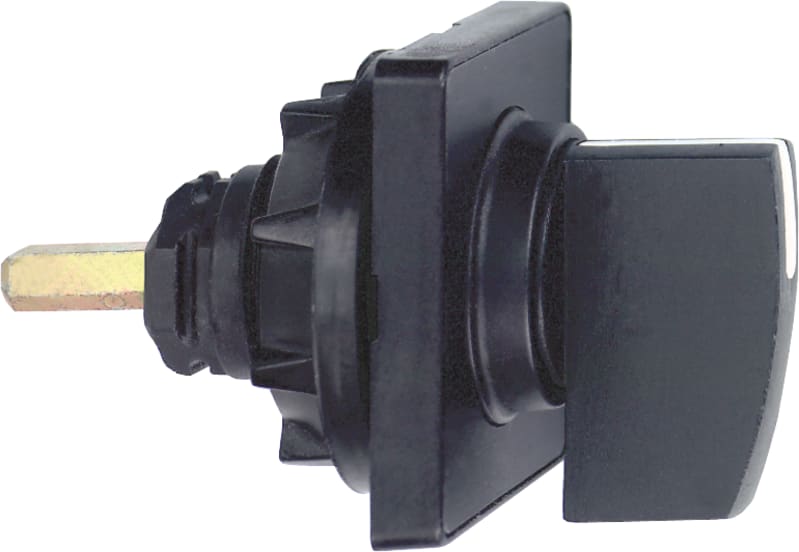

BETJ.DEL FOR Cam switch (KBC1S)

Schneider Electric KBC1S Betj.Del For Cam Switch.

Manufacturer part number (MPN)

KBC1S

EAN / GTIN

3389110483246

Sales unit

pcs

Package quantity

15 pcs

Range of product

Harmony Series K

Product or component type

Cam switch operating head

Component name

KBC

Product compatibility

Front mounting bodies 12 and 20 A by Ø 22 mm hole

Cam switch head type

With front plate 45 x 45 mm

Type of operator

key 601A

Rotary handle padlocking

Without

Presentation of legend

With metallic legend

Switching angle

45 °; 90 °

Mechanical durability

1000000 cycles

CAD overall width

45 mm

CAD overall height

45 mm

CAD overall depth

69 mm

Product weight

0.063 kg

Compatibility code

KBC

Protective treatment

TC

Ambient air temperature for operation

-25…55 °C

Ambient air temperature for storage

-40…70 °C

Shock resistance

30 gn conforming to IEC 68-2-27

Vibration resistance

5 gn conforming to IEC 68-2-6 (f = 10…150 Hz)

IP degree of protection

IP65 conforming to IEC 529; IP65 conforming to NF C 20-010

Number of Units in Package 1

1

Number of Units in Package 2

60

Country of origin

CZ

Warranty (in months)

18

Hole diameter

22.5 mm

Suitable for lighting

No

Spring-return

No

Colour front ring

Black

Degree of protection (IP), front side

IP65

Material front ring

Plastic

With front ring

Yes

Construction type lens

Square

Type of control element

Key

Colour control element

Black

Switching function latching

No

HS Code

8538.90

• EAN 3389110483246
• SAP 1000072179
• Code 8768867
