Frontframe IP30 PrismaSeT P B400
Pricing
Request a quote
We reply within 24 hours
Product Description

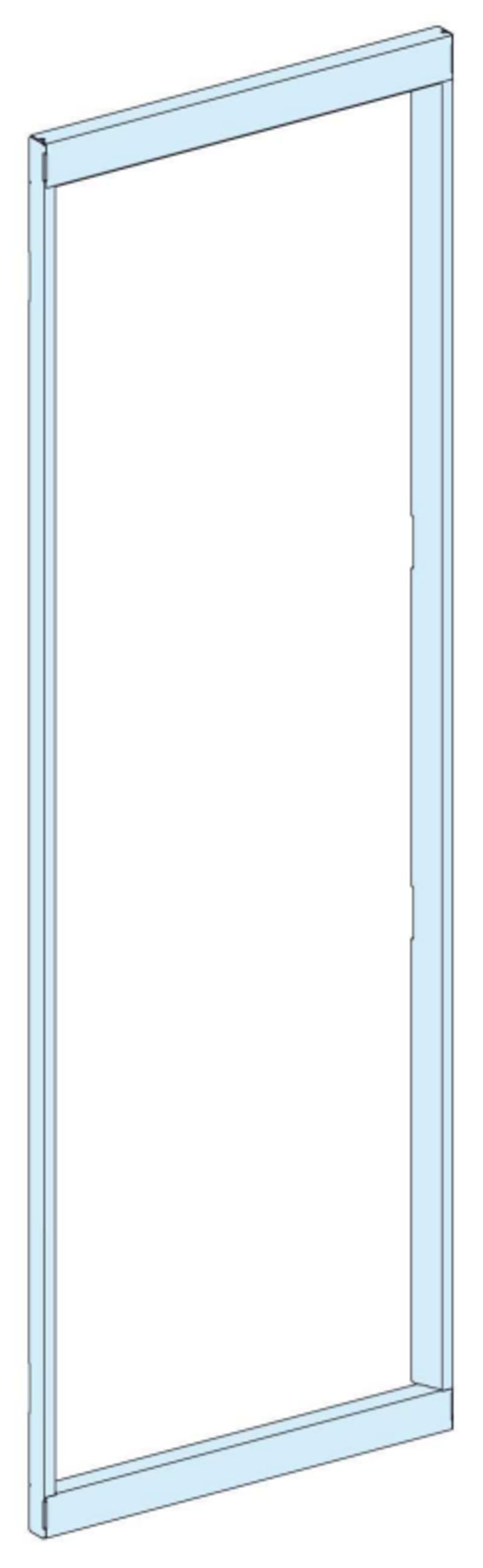

Schneider Electric LVS08574 Front Frame IP30 PrismaSeT P-width 400mm.
Technical Specifications
- Manufacturer part number (MPN)
- LVS08574
- EAN / GTIN
- 3606481878854
- Sales unit
- pcs
- IP rating
- IP30
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Cover frame
- Range compatibility
- PrismaSeT PrismaSeT P cubicle duct
- Provided equipment
- cover frame
- Enclosure mounting
- Floor-standing
- type of door
- Cover frame
- IP degree of protection
- IP30
- installation description
- Cubicle duct - width 400 mm
- door opening angle
- 120 °
- Number of vertical modules [50 mm]
- 36
- Quantity per set
- Set of 1
- Height
- 1926.2 mm
- Width
- 400 mm
- Product weight
- 6.64 kg
- Material
- Treated sheet steel
- Surface finish
- Textured; Matt
- Colour
- White (RAL 9003)
- IK degree of protection
- IK07 conforming to EN/IEC 62262
- Standards
- IEC 61439-2; IEC 61439-1
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 18
- Warranty (in months)
- 18
- RAL-number
- 9003
- Country of origin
- France
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481878854
- SAP 1200547299
- Code 82880323
Product Documentation
