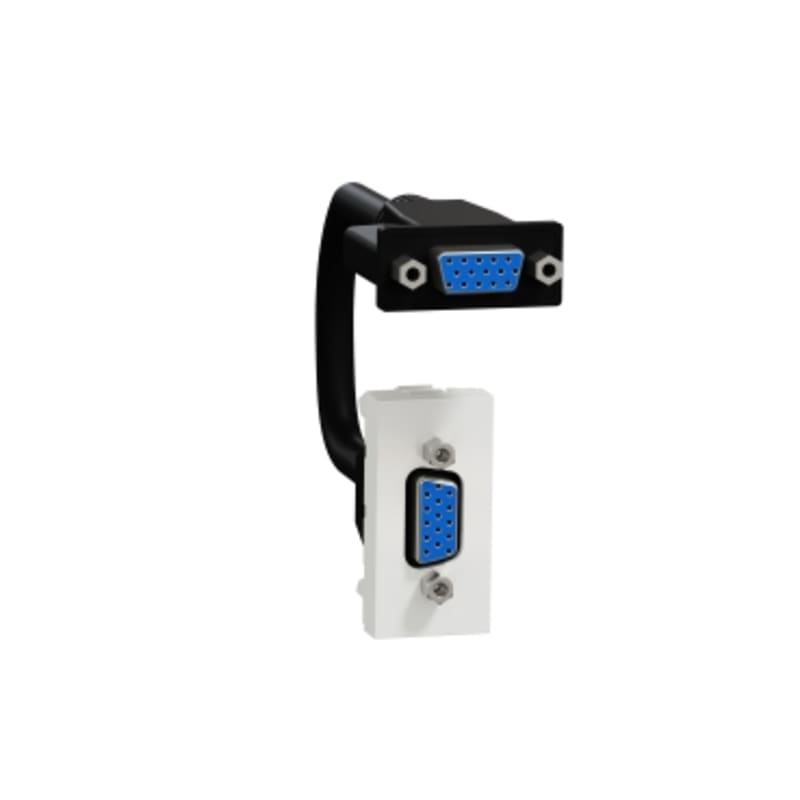

Schneider Electric Video socket, New Unica, VGA connector, 1 module, white NU343218
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NU343218 VGA - White - 1 module.
Technical Specifications
- Manufacturer part number (MPN)
- NU343218
- EAN / GTIN
- 3606489455989
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range
- New Unica
- Product or component type
- Video socket
- Connector type
- VGA
- Electrical circuit type
- Video
- Device presentation
- Mechanism
- Colour tint
- White (RAL 9003)
- Type of packing
- Flow-pack
- Main colour tint
- White
- Socket number
- 1
- fixing mode
- Clip-in
- Number of modules
- 1 module
- Surface finish
- Glossy
- Quantity per set
- Set of 10
- Material
- Thermoplastic ABS-UV stabilised: centre plate
- Height
- 45 mm
- Width
- 22.5 mm
- Depth
- 220 mm
- Product weight
- 0.054 kg
- resistance to chemical agents
- Resistant to alcohol (70 %); Resistant to alcohol (96 %); Resistant to A-Lactic Acid; Resistant to diluted quaternary ammonium; Resistant to diluted bleach; Resistant to diluted ammonia; Resistant to soapy water; Resistant to crystal cleaner; Resistant to hydrogen peroxide 10 volumes; Resistant to hexane
- Ambient air temperature for storage
- -5…50 °C
- Ambient air temperature for operation
- 5…45 °C
- IP degree of protection
- IP2XC
- IK degree of protection
- IK02
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Warranty (in months)
- 18
- Mounting method
- Flush-mounted
- Assembly arrangement
- Modular device for domestic switching devices
- Colour
- White
- Halogen free
- Yes
- With hinged lid
- No
- Utilization
- D-Sub 15-pole
- Surface protection
- Untreated
- Outlet direction
- Straight
- With strain relief
- Yes
- Material quality
- Thermoplastic
- Imprintable label
- Without indication field
- Suitable for number of connectors
- 1
- Contact type
- Female
- Type of fastening
- Engage (snap)
- Shielded buses
- No
- Shielded housing
- No
- With lighting
- No
- Luster terminal
- Yes
- RAL-number (similar)
- 9003
- With dust cover
- No
- With imprint
- No
- With buses/couplings
- No
- Support ring
- No
- Transparent
- No
- Surface finishing
- Glossy
- Suitable for degree of protection (IP)
- IP2X
- Device width
- 22.5 mm
- Device height
- 45 mm
- Device depth
- 220 mm
- Min. depth of built-in installation box
- 50 mm
- Isolated connections
- No
- Anti-bacterial treatment
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 3606489455989
- SAP 1200230144
- Code 82177048
Product Documentation
More from Schneider Electric
Schneider Electric
Frontframe IP30 PrismaSeT P B400
LVS08574
Schneider Electric
Illuminated push-button, flush, orange, raised (ZB5FW153)
Schneider Electric
Schneider Electric standard motor mechanism module MT400/630, ComPact NSX400/630, 440/480 VAC 60 Hz LV432647
Schneider Electric
MEK. Interlock (LA9FF970)
Schneider Electric
Schneider Electric Universal cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H65 W500MM, 2 rows, set of 2 NSYSUCR6550
Schneider Electric
Push-Button Head GREEN,MERK.II
ZB5AA336
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX250B, 25KA/415VAC, 4 poles 4D (neutral fully protected), TMD trip unit 160A C25B4TM160
Schneider Electric
Schneider Electric Advanced control unit, TeSys U, 8-32A, 1P motors, protection & diagnostic, class 10, coil 110-240V AC/DC LUCC32FU
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NU343218?
- NU343218 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is NU343218.
- What is the HS code for NU343218?
- The customs tariff (HS) code for NU343218 is 8544.42.
- Who manufactures NU343218?
- NU343218 is a Schneider Electric product in the Cables & Wiring range.
- Is a datasheet available for NU343218?
- Yes — the NU343218 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NU343218?
- The minimum order quantity is 1.
- Is NU343218 available?
- Yes — NU343218 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
