NW 25 H1 4P Fast (48076)

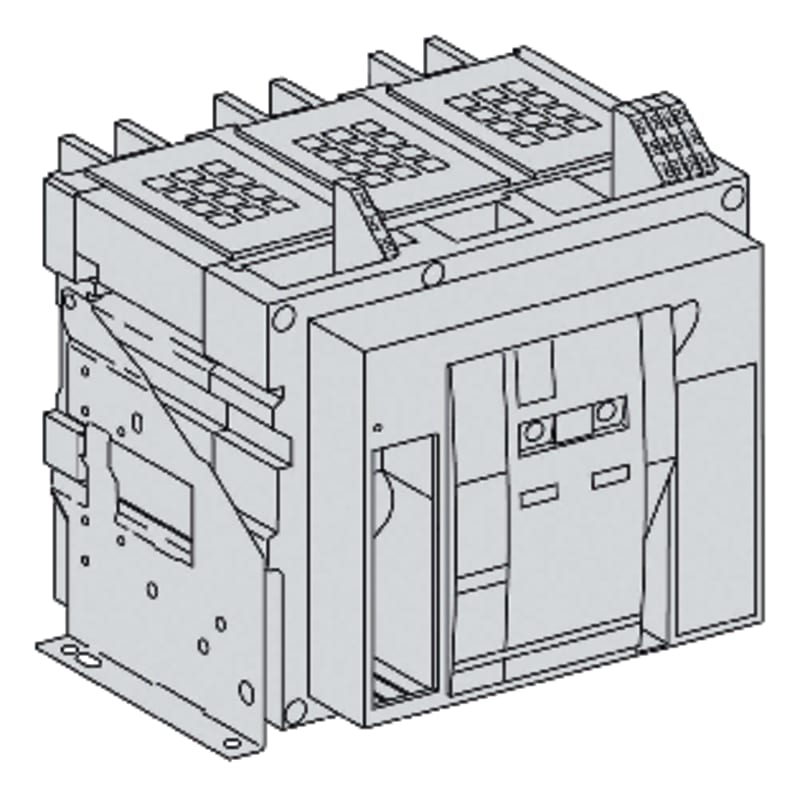

Schneider Electric 48076 NW 25 H1 4P Fast.

Manufacturer part number (MPN)

48076

EAN / GTIN

3303430480761

Sales unit

pcs

Number of poles

4P

Range

MasterPacT

Product name

MasterPact NW

Circuit breaker name

MasterPact NW25H1

Product or component type

Circuit breaker

Device application

Power distribution protection

Poles description

4P

Neutral position

Left

Control unit

Without control unit

[In] rated current

2500 A at 40 °C

Performance type

H1 65 kA 440 V AC

[Ue] rated operational voltage

690 V AC 50/60 Hz

Suitability for isolation

Yes conforming to EN/IEC 60947-2

Selectivity category

Category B

Control type

Push-button

mounting mode

Fixed

[Icu] rated ultimate short-circuit breaking capacity

65 kA at 220/415 V AC 50/60 Hz; 65 kA at 440 V AC 50/60 Hz; 65 kA at 525 V AC 50/60 Hz; 65 kA at 690 V AC 50/60 Hz

[Ics] rated service breaking capacity

65 kA at 220/415 V AC 50/60 Hz; 65 kA at 440 V AC 50/60 Hz; 65 kA at 525 V AC 50/60 Hz; 65 kA at 690 V AC 50/60 Hz

[Icw] rated short-time withstand current

65 kA 1 s; 65 kA 3 s

[Icm] rated short-circuit making capacity

143 kA 220/415 V AC at 50/60 Hz; 143 kA 440 V AC at 50/60 Hz; 143 kA 525 V AC at 50/60 Hz; 143 kA 690 V AC at 50/60 Hz

Sensor rating

1250 A; 2500 A

[Ui] rated insulation voltage

1000 V AC 50/60 Hz

[Uimp] rated impulse withstand voltage

12 kV

Power dissipation in W

260 W

Maximum breaking time

25 ms

Maximum closing response time

70 ms

Mounting support

Backplate; Rails

Upside connection

Front; Rear

Downside connection

Front; Rear

Connection pitch

115 mm

Mechanical durability

10000 cycles without maintenance; 20000 cycles with maintenance

Electrical durability

5000 cycles 440 V AC 50/60 Hz without maintenance conforming to EN/IEC 60947-2; 2500 cycles 690 V AC 50/60 Hz without maintenance conforming to EN/IEC 60947-2; AC-23A: 5000 cycles 440 V AC 50/60 Hz without maintenance conforming to EN/IEC 60947-3; AC-23A: 2500 cycles 690 V AC 50/60 Hz without maintenance conforming to EN/IEC 60947-3; AC-3: 6000 cycles 440/690 V AC 50/60 Hz without maintenance conforming to EN/IEC 60947-3

Height

352 mm

Width

537 mm

Depth

297 mm

Product weight

65 kg

Standards

EN/IEC 60947-1; EN/IEC 60947-2

Product certifications

CE; CCC; EAC

IP degree of protection

IP30 conforming to IEC 60529

Pollution degree

4 conforming to IEC 60664-1

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…85 °C

Operating altitude

0...2000 m without derating; 2000 m...5000 m with derating

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

30.500 cm

Package 1 Width

29.500 cm

Package 1 Length

49.500 cm

Package 1 Weight

47.251 kg

Country of origin

FR

Warranty (in months)

18

Rated permanent current Iu

2500 A

With integrated under voltage release

No

Number of auxiliary contacts as change-over contact

5

Rated voltage

690 V

Power loss

260 W

Degree of protection (IP)

IP30

Position of connection for main current circuit

Back side

Motor drive integrated

No

Type of electrical connection of main circuit

Bolt connection

Type of control element

Push button

With switched-off indicator

Yes

Rated short-circuit breaking capacity Icu at 400 V, 50 Hz

65 kA

Suitable for DIN rail (top hat rail) mounting

No

Integrated earth fault protection

No

Motor drive optional

Yes

Device construction

Built-in device fixed built-in technique

DIN rail (top hat rail) mounting optional

No

Complete device with protection unit

No

HS Code

2714.90
