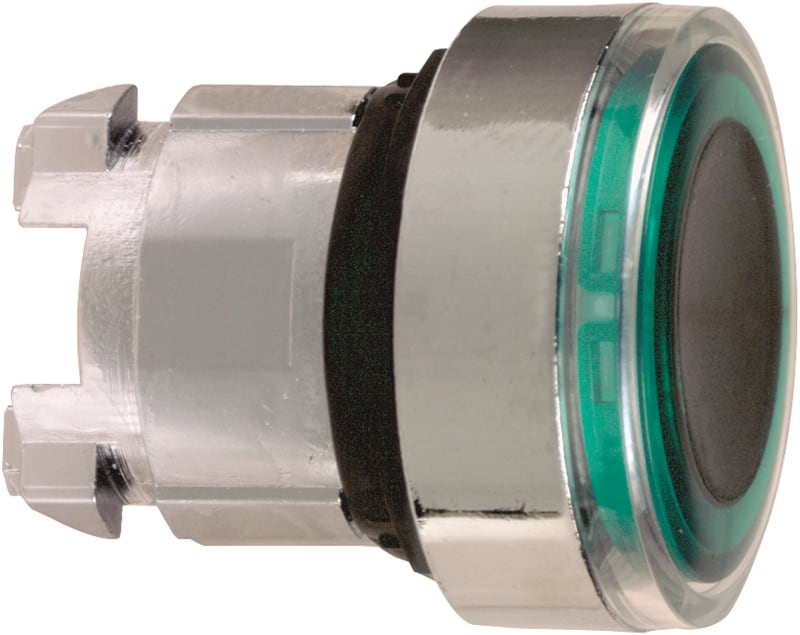

Schneider Electric Harmony XB4 Illuminated Push-Button Head Green Spring-Return Ø22 ZB4BW933

Schneider Electric ZB4BW933 is a Ø22 mm spring-return illuminated push-button head from the Harmony XB4 range, with green flush operator, chromium-plated metal bezel and integrated illuminated ring compatible with universal LED light blocks. The head mounts flush in panels and requires separate contact and light blocks to complete the operator. Protection IP66/IP67/IP69/IP69K, UL Type 4X/13, mechanical life 10⁷ cycles, operating range -40 to 70 °C. Supplied in packs of 5 pieces.

Manufacturer part number (MPN)

ZB4BW933

EAN / GTIN

3389110889901

Sales unit

pcs

Package quantity

5 pcs

Range of product

Harmony XB4

Product or component type

Head for illuminated push-button

Device short name

ZB4

Product compatibility

Universal LED

Bezel material

Chromium plated metal

Head type

Standard

Mounting diameter

22.5 mm

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Type of operator

spring return

Operator profile

Green flush, unmarked

Operator additional information

With illuminated ring

Cap/operator or lens colour

Green

CAD overall width

29 mm

CAD overall height

29 mm

CAD overall depth

30 mm

Product weight

0.026 kg

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Mechanical durability

10000000 cycles

Electrical composition code

M1 for <6 contacts using single blocks in front mounting with integral LED; M2 for <6 contacts using single and double blocks in front mounting with integral LED; M6 for <2 contacts using single blocks in front mounting with integral LED and transformer; M10 for <2 contacts using single blocks in front mounting with integral LED

Device presentation

Basic sub-assemblies

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class I conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP67; IP69; IP69K

Enclosure Type

UL type 4X/13

IK degree of protection

IK06 conforming to IEC 62262

Standards

IEC 60947-5-5; UL 508; IEC 60947-1; JIS C8201-5-1; IEC 60947-5-4; CSA C22.2 No 14; IEC 60947-5-1; JIS C8201-1

Product certifications

BV; CSA; DNV; LROS (Lloyds register of shipping); UL listed

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.4 cm

Package 1 Width

4.5 cm

Package 1 Length

5.4 cm

Package 1 Weight

26 g

Unit Type of Package 2

BB1

Number of Units in Package 2

5

Package 2 Height

4.5 cm

Package 2 Width

3.4 cm

Package 2 Length

26.5 cm

Package 2 Weight

132 g

Unit Type of Package 3

S02

Number of Units in Package 3

100

Package 3 Height

15 cm

Package 3 Width

30 cm

Package 3 Length

40 cm

Package 3 Weight

3.115 kg

Country of origin

FR

Warranty (in months)

18

Hole diameter

22.5 mm

Colour button

Green

Suitable for lighting

Yes

Number of command positions

1

Spring-return

Yes

Labelled

No

Type of button

Flat

Colour front ring

Chrome

Degree of protection (IP), front side

IP66

With protective cover

No

Material front ring

Metal

With front ring

Yes

Construction type lens

Round

Switching function latching

No

HS Code

8538.90

• EAN 3389110889901
• SAP 1000013679
• Code 8109418
