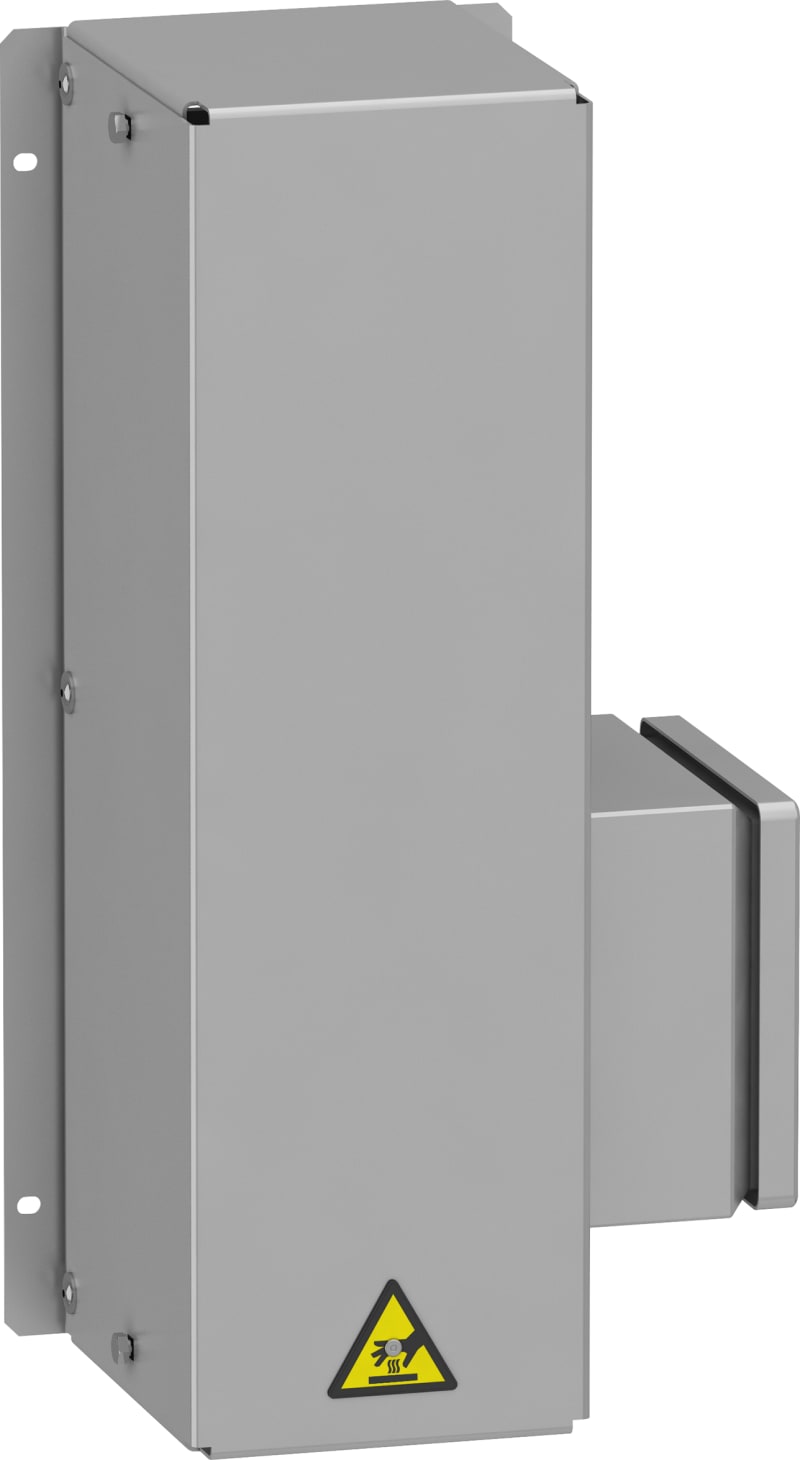

Schneider Electric braking resistor - 8 ohms - 1.1 kW - IP20 VW3A7735

Schneider Electric VW3A7735 Braking resistor 8 ohms 0,96kW IP20.

Manufacturer part number (MPN)

VW3A7735

EAN / GTIN

3606480802294

Sales unit

pcs

Power

0.96 kW

Resistance

8 Ω

Range of product

Altivar

Range compatibility

Altivar Process ATV900; Altivar Machine ATV340; Altivar Machine ATV320

Product or component type

Braking resistor

Ohmic value

8 Ohm

[Ue] rated operational voltage

24 V DC; 250 V AC

Product compatibility

Variable speed drive ATV930 wall mount 55 kW 380...480 V light cycle; Variable speed drive ATV930 wall mount 15 kW 200...240 V light cycle; Variable speed drive ATV950 wall mount 55 kW 380...480 V light cycle; Variable speed drive ATV930 wall mount 15 kW 200...240 V medium cycle; Variable speed drive ATV340 45 kW 380...480 V light cycle; Variable speed drive ATV320 11 kW 200...240 V

Duty cycle

Light cycle (heavy duty) <0.8 s braking with 150 % braking torque for a 40 s cycle ; Light cycle (normal duty) <0.8 s braking with 120 % braking torque for a 40 s cycle ; Medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle ; Medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle

Average power available

1.1 kW at 50 °C

Electrical connection

terminal, connection capacity: <= 35 mm² / 3 AWG for drive; terminal, connection capacity: <= 4 mm² / 10 AWG for temperature control switch

Protection type

Thermal protection via drive or temperature control switch at 120 °C

Width

190 mm

Height

640 mm

Depth

180 mm

Product weight

4.5 kg

IP degree of protection

IP20

Ambient air temperature for storage

-25…70 °C

Ambient air temperature for operation

0…50 °C

Number of Units in Package 1

1

Number of Units in Package 2

6

Country of origin

DE

Warranty (in months)

18

Type of accessory/spare part

Breaking resistance

Accessory

Yes

Spare part

No

HS Code

8533.29

• EAN 3606480802294
• SAP 1200020035
• Code 81392210
