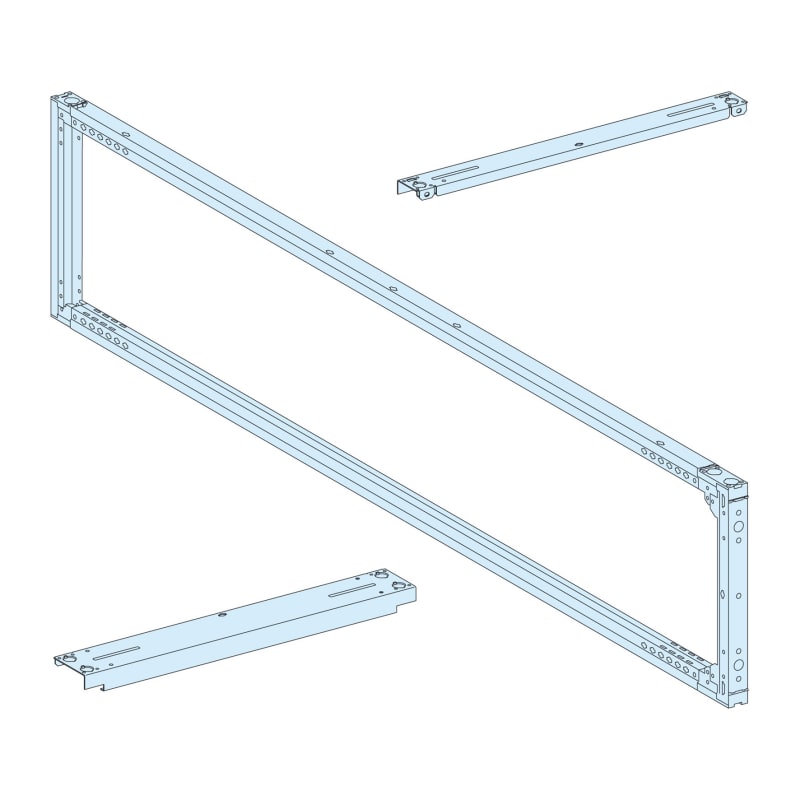

Schneider Electric PrismaSet P Framework, W = 300 mm, D = 400 mm LVS08403
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS08403 Frame PrismaSeT P width 300mm-depth 400mm.
Technical Specifications
- Manufacturer part number (MPN)
- LVS08403
- EAN / GTIN
- 3606481879172
- Sales unit
- pcs
- Width
- 300 mm
- Depth
- 400 mm
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Framework
- Range compatibility
- PrismaSeT PrismaSeT P duct
- Provided equipment
- Four cross-pieces; Mounting hardware; Side-by-side combination kit; Two frames
- Additional information
- Can be combined side by side and back to back
- Enclosure/cubicle description
- Duct - width 300 mm
- Quantity per set
- Set of 1
- Height
- 2000 mm
- Product weight
- 15.68 kg
- Surface finish
- Matt; Textured
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Colour
- White (RAL 9003)
- Standards
- IEC 62208
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 20
- Country of origin
- FR
- Warranty (in months)
- 18
- RAL-number
- 9003
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481879172
- SAP 1200547559
- Code 82880086
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric variable speed drive, Altivar Machine ATV340, 30kW, heavy duty, 400V, 3 phases, Ethernet ATV340D30N4E
Schneider Electric
IP54 kit for PLM plinth
NSYAEPZM
Schneider Electric
Selector Switch Head Long 3POS.RET./H
ZB4BJ8
Schneider Electric
Mod insert 12M for 18X27PLS
NSYDLS12
Schneider Electric

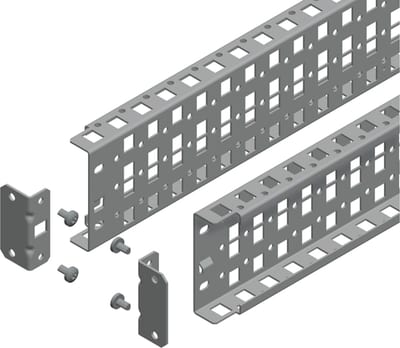

Schneider Electric Universal cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H90 W700MM, 3 rows, set of 2 NSYSUCR9070
Schneider Electric

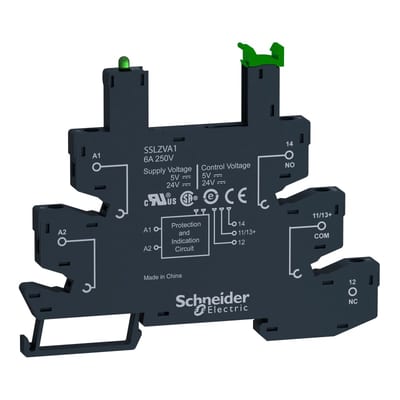

Schneider Electric Socket, 6 A, relay type SSL, spring terminals, 5/24 V DC SSLZRA1
Schneider Electric

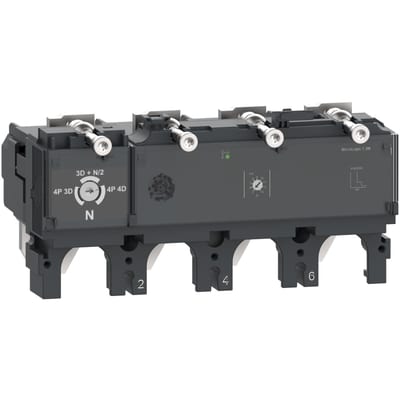

Schneider Electric Trip unit MicroLogic 2.3, ComPacT NSX400/630, 4 poles, electronic basic protections, 250A rating C4042D250
Schneider Electric

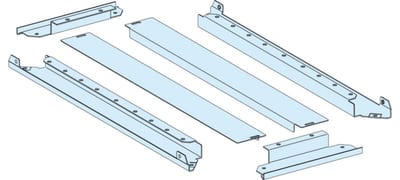

Bunnpl. 2DELT IP30 PrismaSeT P B300 D600
