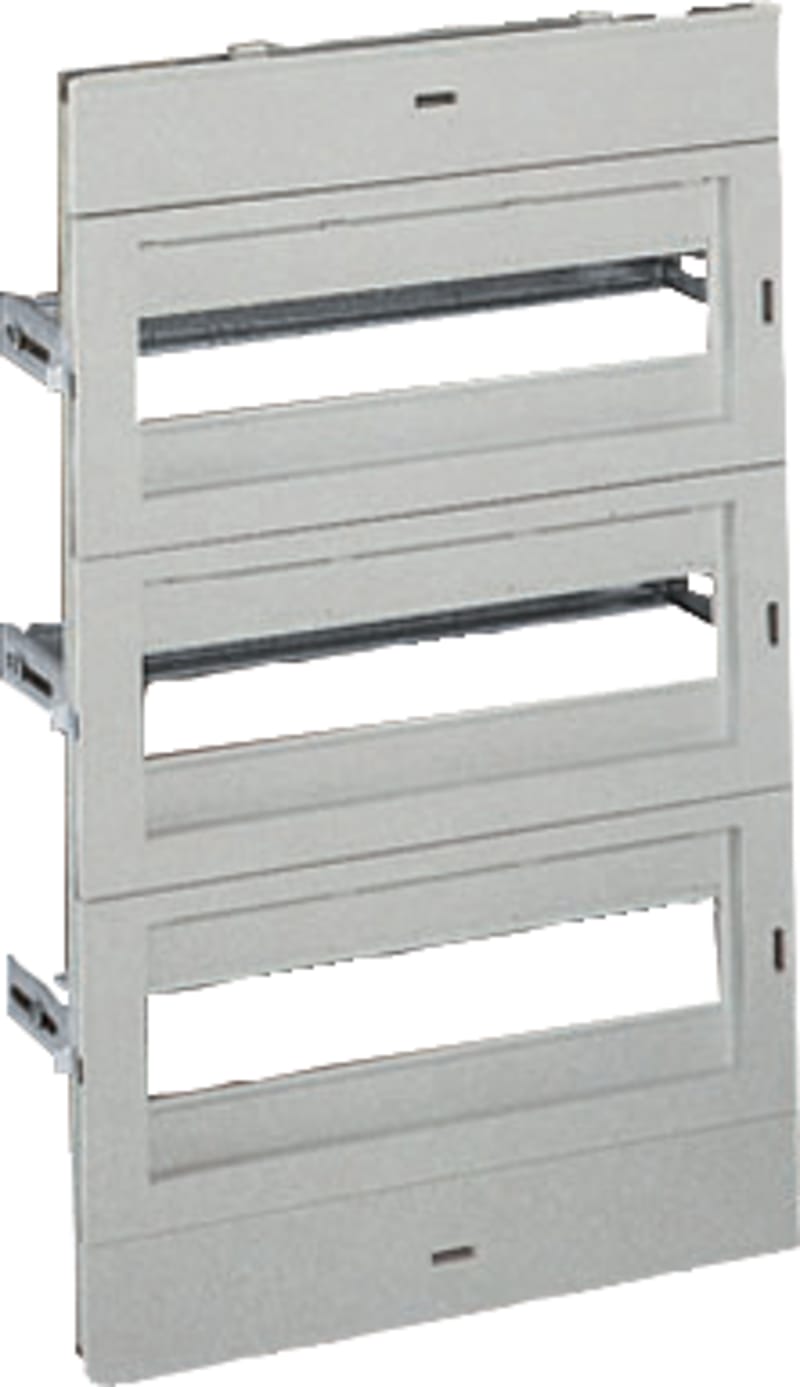

Mod insert 12M for 18X27PLS
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYDLS12 Mod insert 12m for 18x27PLS.
Technical Specifications
- Manufacturer part number (MPN)
- NSYDLS12
- EAN / GTIN
- 3606480188459
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Application
- Multi-purpose; Modular distribution application
- Product or component type
- Chassis
- Device short name
- DLS
- For enclosure nominal dimensions
- - H: 180 mm W: 270 mm D: 180 mm
- Mounting location
- Front of enclosure
- Range compatibility
- PanelSeT PLS
- Device composition
- 1 chassis structure; 1 front panel; 1 35 mm DIN rail
- Material
- Front panel: self-extinguishing; Chassis structure and rails: galvanised steel
- Colour
- Front panel: grey (RAL 7032)
- Fixing mode
- By fixing element - on front with supports location
- Number of horizontal rows
- 1
- Total number of 18 mm modules
- 12
- Type of front plate
- Cut-out plate
- Number of cut-out
- 1 cut-out
- Height
- 255 mm
- Width
- 170 mm
- Depth
- 90 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 9.000 cm
- Package 1 Width
- 17.000 cm
- Package 1 Length
- 25.500 cm
- Package 1 Weight
- 538.000 g
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 6
- Package 2 Height
- 29.000 cm
- Package 2 Width
- 37.500 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 3.228 kg
- Country of origin
- ES
- Warranty (in months)
- 18
- Spare part
- No
- Accessory
- No
- Type of accessory/spare part
- Adaptor kit
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3606480188459
- SAP 1000470099
- Code 8112550
