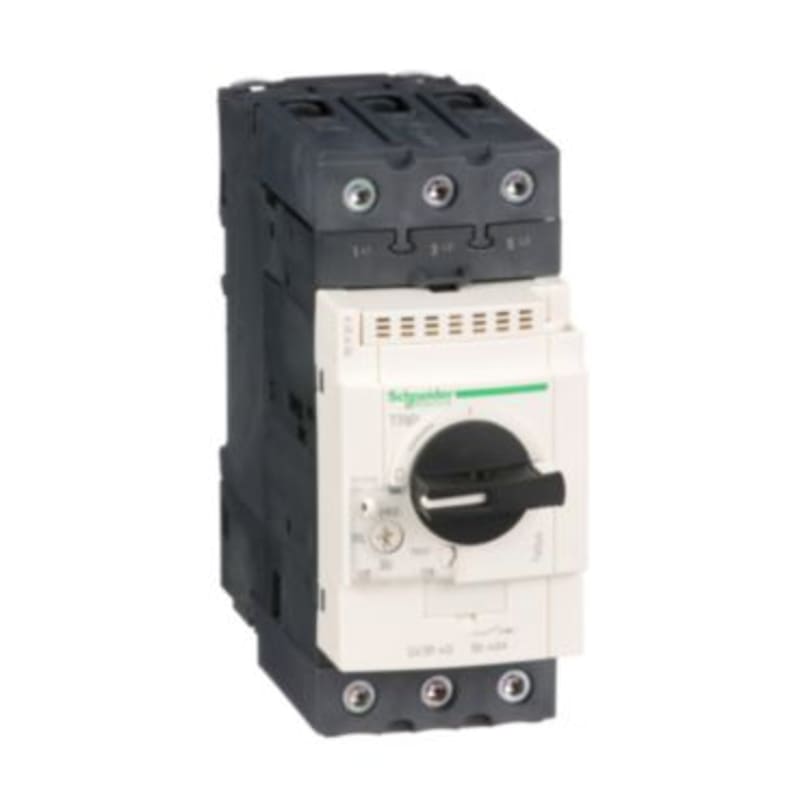

Schneider Electric Motor circuit breaker, TeSys GV3, 3P, 30-40 A, thermal magnetic, EverLink terminals GV3P40
Part numberGV3P40EAN / GTIN3389119405393HS code8536.90
Electrical Components
Motor Protection Circuit Breakers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric GV3P40.
Technical Specifications
- Manufacturer part number (MPN)
- GV3P40
- EAN / GTIN
- 3389119405393
- HS code
- 8536.90
- Sales unit
- pcs
- Setting range
- 30-40 A
- Range
- TeSys Deca
- Product name
- TeSys GV3
- Product or component type
- Motor circuit breaker
- Device short name
- GV3P
- Device application
- Motor protection
- Trip unit technology
- Thermal-magnetic
- Poles description
- 3P
- Network type
- AC
- Utilisation category
- Category A conforming to IEC 60947-2; AC-3 conforming to IEC 60947-4-1
- Network frequency
- 50/60 Hz conforming to IEC 60947-2
- Motor power kW
- 18.5 kW at 400/415 V AC 50/60 Hz; 22 kW at 500 V AC 50/60 Hz; 37 kW at 690 V AC 50/60 Hz
- Breaking capacity
- 100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2; 50 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2; 50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2; 12 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2; 6 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2
- [Ics] rated service short-circuit breaking capacity
- 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2; 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2; 100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2; 50 % at 500 V AC 50/60 Hz conforming to IEC 60947-2; 50 % at 690 V AC 50/60 Hz conforming to IEC 60947-2
- Control type
- Rotary handle
- [In] rated current
- 40 A
- Thermal protection adjustment range
- 30…40 A conforming to IEC 60947-2
- Magnetic tripping current
- 560 A
- [Ith] conventional free air thermal current
- 40 A conforming to IEC 60947-2
- [Ue] rated operational voltage
- 690 V AC 50/60 Hz conforming to IEC 60947-2
- [Ui] rated insulation voltage
- 690 V AC 50/60 Hz conforming to IEC 60947-2
- [Uimp] rated impulse withstand voltage
- 6 kV conforming to IEC 60947-2
- Phase failure sensitivity
- Yes conforming to IEC 60947-4-1
- Suitability for isolation
- Yes conforming to IEC 60947-1
- Power dissipation per pole
- 8 W
- Mechanical durability
- 50000 cycles
- Electrical durability
- 50000 cycles for AC-3 at 415 V In
- Rated duty
- Uninterrupted conforming to IEC 60947-4-1
- Tightening torque
- 5 N.m - on screw clamp terminal
- Fixing mode
- 35 mm symmetrical DIN rail: clipped; Panel: screwed (with 3 x M4 screws)
- Mounting position
- Horizontal; Vertical
- Width
- 55 mm
- Height
- 132 mm
- Depth
- 136 mm
- Product weight
- 0.96 kg
- Colour
- Dark grey
- Standards
- EN/IEC 60947-2; EN/IEC 60947-4-1; UL 60947-4-1; CSA C22.2 No 60947-4-1; IEC/EN 60335-1:Clause 30.2; IEC/EN 60335-2-40:Annex JJ
- Product certifications
- CCC; UL; CSA; EAC; ATEX; LROS (Lloyds register of shipping); BV; ABS; DNV-GL; UKCA
- IK degree of protection
- IK09 enclosure
- IP degree of protection
- IP20 conforming to IEC 60529
- Climatic withstand
- conforming to IACS E10
- Ambient air temperature for storage
- -40…80 °C
- Fire resistance
- 960 °C conforming to IEC 60695-2-11
- Ambient air temperature for operation
- -20…60 °C
- Mechanical robustness
- Shocks: 15 Gn for 11 ms contactor open; Shocks: 30 Gn for 11 ms contactor closed; Vibrations: 4 Gn, 5...300 Hz
- Operating altitude
- 3000 m
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 120
- Country of origin
- FR
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3389119405393
- SAP 1000058127
- Code 8543523
