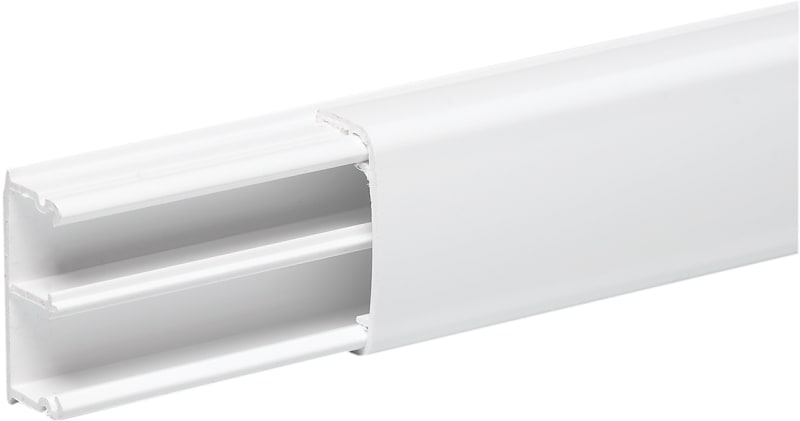

Schneider Electric ISM14400P OptiLine - minitrunking - 18 x 35 mm - PVC - polar white
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric ISM14400P OptiLine - minitrunking - 18 x 35 mm - PVC - polar white is listed under Control & Automation / Conduit & Trunking. Sales unit: pcs; Package quantity: 10 pcs; Range of product: Optiline; Cabling installation system: Trunking; product type: Mini trunking; trunking type: Mini trunking.
Technical Specifications
- Manufacturer part number (MPN)
- ISM14400P
- EAN / GTIN
- 3606480683022
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range of product
- Optiline
- Cabling installation system
- Trunking
- product type
- Mini trunking
- trunking type
- Mini trunking
- Trunking material
- Plastic
- Compartment partitioning
- 2 compartments
- colour
- White (RAL 9003)
- trunking dimension
- 18 x 35 mm
- Fixing mode
- Pre-punched fixing hole 100 mm; Power cable: screw-fixed
- Material
- PVC (polyvinyl chloride)
- quantity per package
- 42 m
- operating temperature
- -5…60 °C
- Length
- 2100 mm
- Height
- 18 mm
- Width
- 35 mm
- Standards
- 73/23/EEC; EN 50085-1:2005; EN 50085-2-1:2006
- IP degree of protection
- IP40
- IK degree of protection
- IK07
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.5 cm
- Package 1 Width
- 1.8 cm
- Package 1 Length
- 100 cm
- Package 1 Weight
- 577 g
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 1008
- Package 2 Height
- 48.2 cm
- Package 2 Width
- 120.0 cm
- Package 2 Length
- 215.0 cm
- Package 2 Weight
- 606.616 kg
- Warranty (in months)
- 18
- Halogen free
- No
- RAL-number
- 9003
- Surface protection
- Untreated
- Pre-stamping
- No
- Material quality
- Polyvinyl chloride (PVC)
- Type of fastening
- Bottom perforation
- Impact strength
- IK07
- Number of permanent partitions
- 1
- With cable fixing clip
- No
- With duct connector
- No
- Usable cross section
- 201 mm²
- With protective foil
- No
- Degree of protection (IP)
- IP40
- Delivery on roll
- No
- Transparent
- No
- Suitable for circuit integrity
- No
- Cover model
- Loose
- Anti-bacterial treatment
- No
- Country of origin
- United Kingdom
Standards & Compliance
- HS Code
- 3925.90
Cross References
- EAN 3606480683022
- SAP 1000623413
- Code 8113963
Product Documentation
