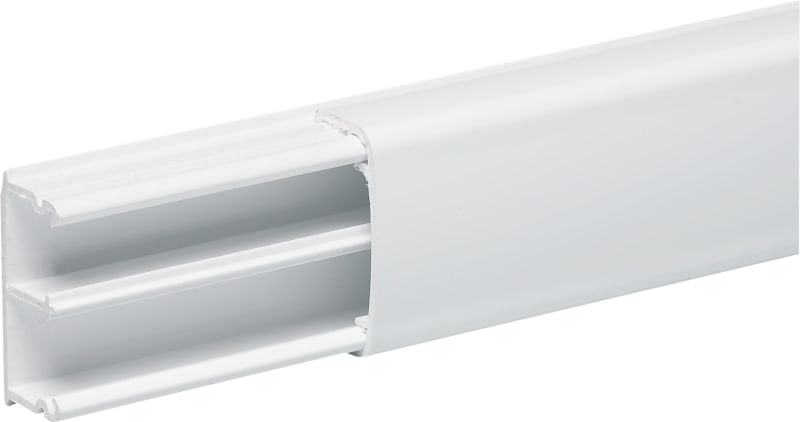

Schneider Electric ISM14430 OptiLine - minitrunking - 18 x 35 mm - PC/ABS - white
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric ISM14430 OptiLine - minitrunking - 18 x 35 mm - PC/ABS - white is listed under Control & Automation / Conduit & Trunking. Sales unit: pcs; Range of product: Optiline; Cabling installation system: Trunking; product type: Mini trunking; trunking type: Mini trunking; Trunking material: Plastic.
Technical Specifications
- Manufacturer part number (MPN)
- ISM14430
- EAN / GTIN
- 3606480311253
- Sales unit
- pcs
- Range of product
- Optiline
- Cabling installation system
- Trunking
- product type
- Mini trunking
- trunking type
- Mini trunking
- Trunking material
- Plastic
- Compartment partitioning
- 2 compartments
- colour
- White (RAL 9010)
- trunking dimension
- 18 x 35 mm
- Fixing mode
- Pre-punched fixing hole 100 mm; Power cable: screw-fixed
- Material
- PC/ABS
- quantity per package
- 42 m
- operating temperature
- -25…60 °C
- Length
- 2100 mm
- Height
- 35 mm
- Width
- 18 mm
- Standards
- 73/23/EEC; EN 50085-1:2005; EN 50085-2-1:2006
- IP degree of protection
- IP40
- IK degree of protection
- IK07
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.5 cm
- Package 1 Width
- 1.8 cm
- Package 1 Length
- 210 cm
- Package 1 Weight
- 517 g
- Warranty (in months)
- 18
- Halogen free
- Yes
- RAL-number
- 9010
- Surface protection
- Untreated
- Pre-stamping
- No
- Type of fastening
- Bottom perforation
- Impact strength
- IK07
- Number of permanent partitions
- 1
- With cable fixing clip
- No
- With duct connector
- No
- Usable cross section
- 402 mm²
- With protective foil
- No
- Degree of protection (IP)
- IP40
- Delivery on roll
- No
- Transparent
- No
- Suitable for circuit integrity
- No
- Cover model
- Loose
- Anti-bacterial treatment
- No
- Country of origin
- United Kingdom
Standards & Compliance
- HS Code
- 3925.90
Cross References
- EAN 3606480311253
- SAP 1000096404
- Code 8589861
Product Documentation
More from Schneider Electric
Schneider Electric
Screw Clip TCS-C3 10-14 White
2190021
Schneider Electric
Standard bend Steel 20mm
3016122
Schneider Electric
Light Unit with fast LED in red
XVB7C24
Schneider Electric
Schneider Electric A9F08432 ACTI9 IC60H Miniature Circuit Breaker 4P 32 A, Curve D
Schneider Electric
Digital multimeter CAT3 600V
IMT23122
Schneider Electric
Schneider Electric Linergy FT - Comb busbar - 63 A - 3 tap-offs - 45 mm pitch GV2G345
Schneider Electric
Schneider Electric Actassi 19-C Fixed Shelf 19" 1U 250mm Deep maximum 15kg VDIG188011
Schneider Electric
Robust double socket, with touch-guard shutter + earth, recessed
WDE000902
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy ISM14430?
- ISM14430 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is ISM14430.
- What is the HS code for ISM14430?
- The customs tariff (HS) code for ISM14430 is 3925.90.
- Who manufactures ISM14430?
- ISM14430 is a Schneider Electric product in the Control & Automation range.
- Is a datasheet available for ISM14430?
- Yes — the ISM14430 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for ISM14430?
- The minimum order quantity is 1.
- Is ISM14430 available?
- Yes — ISM14430 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
