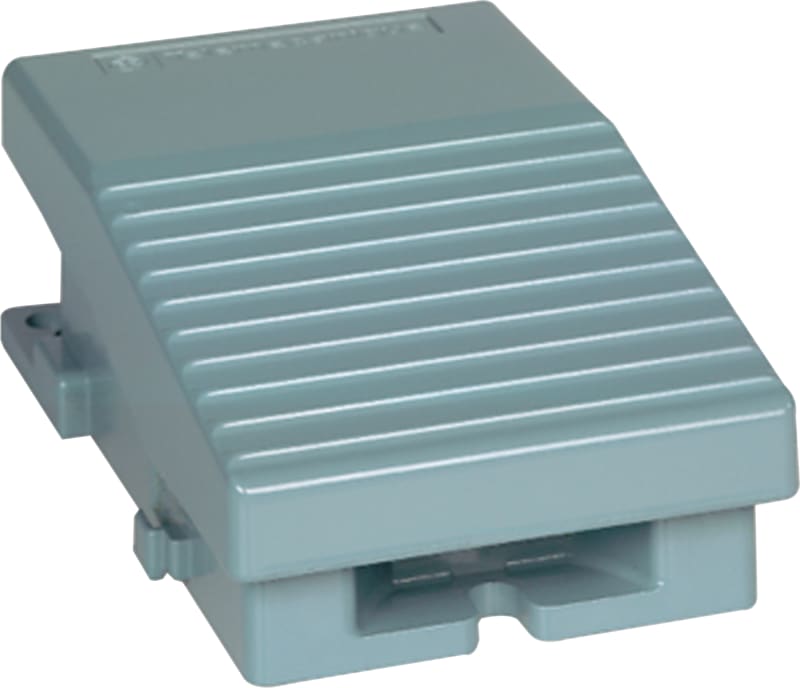

Schneider Electric single foot switch - IP66 - without cover - metallic - blue - 2 NC + NO XPEM129

Schneider Electric XPEM129 Foot Switch Metal Blue.

Manufacturer part number (MPN)

XPEM129

EAN / GTIN

3389110600346

Sales unit

pcs

Range of product

Harmony XPE

Product or component type

Foot switch

Material

Metal

Foot switch type

Single foot switch

Device short name

XPEM

Trigger mechanism

Without trigger mechanism

Contact operation

1 step with analog output

Contacts type and composition

2 NC + NO

Colour

Blue

Positive opening

With conforming to IEC 60947-5-1 appendix K

[Us] rated supply voltage

24...48 V DC

Supply voltage limits

19…58 V

Current consumption

4 mA no-load

Output current drift

-12…2 % at -25…70 °C; -6…2 % at 0…50 °C

Connections - terminals

Screw clamp terminal, <= 1 x 2.5 mm² with or without cable end; Screw clamp terminal, <= 2 x 1.5 mm² with or without cable end

cable entry

2 entries tapped for Pg 16 cable gland

Mechanical durability

15000000 cycles

[Ie] rated operational current

3 A, 240 V, AC-15, A300; 0.27 A, 250 V, DC-13, Q300 conforming to IEC 60947-5-1 appendix A

[Ui] rated insulation voltage

500 V (pollution degree 3) conforming to IEC 60947-1; 500 V (pollution degree 3) conforming to NF C 20-040 group C; 500 V (pollution degree 3) conforming to VDE 0110 group C; 300 V conforming to UL 508; 300 V conforming to CSA C22.2 No 14

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1; 6 kV conforming to IEC 60664

Maximum resistance across terminals

0.025 mOhm conforming to IEC 60255-7 category 3; 0.025 mOhm conforming to NF C 93-050 method A

Short-circuit protection

10 A cartridge fuse type gG conforming to IEC 60947-5-1; 10 A cartridge fuse type gG conforming to VDE 0660-200

Rated operational power in W

10 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 24 V, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 4 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 120 V, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 7 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 48 V, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

Physical characteristics

(13-14)NO; (21-22)NC; (11-12)NC; (23-24)NO

Product weight

1.2 kg

Standards

NF E 09-031

Product certifications

CSA; FIMKO

Protective treatment

TC

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…70 °C

Vibration resistance

15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

Shock resistance

150 gn conforming to NF E 09-031; 20 gn conforming to IEC 60068-2-27

Overvoltage category

Class I conforming to IEC 61140; Class I conforming to NF C 20-030

IP degree of protection

IP66 conforming to IEC 60529

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

9.0 cm

Package 1 Width

13.1 cm

Package 1 Length

23.2 cm

Package 1 Weight

1.538 kg

Unit Type of Package 2

S02

Number of Units in Package 2

4

Package 2 Height

15.0 cm

Package 2 Width

30.0 cm

Package 2 Length

40.0 cm

Package 2 Weight

6.494 kg

Warranty (in months)

18

Width

131 mm

Height

90 mm

Depth

232 mm

Number of switch positions

1

Rated operation current Ie at AC-15, 230 V

3 A

Suitable for safety functions

No

Type of command

On or off

With protection hood

No

With interlocking

No

Degree of protection (IP)

IP66

With protective insulation

No

Switching function latching

No

Number of contacts as normally closed contact

1

Number of contacts as normally open contact

2

Country of origin

Morocco

HS Code

8536.50
