NG125N/C 20-1 Modular Power Switch
Pricing
Request a quote
We reply within 24 hours
Product Description

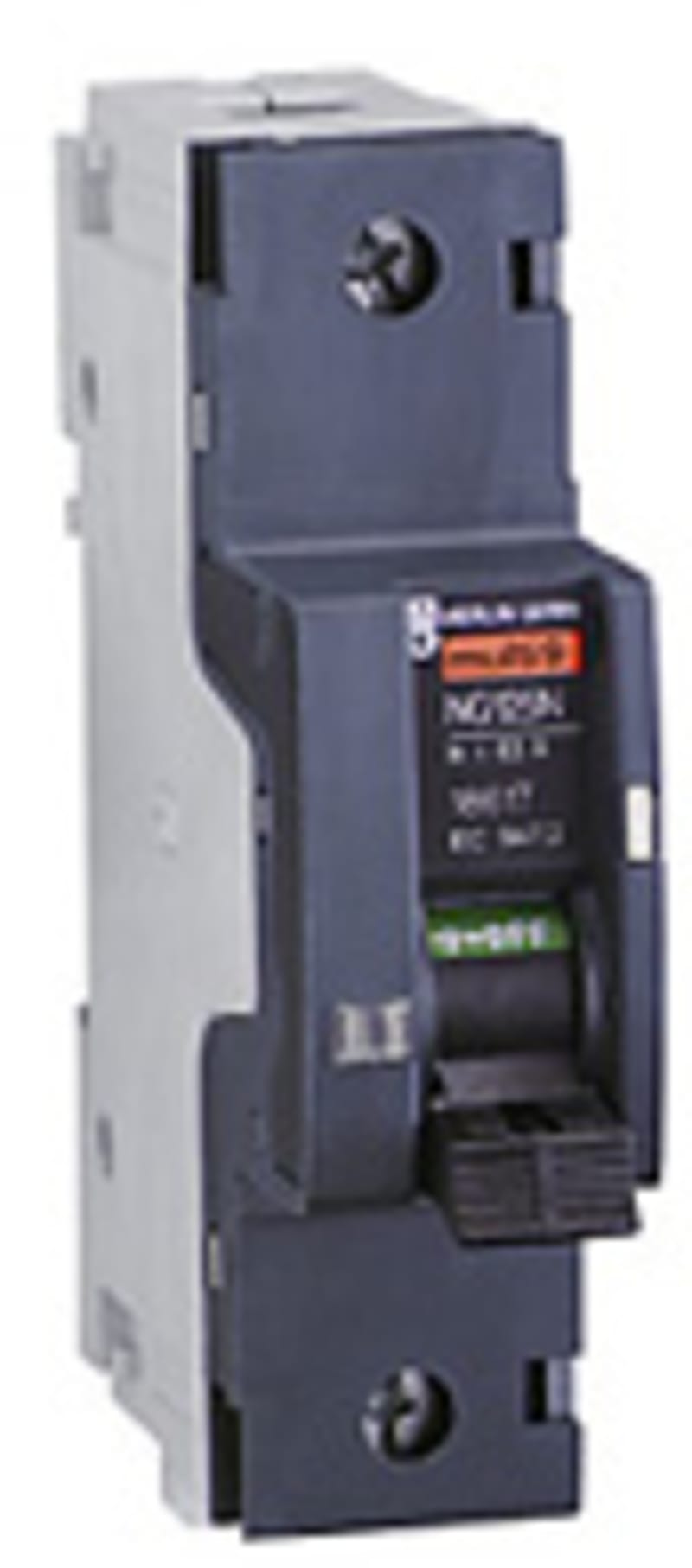

Schneider Electric 18612 NG125N/C 20-1 Modular power switch
Technical Specifications
- Manufacturer part number (MPN)
- 18612
- EAN / GTIN
- 3303430186120
- Sales unit
- pcs
- Package quantity
- 72 pcs
- Power loss
- 2.7 W
- Built-in depth
- 47 mm
- Release characteristic
- C
- Number of poles (total)
- 1
- Number of protected poles
- 1
- Rated current
- 20 A
- Rated voltage
- 400 V
- Rated insulation voltage Ui
- 690 V
- Rated impulse withstand voltage Uimp
- 8 kV
- Frequency
- 50–60 Hz
- Concurrently switching neutral conductor
- No
- Overvoltage category
- 4
- Pollution degree
- 3
- Additional equipment possible
- Yes
- Width in number of modular spacings
- 1.5
- Degree of protection (IP)
- IP20
- Ambient temperature during operating
- -30–70 °C
- Connectable conductor cross section multi-wired
- 1–35 mm²
- Connectable conductor cross section solid-core
- 1.5–50 mm²
- Explosion-proof
- No
- Flush-mounted installation
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 3303430186120
- SAP 1000049109
- Code 8532050
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric License upgrade, EcoStruxure EV Charging Expert, static charge management, from 15 to 100 charging stations EVLMSESS2EDL
Schneider Electric
Schneider Electric Trip unit MicroLogic Vigi 4.2AL, ComPacT NSX250, 4 poles, electronic basic protections, earth leakage alarm, 250A C2544A250
Schneider Electric
PowerTag Energy P63 1PN Bottom RCBO
A9MEM1563
Schneider Electric
Schneider Electric Push button, Harmony XB4, metal, flush, blue, 22mm, spring return, unmarked, 1 NO, compact push in terminals XB4BA615
Schneider Electric
Schneider Electric Busbar, Linergy BS, plain busbar, 1400AHORIZONTAL, flat bar, 60X10MM, L2000MM LVS04546
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX500 TM DC EP, 50KA/1500VDC, 4 poles, TM-DC trip unit 320A C50F4TM320D3
Schneider Electric
Schneider Electric TeSys D contactor 3P 66A AC-3 up to 440V coil 440V AC 50/60Hz LC1D80AR7
Schneider Electric
Riflet Pilot Light Head Green F
ZB4BV033S
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 18612?
- 18612 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is 18612.
- What is the HS code for 18612?
- The customs tariff (HS) code for 18612 is 8536.20.
- Who manufactures 18612?
- 18612 is a Schneider Electric product in the Electrical Components range.
- Is a datasheet available for 18612?
- Yes — the 18612 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 18612?
- The minimum order quantity is 1.
- Is 18612 available?
- Yes — 18612 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
