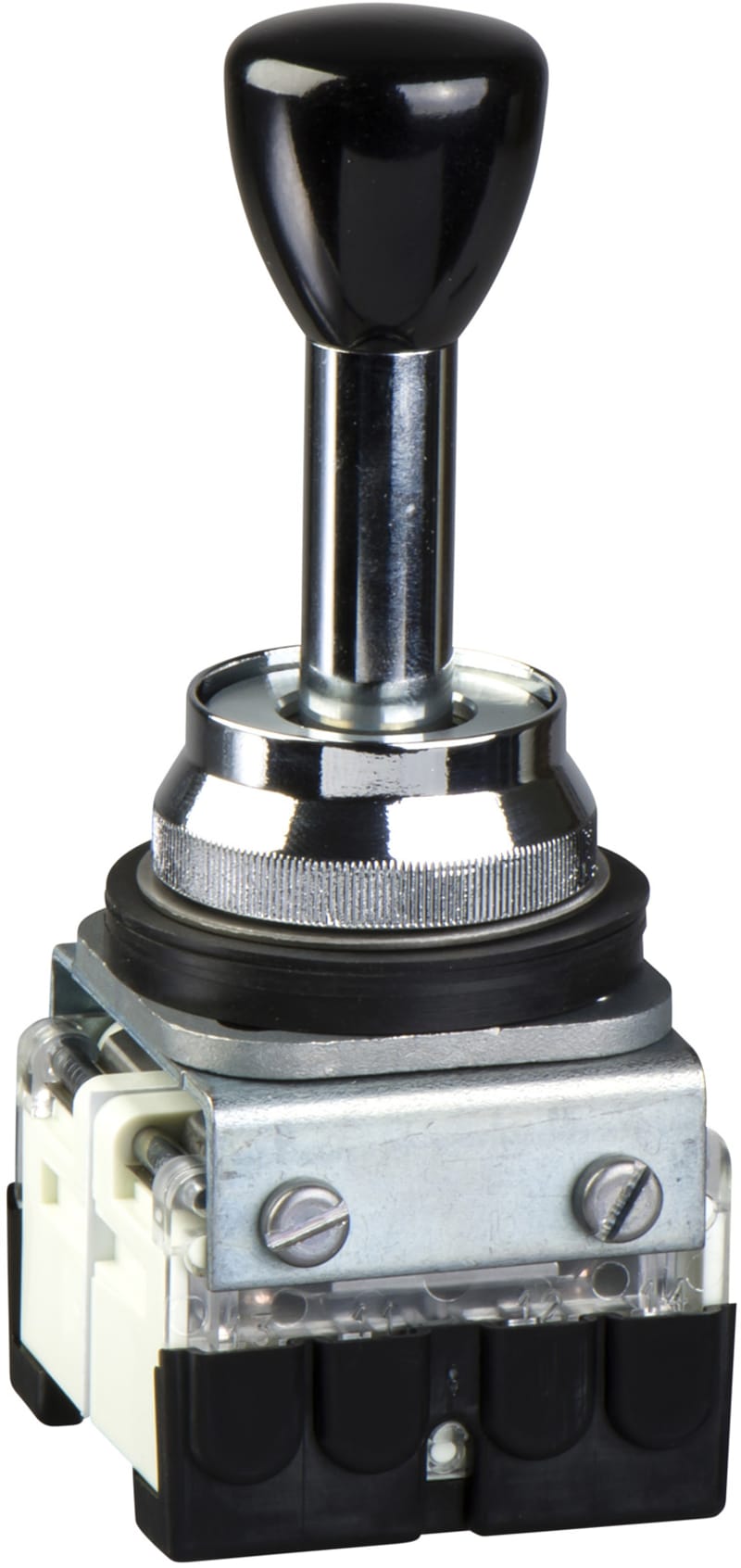

Controller (XD2AC231)

Schneider Electric XD2AC231 Kontroller.

Manufacturer part number (MPN)

XD2AC231

EAN / GTIN

3389110661200

Sales unit

pcs

Range of product

Harmony XD2

Product or component type

Complete joystick controller

Device short name

XD2

Mounting diameter

30 mm

Bezel material

Chromium plated metal

Operator position information

All positions

Notch per direction

1

Operator direction information

2 directions

Contacts type and composition

1 C/O for snap action

Short-circuit protection

10 A gG (gl) Neozed cartridge fuse conforming to IEC 60947-5-1

Connections - terminals

Captive screw clamp terminals, 2 x 1.5 mm² with or without cable end; Captive screw clamp terminals, 1 x 2.5 mm² with or without cable end

Electrical durability

1000000 cycles, AC-15 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, AC-15 at 127 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, DC-13 at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, DC-13 at 48 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, DC-13 at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, AC-15 at 48 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

Contact code designation

A600-Q600

Overvoltage category

Class I conforming to IEC 61140

Mechanical durability

1000000 cycles

fixing center

60 x 100 mm

Return

1 to 0 position

Height

111 mm

Depth

68 mm

Product weight

0.22 kg

Standards

IEC 60947-5-1

Product certifications

CSA

Protective treatment

TC

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…70 °C

Vibration resistance

25 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

Shock resistance

50 gn conforming to IEC 60068-2-27

IP degree of protection

IP40 conforming to IEC 60529

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

6.000 cm

Package 1 Width

7.000 cm

Package 1 Length

12.000 cm

Package 1 Weight

236.000 g

Unit Type of Package 2

S01

Number of Units in Package 2

10

Package 2 Height

15.000 cm

Package 2 Width

15.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

2.560 kg

Unit Type of Package 3

P06

Number of Units in Package 3

320

Package 3 Height

75.000 cm

Package 3 Width

80.000 cm

Package 3 Length

60.000 cm

Package 3 Weight

89.920 kg

Country of origin

FR

Warranty (in months)

18

Number of switch positions

2

Rated operation current Ie at AC-21, 400 V

10 A

Centre mounting, hole diameter

30 mm

Number of actuation directions

2

With retraction in 0-position

Yes

Colour front ring

Chrome

Analogue output signal configurable

No

Degree of protection (IP)

IP40

Coder

No

Material front ring

Metal

With front ring

Yes

Locking in 0-position

No

Joy stick length

68 mm

HS Code

8536.50

• EAN 3389110661200
• SAP 1000003178
• Code 8469627
