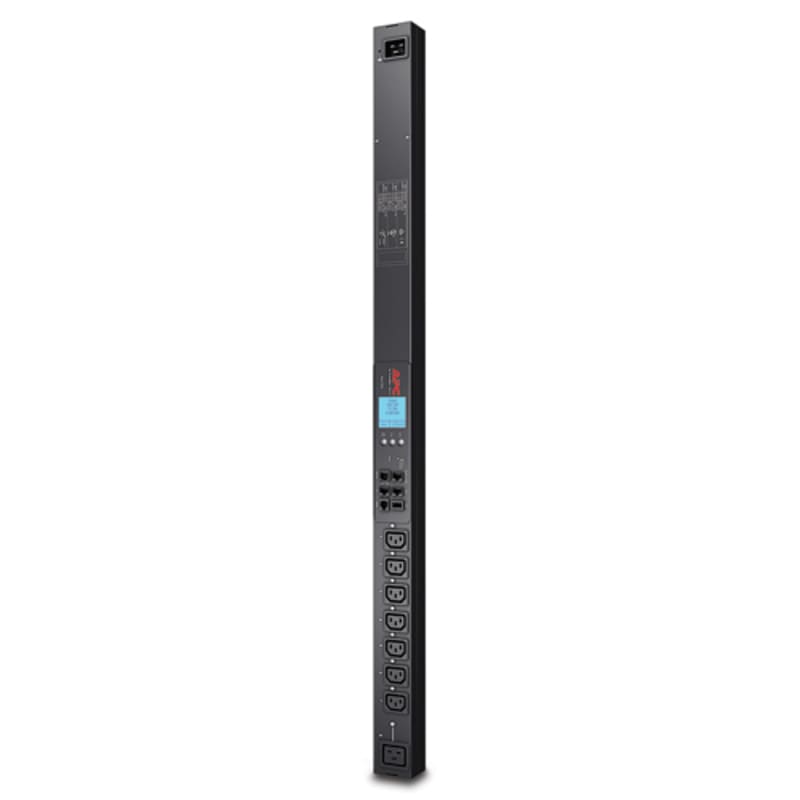

Schneider Electric Rack PDU 2G, Switched, ZeroU, 20A/208V, 16A/230V, (7) C13 & (1) C19 AP8958

Schneider Electric AP8958 Rack PDU 2G, Switched, ZeroU, 16A, 100-2.

Manufacturer part number (MPN)

AP8958

EAN / GTIN

0731304277101

Sales unit

pcs

Rated current

16 A

Presentation

APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power recycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and low profile circuit breakers. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.

Colour

Black

Product or component type

PDU

PDU type

Switched

Provided equipment

Installation guide; Rack mounting brackets; Serial configuration cable; Safety guide

Input Voltage

200 V; 208 V; 230 V

Height

988 mm

Width

56 mm

Output Voltage

100 V; 200 V; 208 V; 230 V

Depth

46 mm

Product weight

3.23 kg

Mounting location

Side

Mounting preference

No preference

Input Plug Type

IEC 60320 C20

mounting mode

Rack-mounted

Rack units

0U

Mounting position

Vertical

[In] rated current

16 A

permissible voltage

100…240 V

Input current limits

20 A

Load capacity

3300 VA

Network frequency

50/60 Hz

Outlet type and quantity

7 IEC 60320 C13 ; 1 IEC 60320 C19

Product certifications

cUL listed; PSE; UL listed; VCCI class A; VDE

Standards

EN 55022 class A; EN 55024; EN 61000-3-2; EN 61000-3-3; FCC part 15 class A; ICES-003

Ambient air temperature for operation

-5…60 °C

Relative humidity

5…95 %

Operating altitude

0...10000 ft

Ambient air temperature for storage

-25…65 °C

Storage Relative Humidity

5…95 %

Storage altitude

0…15240 m

Number of Units in Package 1

1

Country of origin

IN

Warranty (in months)

24

Nominal current

20 A

Mounting direction

Vertical

Electrical connection

Connection cable with plug

Number of C13 socket outlets

7

Number of C19 socket outlets

1

Length

46 mm

Supply voltage

230 V

Overvoltage category

1

Interface ethernet

Yes

HS Code

8537.10

• EAN 0731304277101
• SAP 1000455574
• Code 8795331
