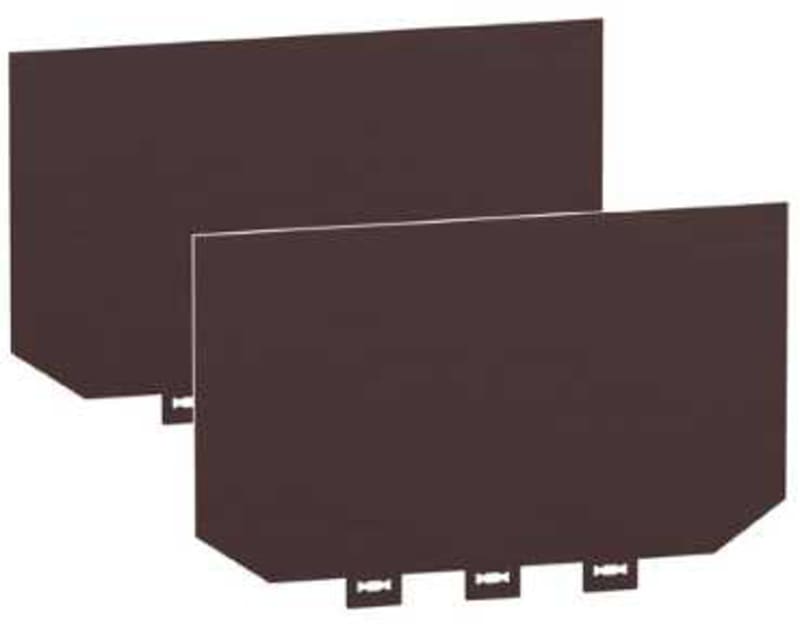

Schneider Electric LV429331 — Rear Insulation Screens, NSX100/160/250, 4 poles, pitch 45 mm (set of 2)

Schneider Electric LV429331 is a set of two rear insulation screens for the ComPacT NSX100/160/250 (and EasyPact CVS 100/160/250) moulded-case circuit-breaker range, for 4-pole devices at 45 mm connection pitch. The screens insulate the rear power connections and are used for devices fitted with terminal spreaders and for backplate mounting where terminal shields are not applied. Conforms to IEC 60947-2 as a circuit-breaker accessory. RoHS 2011/65/EU and REACH compliant; CE marked.

Type

rear insulation screens (insulation accessory), set of 2 parts

Compatible devices

ComPacT NSX100/160/250 (and EasyPact CVS 100/160/250)

Poles

4

Connection pitch

45 mm

Function

insulate the rear power connections; required for devices fitted with spreaders and for backplate mounting when terminal shields are not used

Supplied as

set of 2 parts

Standard

IEC 60947-2 (circuit-breaker accessory)

Compliance

RoHS 2011/65/EU, REACH; CE marked

Manufacturer part number (MPN)

LV429331

EAN / GTIN

3606480025211

HS code

8538.90

Product or component type

Insulation screen

Range compatibility

ComPacT ComPacT NSX100; ComPacT ComPacT NSX160; ComPacT ComPacT NSX250; ComPacT ComPacT NSX DC NSX100 DC; ComPacT ComPacT NSX DC NSX160 DC; ComPacT ComPacT NSX DC NSX250 DC; ComPact ComPact NSX100; ComPact ComPact NSX160; ComPact ComPact NSX250; ComPact Compact NSX100 DC; ComPact Compact NSX160 DC; ComPact Compact NSX250 DC; EasyPact EasyPact CVS100; EasyPact EasyPact CVS160; EasyPact EasyPact CVS250

Accessory / separate part type

Insulation accessories

Poles description

4P

Quantity per set

Set of 2

Product compatibility

Circuit-breaker

Country of origin

FR

Warranty (in months)

18

Standard

IEC 60947-2

HS Code

8538.90

• EAN 3606480025211
• SAP 1000092272
• Code 8584984
