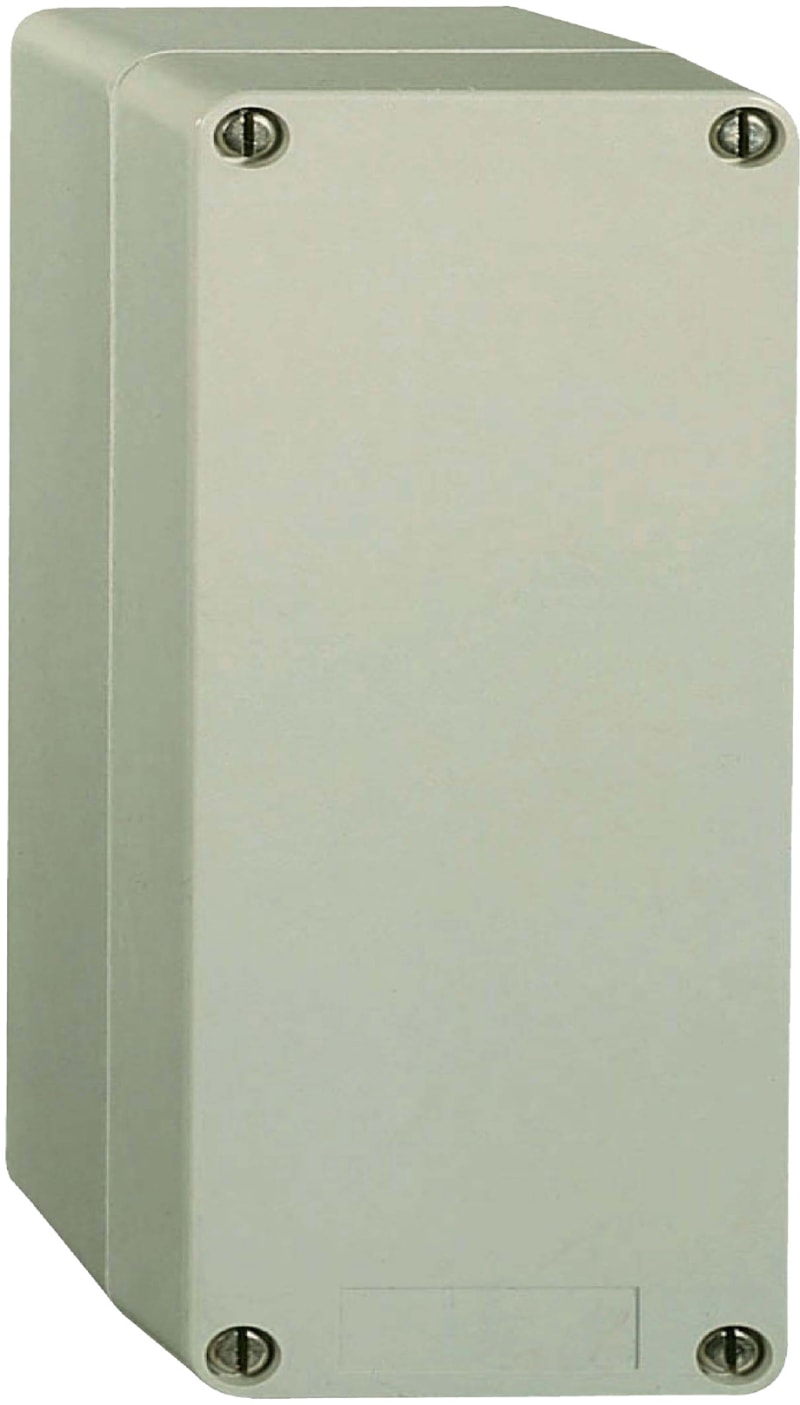

Schneider Electric empty control station - XAP-A - plastic - without opening XAPA1100
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric XAPA1100 Mounting Box Polyes.85X146mm.
Technical Specifications
- Manufacturer part number (MPN)
- XAPA1100
- EAN / GTIN
- 3389110313154
- Sales unit
- pcs
- Package quantity
- 113 pcs
- Range of product
- Harmony XAP
- Product or component type
- Empty control station without hinges
- Device short name
- XAPA
- Product front plate size
- 85 x 146 mm
- Usable depth
- 83 mm
- Number of cut-out
- Undrilled
- Colour of base of enclosure
- Grey
- Colour of cover
- Grey
- Material
- Glass reinforced polyester
- Cable entry
- Undrilled
- Device mounting
- Flush
- IP degree of protection
- IP65 conforming to IEC 60529; IP69 conforming to NF C 20-010; IP69K
- Resistance to chemical agents
- High resistant to acids; High resistant to all solvents; High resistant to bases; High resistant to diesel; High resistant to mineral salts; High resistant to oils and greases; High resistant to petrol; High resistant to sea water
- Product weight
- 0.47 kg
- Flame retardance
- M3 conforming to CSTB; VO conforming to UL 94
- Protective treatment
- TC; TH
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -40…70 °C
- Overvoltage category
- Class II conforming to IEC 60536; Class II conforming to NF C 20-030
- Fire resistance
- 850 °C conforming to NF C 20-455; 960 °C conforming to IEC 92
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 113
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 85 mm
- Height
- 146 mm
- Depth
- 87 mm
- Colour housing cover
- Grey
- Housing material
- Plastic
- Construction type housing
- Surface mounted housing
- Degree of protection (IP)
- IP65/IP67
- Housing material quality
- Acrylonitrile butadiene styrene (ABS)
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3389110313154
- SAP 1000042871
- Code 8525233
Product Documentation
More from Schneider Electric
Schneider Electric
Modular Blank Plate with Hinges (NSYMPCH306)
Schneider Electric
83262 FAST Knejoint 50X50
NSYCMUTC50
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX400N, 50KA/415VAC, 3 poles, MicroLogic 2.3 trip unit 250A C40N32D250
Schneider Electric
Neoprene-Button (XACB9116)
Schneider Electric
Modular Blank Plate with Hinges (NSYMPCH158)
Schneider Electric

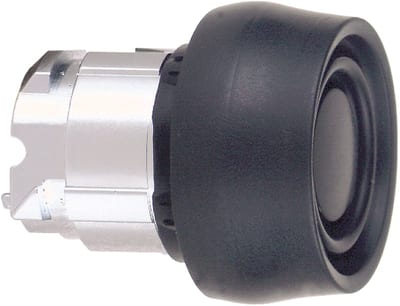

PUSH-Button with Black Silicone Cap
ZB4BP2S
Schneider Electric

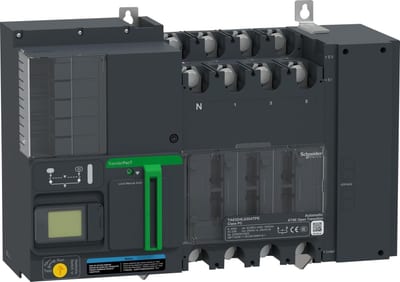

Schneider Electric TransferPacT Active Automatic, 400A, 400V, 4P, LCD, frame 630A TA63D4L4004TPE
Schneider Electric

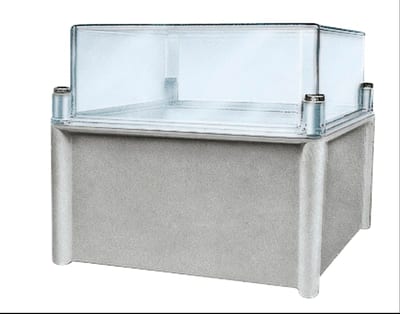

Schneider Electric PLS box, polyester rear, transparent PC cover IP65 54X54X18CM NSYPLS5454G
