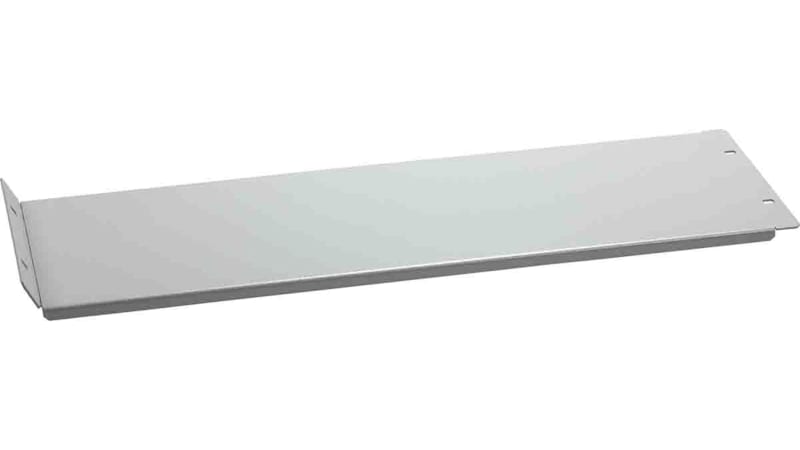

Modular Blank Plate with Hinges (NSYMPCH306)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYMPCH306 Modular Blank plate With Hinges.
Technical Specifications
- Manufacturer part number (MPN)
- NSYMPCH306
- EAN / GTIN
- 3606480065774
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Enclosure accessory
- Product or component type
- Cover plate
- Anwendung
- Multi-purpose
- Range compatibility
- PanelSeT SF SF
- Nominal dimensions of the housing
- - H: 300 mm W: 600 mm
- Mounting location
- On chassis coupling set
- Device composition
- fixing elements; 1 cover plate; hinges
- Quantity per set
- Set of 1
- Material
- Steel
- Colour
- Grey (RAL 7035)
- Surface finish
- Epoxy-polyester powder
- Fixing mode
- By screws
- Type of front plate
- Hinged plain
- Height
- Nominal: 300 mm; Real: 299.5 mm
- Width
- Nominal: 600 mm; Fixing centers: 478 mm; Real: 502 mm
- Depth
- Real : 12 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 50.500 cm
- Package 1 Width
- 30.000 cm
- Package 1 Length
- 1.500 cm
- Package 1 Weight
- 2.610 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 200
- Package 2 Height
- 90.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 535.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Cover
- RAL-number
- 7035
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3606480065774
- SAP 1000089246
- Code 8882225
