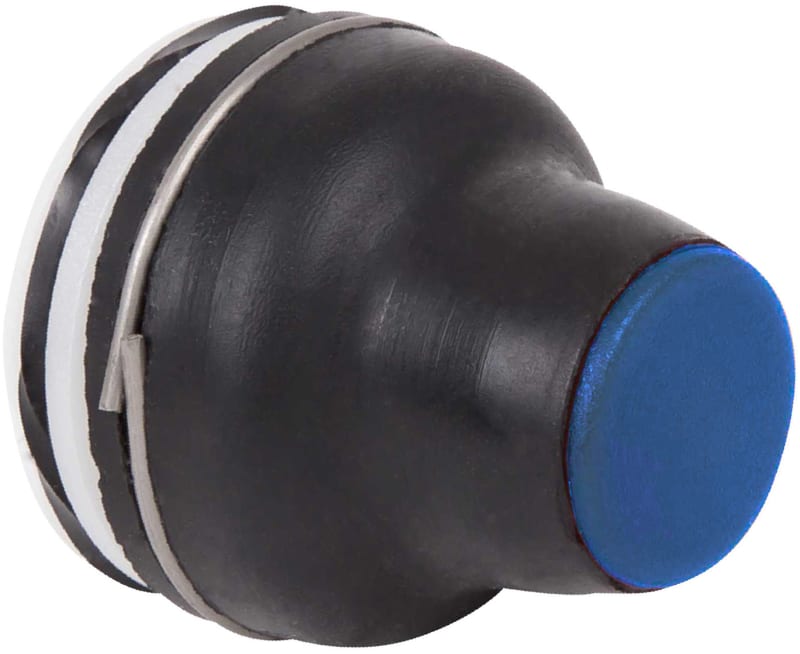

Neoprene-Button (XACB9116)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric XACB9116 Push-button Blue Neoprene Low.
Technical Specifications
- Manufacturer part number (MPN)
- XACB9116
- EAN / GTIN
- 3389110640908
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range of product
- Harmony XAC
- Product or component type
- Head for push-button
- Component name
- XACB
- Marking
- Unmarked
- Operator additional information
- Booted
- Operating travel
- 4 mm
- Cap/operator or lens colour
- Blue
- Product compatibility
- XENB....; XESD2201; XESD2241; XESD2251; XEND....; XESB2011; XENC....
- Sale per indivisible quantity
- 10
- Product weight
- 0.005 kg
- Standards
- IEC 60947-5-1; CSA C22.2 No 14; IEC 60947-5-1
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -40…70 °C
- Vibration resistance
- 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
- Shock resistance
- 100 gn conforming to IEC 60068-2-27
- Electrical shock protection class
- Class II conforming to IEC 61140
- IP degree of protection
- IP65 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to IEC 62262
- Number of Units in Package 1
- 1
- Country of origin
- CZ
- Warranty (in months)
- 18
- Hole diameter
- 22.5 mm
- Colour button
- Blue
- Suitable for lighting
- No
- Number of command positions
- 1
- Spring-return
- Yes
- Labelled
- No
- Type of button
- High
- Colour front ring
- Black
- Degree of protection (IP), front side
- IP65/IP67
- With protective cover
- No
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Round
- Switching function latching
- No
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389110640908
- SAP 1000061340
- Code 8919425
Product Documentation
More from Schneider Electric
Schneider Electric
Modular Blank Plate with Hinges (NSYMPCH158)
Schneider Electric
PUSH-Button with Black Silicone Cap
ZB4BP2S
Schneider Electric
Schneider Electric TransferPacT Active Automatic, 400A, 400V, 4P, LCD, frame 630A TA63D4L4004TPE
Schneider Electric
Schneider Electric PLS box, polyester rear, transparent PC cover IP65 54X54X18CM NSYPLS5454G
Schneider Electric
Schneider Electric Circuit breaker frame, ComPacT NS1000H, 70KA at 415VAC, 1000A, 3P, withdrawable, manually operated, without control unit C100H3WM
Schneider Electric
Schneider Electric Miniature plug-in relay, 10 A, 3 CO, 48 V DC RXM3AB1ED
Schneider Electric
Push-button flush red with text (ZB4FA432)
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX100B, 25KA/415VAC, 4 poles 4D (neutral fully protected), TMD trip unit 40A C10B4TM040
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XACB9116?
- XACB9116 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is XACB9116.
- What is the HS code for XACB9116?
- The customs tariff (HS) code for XACB9116 is 8538.90.
- Who manufactures XACB9116?
- XACB9116 is a Schneider Electric product in the Control & Automation range.
- Is a datasheet available for XACB9116?
- Yes — the XACB9116 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XACB9116?
- The minimum order quantity is 1.
- Is XACB9116 available?
- Yes — XACB9116 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
