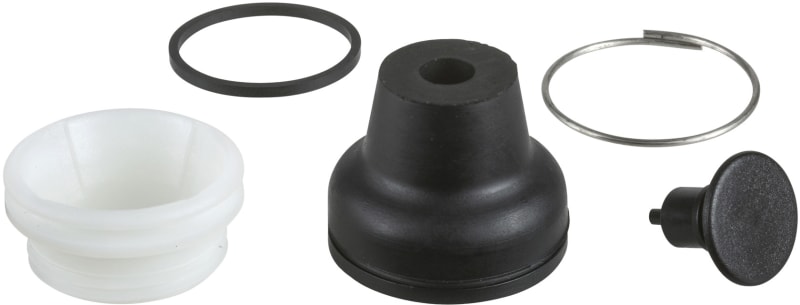

Neoprene-Button Black 16 MM Vandr

Schneider Electric XACB9212 Push-button Black Neoprene High.

Manufacturer part number (MPN)

XACB9212

EAN / GTIN

3389110640946

Sales unit

pcs

Package quantity

10 pcs

Range of product

Harmony XAC

Product or component type

Head for push-button

Component name

XACB

Marking

Unmarked

Operator additional information

Booted

Operating travel

16 mm

Cap/operator or lens colour

Black

Product compatibility

XESD1281; XESD1191; XESD1181; XESD1291

Sale per indivisible quantity

10

Product weight

0.005 kg

Standards

IEC 60947-5-1; CSA C22.2 No 14; IEC 60947-5-1

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…70 °C

Vibration resistance

15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

Shock resistance

100 gn conforming to IEC 60068-2-27

Electrical shock protection class

Class II conforming to IEC 61140

IP degree of protection

IP65 conforming to IEC 60529

IK degree of protection

IK08 conforming to IEC 62262

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.000 cm

Package 1 Width

18.000 cm

Package 1 Length

2.330 cm

Package 1 Weight

6.000 g

Unit Type of Package 2

BB1

Number of Units in Package 2

10

Package 2 Height

3.000 cm

Package 2 Width

18.000 cm

Package 2 Length

14.000 cm

Package 2 Weight

69.000 g

Unit Type of Package 3

S02

Number of Units in Package 3

200

Package 3 Height

15.000 cm

Package 3 Width

30.000 cm

Package 3 Length

40.000 cm

Package 3 Weight

1.706 kg

Country of origin

CZ

Warranty (in months)

18

Hole diameter

22.5 mm

Colour button

Black

Suitable for lighting

No

Number of command positions

1

Spring-return

Yes

Labelled

No

Type of button

High

Colour front ring

Black

Degree of protection (IP), front side

IP65

With protective cover

No

Material front ring

Plastic

With front ring

Yes

Construction type lens

Round

Switching function latching

No

HS Code

8538.90

• EAN 3389110640946
• SAP 1000025080
• Code 8499396
